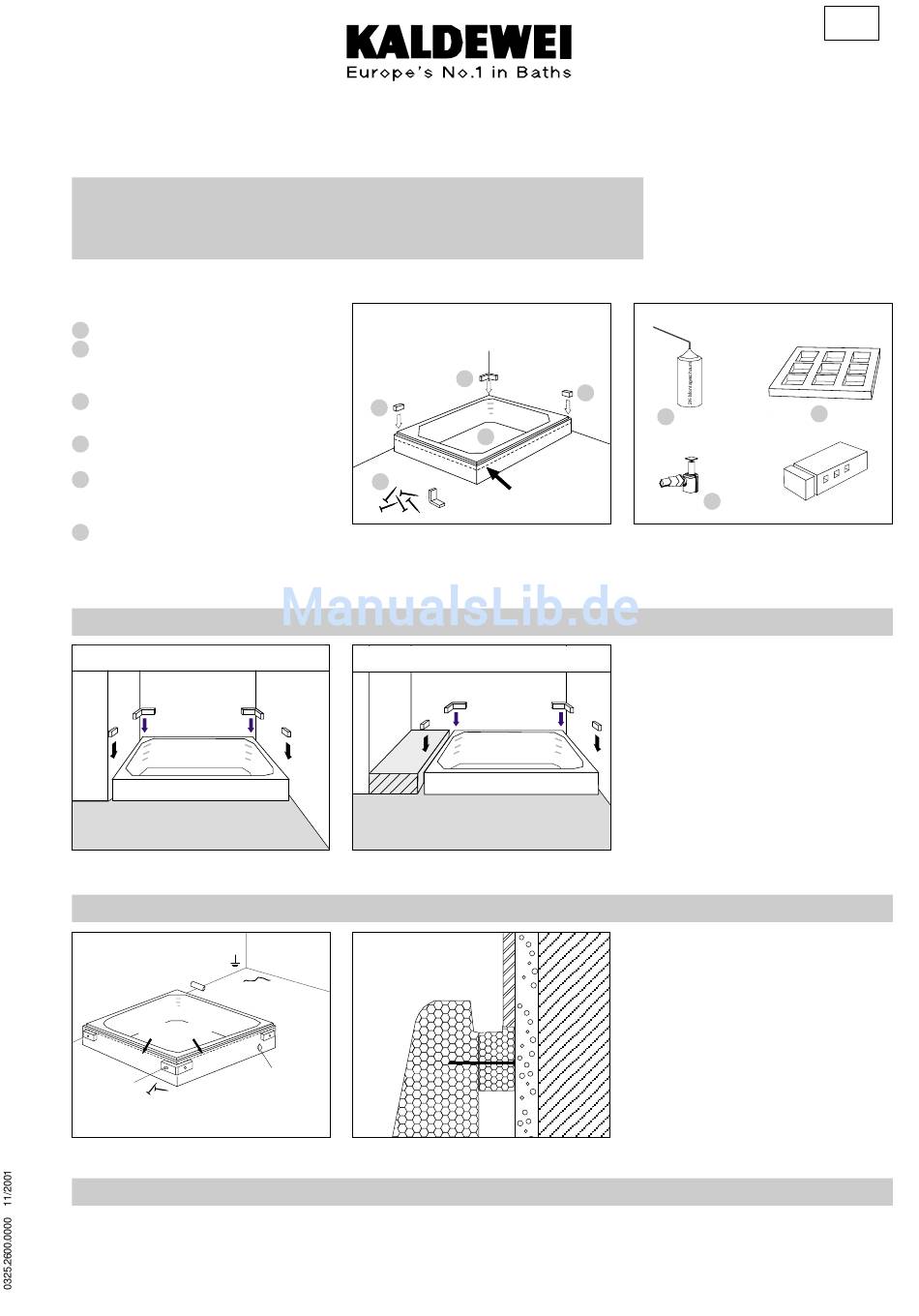

Shower tray support installation instructions
If you carry out installation according to these instructions you have the following advantages:
– subsequent shower tray installation (no danger of damage)
– basin replacement without costly tiling work
– optimum sound insulation (grade II sound insulation) and product liability
A.
SUMMARY
Included in delivery (standard set)
1 Shower tray support
2 Wall connection elements
(4 spacers)
Take out of inspection opening and separate
3 Fixing pins
Additional articles:
4 Standard hardening builder's foam
(e.g. illbruck, D-Bad Wildungen)
5 Filling pieces and subconstruction
for levelling (e.g. illbruck,
D-Bad Wildungen)
6 Drainage fitting (e.g.Viega „tempoplex"
for the lowest possible installation height)
B. INSTALLATION
1. PUTTING TOGETHER THE REQUIRED ELEMENTS FOR DIFFERENT INSTALLATION CASES
Fitting recess matching
4 wall connection elements
2A.PREPARATION FOR TILING
Marking lines
Fix with
pins
2B.PREPARATION WORK FOR INSTALLATION
Remove wall connection elements from the inspection opening and separate. Fix the wall connection elements you select
with the fixing pins to the corner points of the shower tray support following the marking lines (see A. Summary). Cut the
opening for drainage pipes and earthing cable to suit conditions on site. If recess is too wide, cut filling piece to suit and fix
in place with foam.
Standard installation
(corner installation)
2
3
Wider recess with filling piece
4 wall connection elements, filling piece
Opening for
drainage pipe
Thin bed tiling
2
2
1
Marking
lines
If thick bed tiling is necessary due to
conditions on-site, the shower tray support
must be moved back from the wall by the
necessary bed thickness.
GB
Additional articles
5
4
6
