TOOLPORT PVC Gebrauchsanweisung Seite 11

®
3

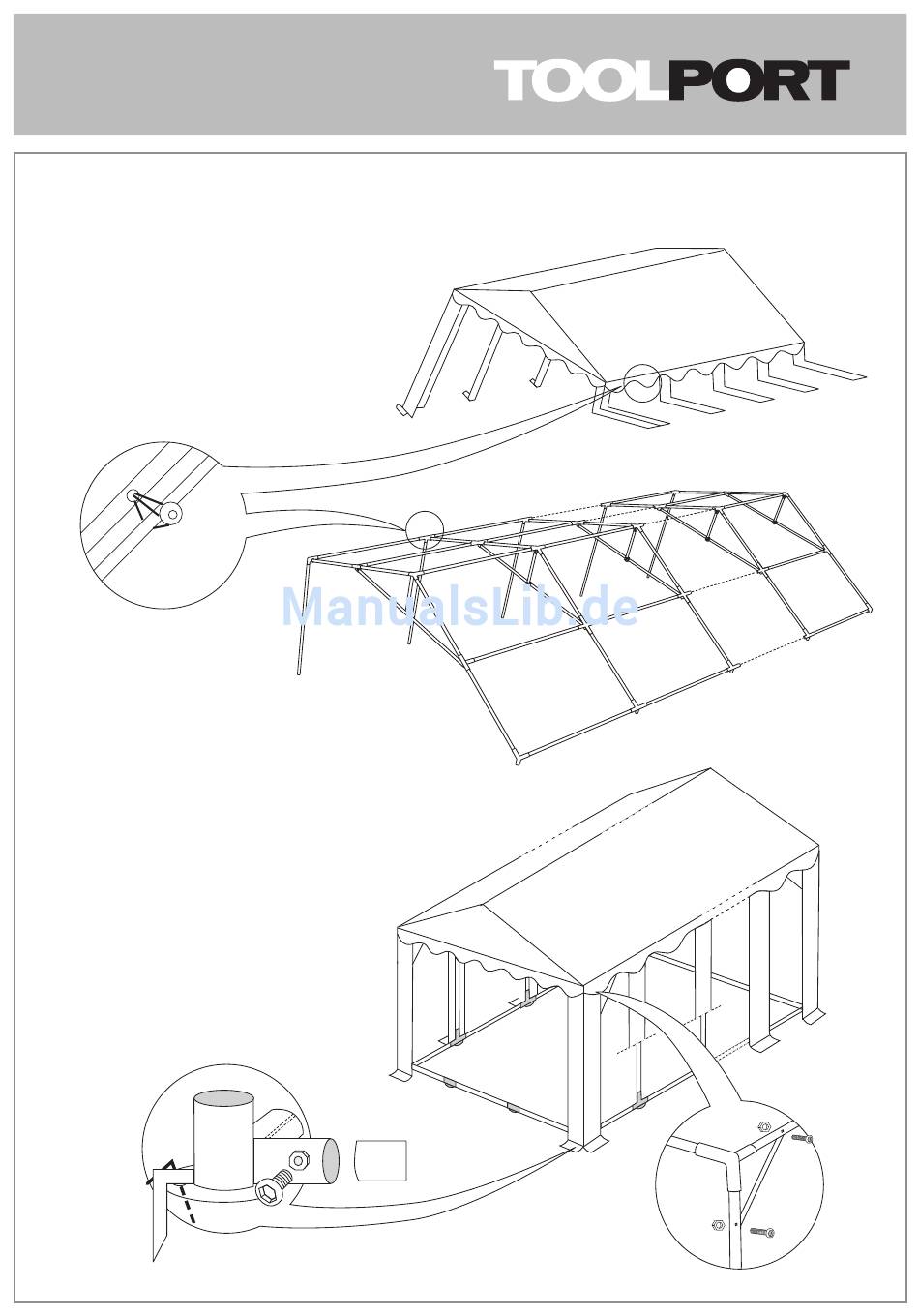

Lift one side of the tent frame and attach
the legs (7, 8). Attach the legs with part no.
8 to the outside in all four corners. Place
the roof (32) onto the frame and use the
bungees (29) to fasten it. Be sure not to put
too much tension on the bungees in order
not to make attaching the other side more
difficult.
29
8
7
7
7
8
4
Attach the legs on the other side and install
the feet (16, 17) at the bottom. Use the big
ground pegs (19) to fasten the feet to the
ground. Attach the side covers to the pipes
(7, 8) using hooks (31). Reinforce the side
frame by attaching the diagonal pipes (6) to
all four corners. Complete the bottom frame
with the required pipes (2 and 9) and
connector (18).
