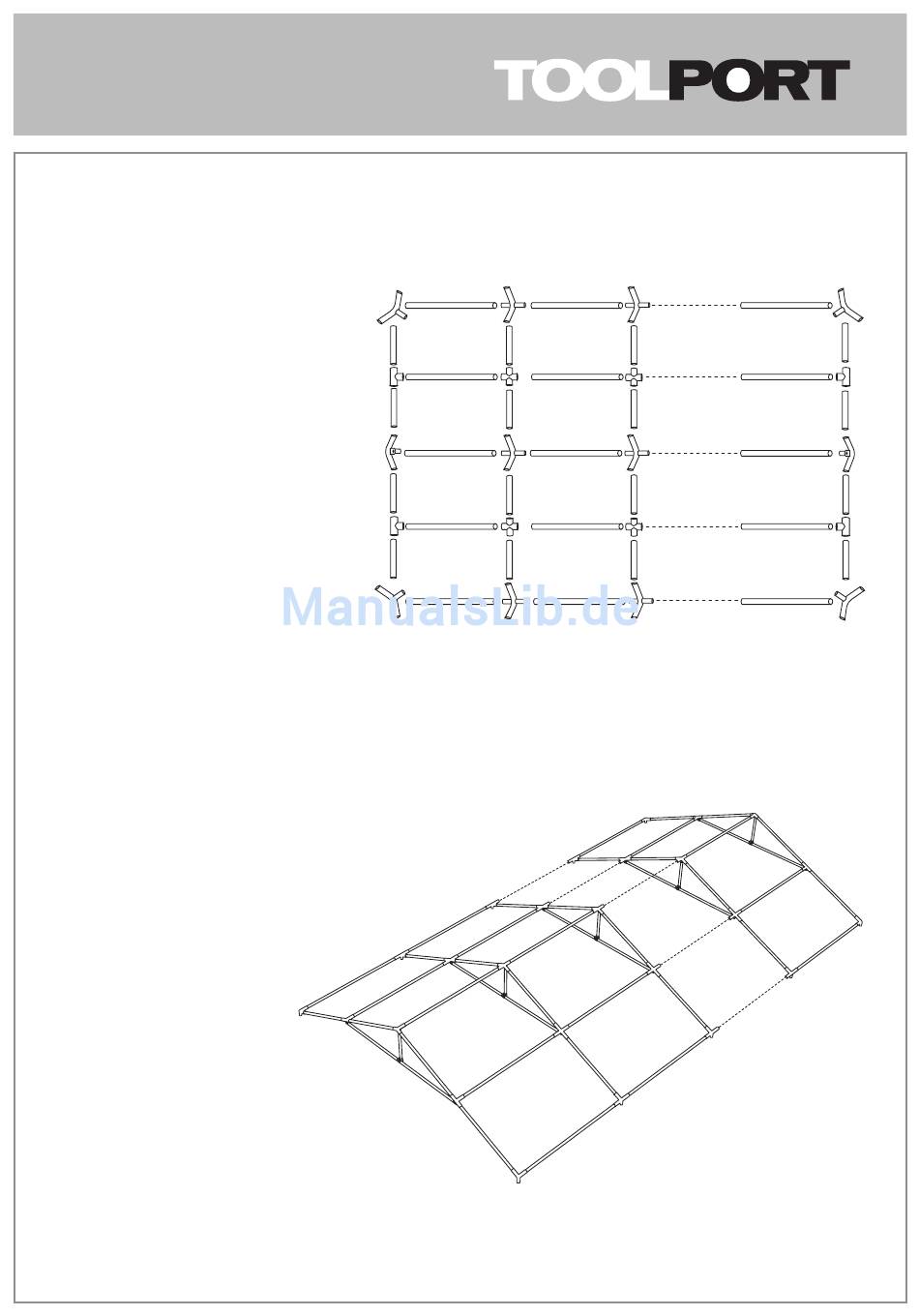

Select a flat surface for the tent. Unpack
the boxes and check if all listed parts
are included.
Assemble the roof frame by mounting
parts 10 to 15 on the pipes (parts 1, 2,
and 3). Use the screws to firmly attach
the parts.
2
Attach the reinforcement braces (parts
4 and 5) using screws (23) and wing
nuts (26).
