Maximus 6000

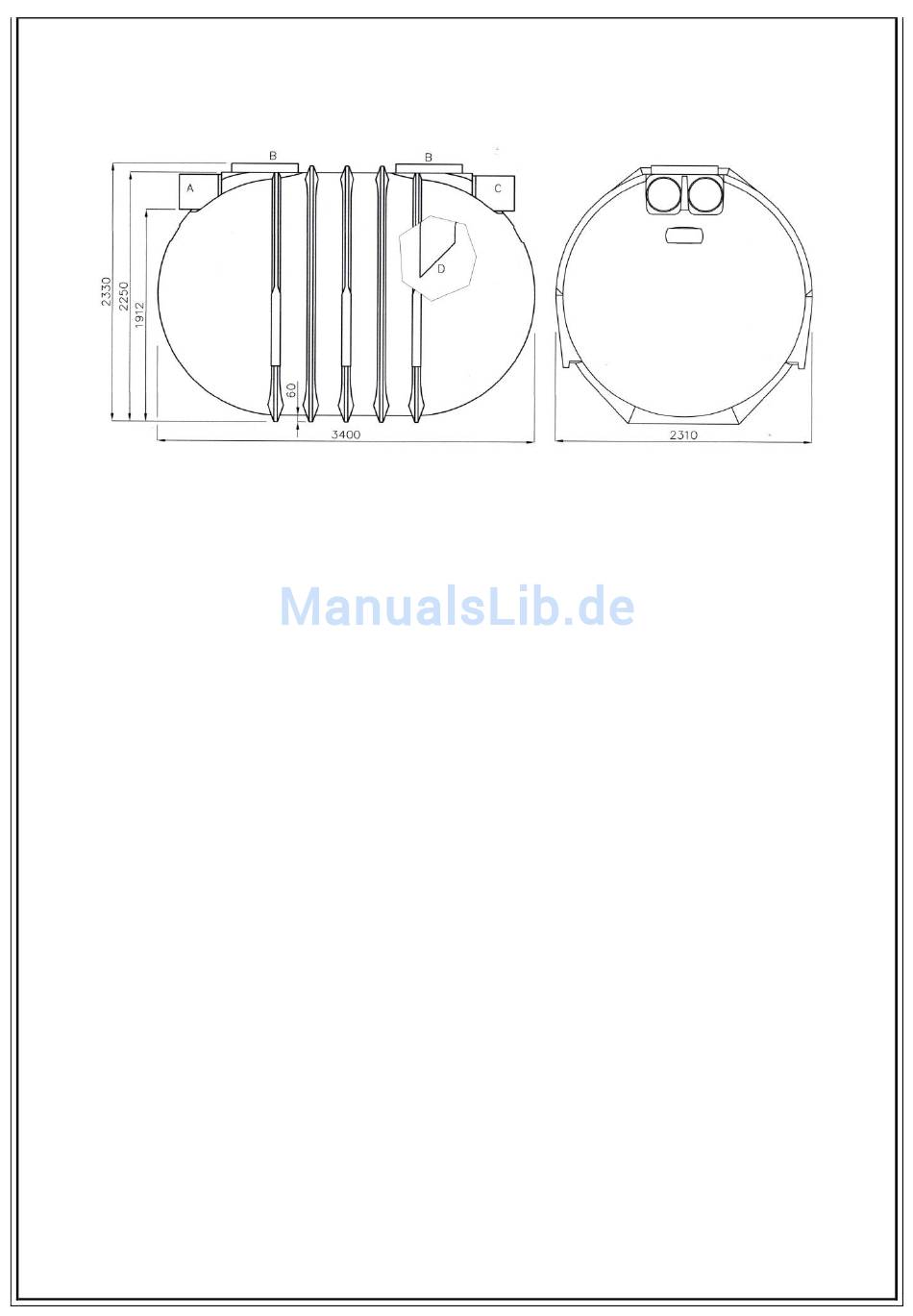

A. Inlet 2 x DN300 (12" ), can also have smaller dimensions depending on the
requirements.
B. Shaft connection nozzles Ø 600 suitable to the shaft extensions VS and the interim
ring
C. Outlet 2 x DN300 (12" ), can also have smaller dimensions depending on the
requirements.
D. Enterence of the discharge pipe: To prevent floating particles or, in the event of
strong rain, coarse particles escaping, a lock grate (mesh width 7 mm or as required)
can be fitted as an option.
Area of use
In the event of lightly soiled rain water, up to 6000 square metres of surface can be
connected. Depending on the maximum strength of the inlet, composition of its soiling
and the requirements of the downstream components (rain water usage, seepage, etc.),
more precise provisions may be necessary in individual cases.
Fittings
To optimise the depositing processes (see page 2 Function), the inlet pipe 2 x DN300
(12" ) is inserted deep and a barrier is installed on the floor.
The escape of suspended matter is hindered by the design of the outlet 2 x DN300 (12" )
as a dip pipe.
A repeat stirring of deposits in the event of strong rain is prevented by the great length
and depth of the filter body and a barrier in the floor area.
The contents of the technical documentation are a component of the guarantee terms
Planning and installation regulations are to be followed, as well as the accident prevention regulations.
