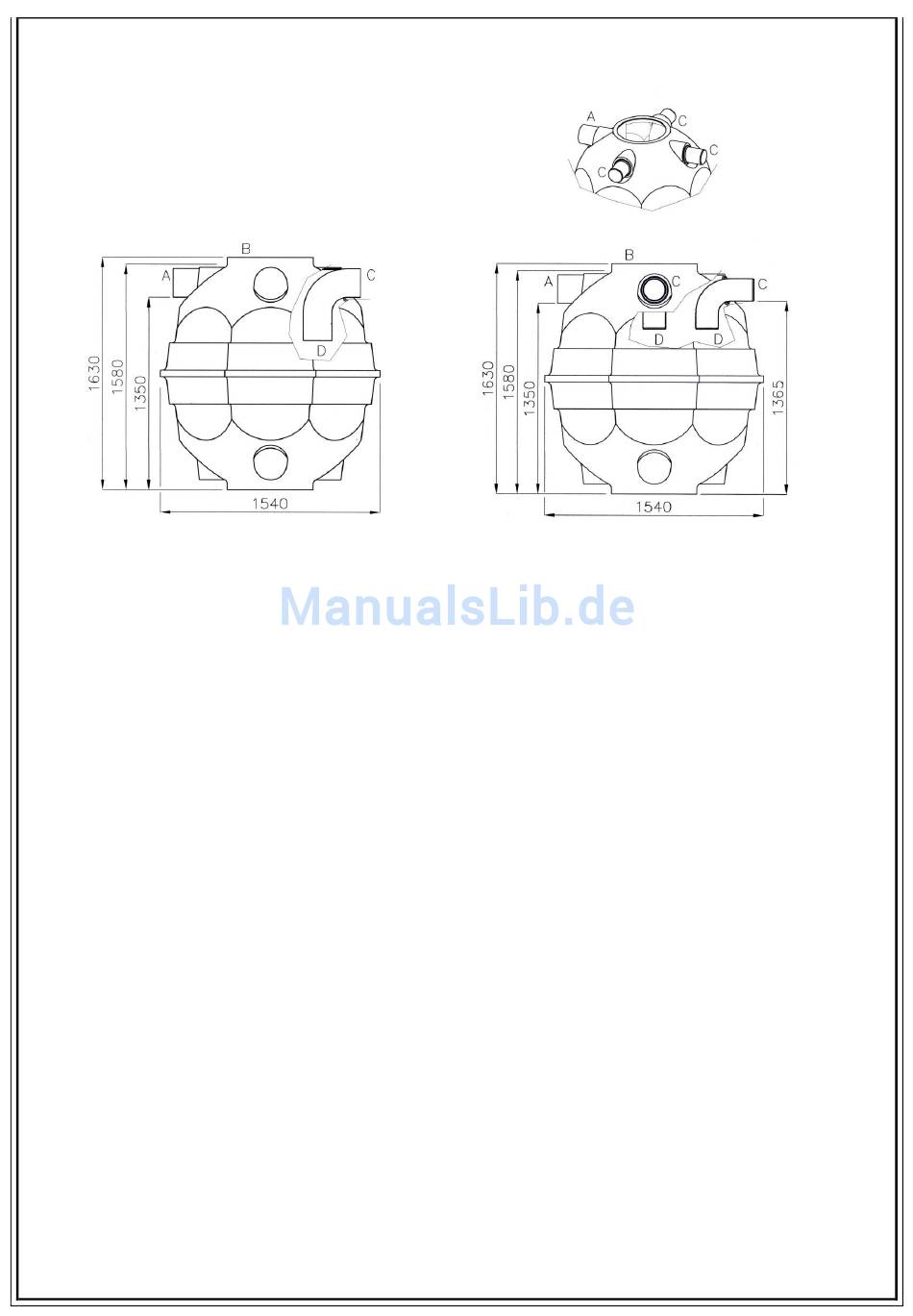

Maximus 1500 A and B
A. Inlet DN200 (8" )
B. Shaft connection opening Ø 600 suitable for the shaft extensions VS and the spacer
ring
C. Outlet: with Maximus version A: 1 x DN200 (8" ); with version B: 3 x DN150 (6" )
D. Enterence of the discharge pipe: To prevent floating particles or, in the event of
strong rain, coarse particles escaping, a lock grate (mesh width 7 mm or as required)
can be fitted as an option.
Area of use
In the event of lightly soiled rain water, up to 1500 square metres of surface can be
connected. Depending on the maximum strength of the inlet, composition of its soiling
and the requirements of the downstream components (rain water usage, seepage, etc.),
more precise provisions may be necessary in individual cases.
Fittings
To optimise the depositing processes (see page 2 Function), Maximus 1500 A and B are
fitted with an impact plate for flow deflection.
The escape of suspended particles is hindered by the design of the outlet DN200 (8" )
(version A) or the outlets DN150 (6" ) (version B) as a dip pipe.
A repeat stirring of deposits in the event of strong rain is prevented by the great depth
of the filter body.
