Maximus 3000

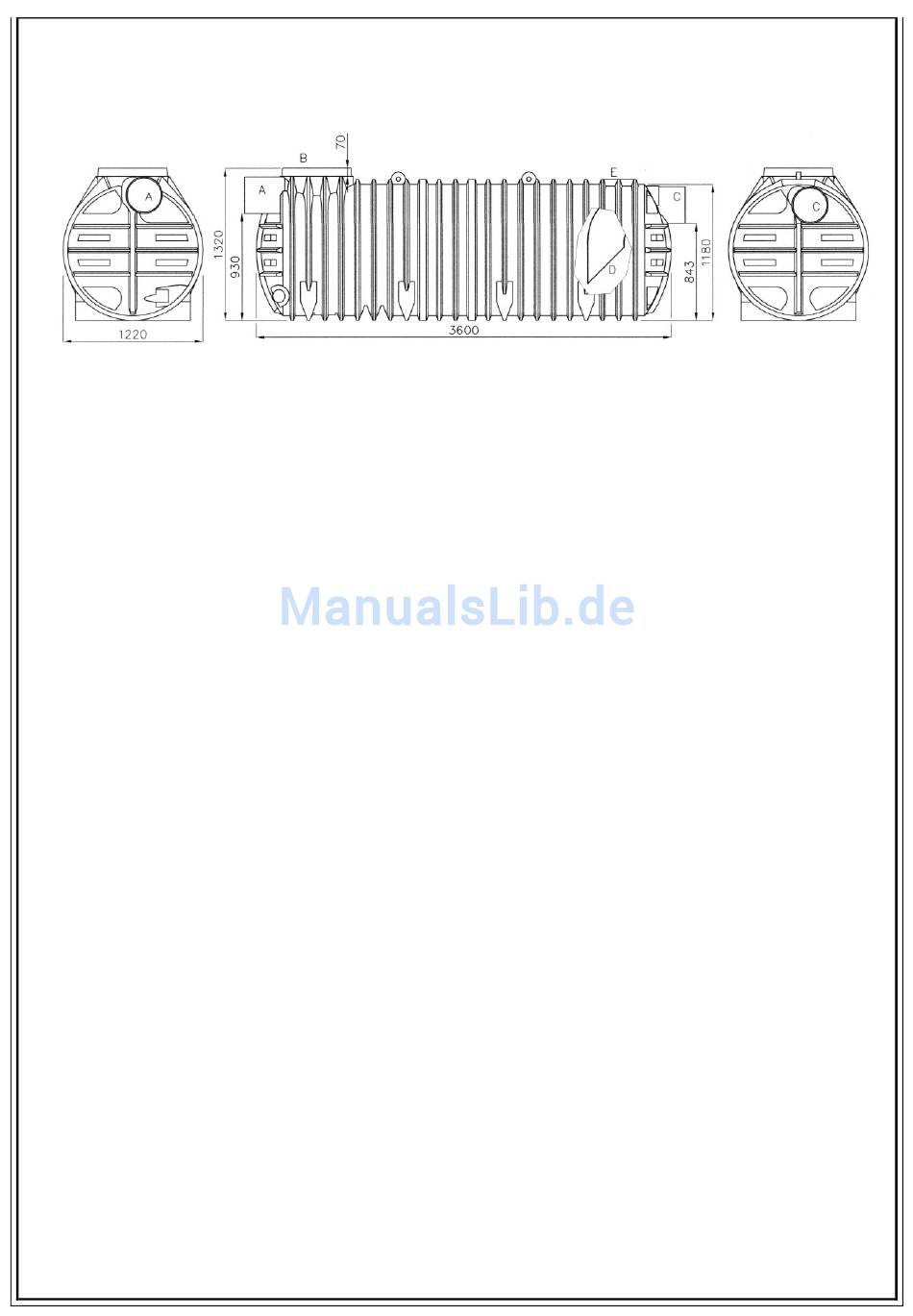

A. Inlet DN300 (12" ), can also have smaller dimensions depending on the requirements.
B. Shaft connection nozzles Ø 600 suitable to the shaft extensions VS and the spacer
ring
C. Outlet DN300 (12" ), can also have a smaller design depending on the requirements.
D. Enterence of the discharge pipe: To prevent floating particles or, in the event of
strong rain, coarse particles escaping, a lock grate (mesh width 7 mm or as required)
can be fitted as an option.
E. Horizontal connection surface, suitable for KG tubes up to DN250 (10" ) (control,
maintenance)
Area of use
In the event of lightly soiled rain water, up to 3000 square metres of surface can be
connected. Depending on the maximum strength of the inlet, composition of its soiling
and the requirements of the downstream components (rain water usage, seepage, etc.),
more precise provisions may be necessary in individual cases.
Fittings
To optimise the depositing processes (see page 2 Function), the inlet pipe is inserted
deep and a barrier is installed on the floor.
The escape of suspended matter is hindered by the design of the outlet DN300 (12" ) as a
dip pipe.
A repeat stirring of deposits in the event of strong rain is prevented by the great length
of the filter body and a barrier in the floor area.
