9 PWM signal

Connection of the PWM cable:
blue = PWM ground
brown = PWM (+)

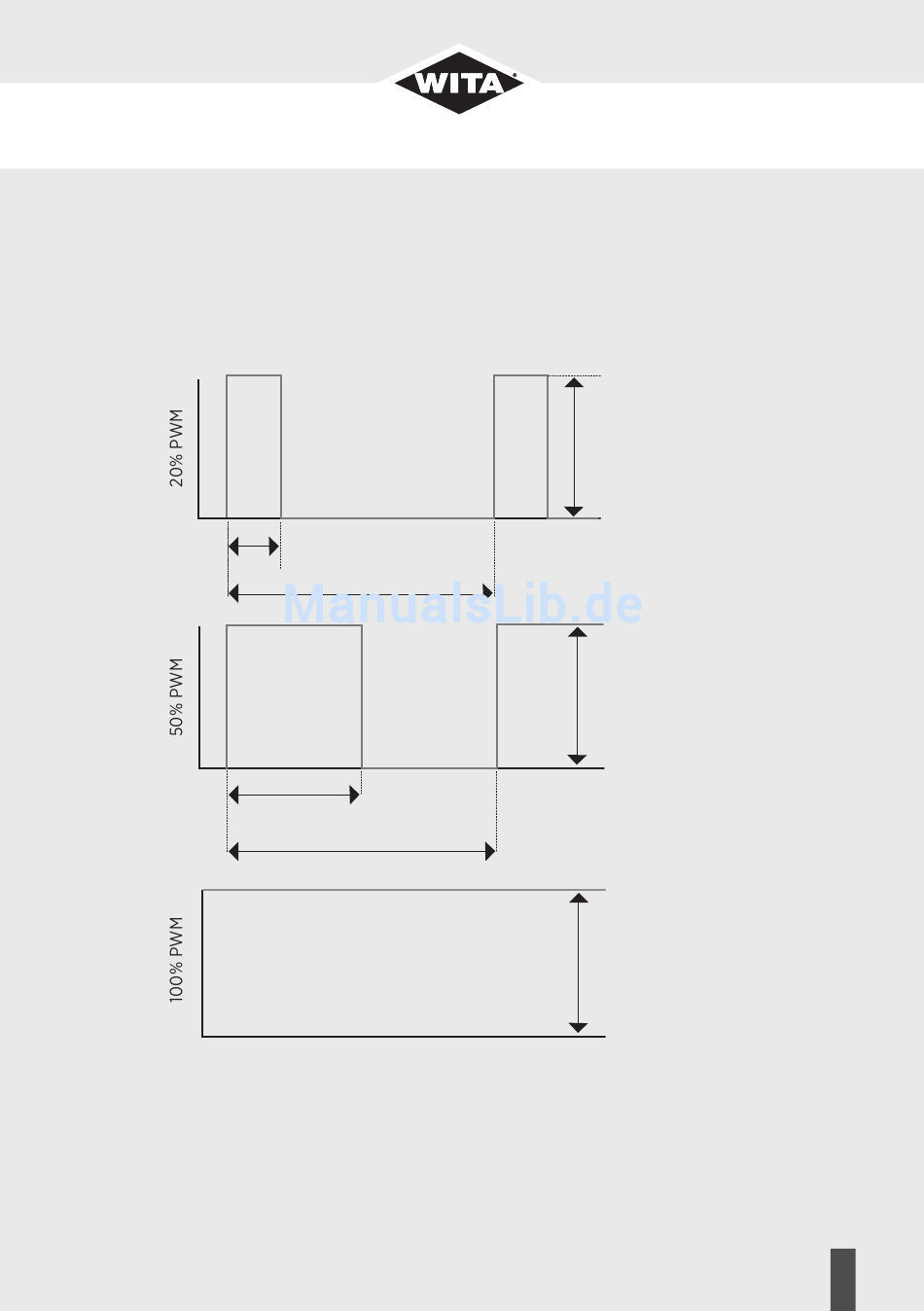

t1
0.2 ms
PWM: 20% - 100%, ~100Hz - 4kHz
T
1ms (1kHz)
t1
0.5 ms
T
1ms (1kHz)
Operating instrutions
4.5-10Vss
4.5-10Vss
4.5-10V DC
