1. and 4. 2.
The window material is UV-absorbing.
Warning: You should always use sun protection
for your child during outdoor activities.
Assembled Front view

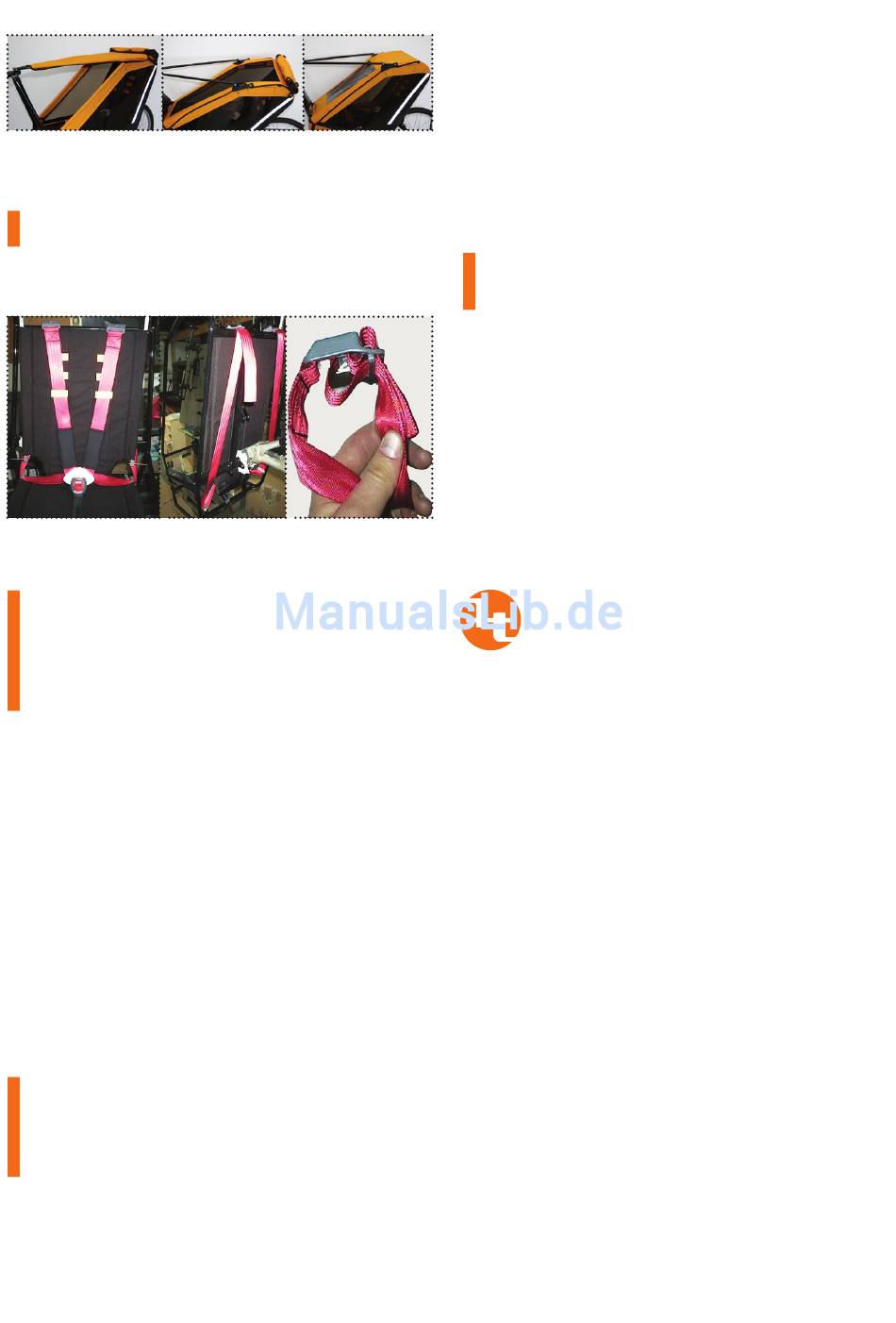

ASSEMBLY SAFETY BELT
Warning: If you must reassemble the belts for
height adjustment, make sure that you assemble
the belts accurately as shown. Otherwise the
safety is not ensured. We recommend to change
one side after the other so that you always have
a sample.

MAINTENANCE

Depending on your usage scenario, examine the
wearing parts in regular intervals. Parts, which
should be examined before each trip for wear and
function:
➔ air pressure of the wheel
➔ spoke tension and rotation of the wheel
➔ function of the shock
➔ correct & secure fit of the wheel
➔ make sure the play of the axle and the wheel
is adjusted correctly
➔ If required, adjust the safety nut with a 11mm
& 19mm fork wrench
Warning: Always, especially after readjusting,
make sure the wheel engages completely with
the swing arm. The end of the axle needs to be
flat and the center pin of the axle fully retracted
inside the axle.
3.
Rear view
TUNING SUSPENSION
If you tune the suspension, make sure that you
adjust it softly enough. If you test the suspension,
remember to produce light pressure from above
with both hands on the Singletrailer, which corre-
sponds to the weight of your child. With this pres-
sure the suspension should work already really
soft. Loaded with your child alone the suspension
should use about 30-35% of travel.
Warning: Do not press on the suspension, if
the stand is downward folded, otherwise it will
be loaded with force, it is not designed for.
In the air chamber a different air pressure must
be adjusted depending upon the child's weight.
The damping (by turning the respective adjuster)
should always be adjusted as weakly as possible,
so that the shock releases quickly. If you adjust
the suspension travel (road or off-road position)
note that shock air pressure and damping also
possibly must be adapted.
Please also read the separate manual for the
shock.
Please register your product under
www.tout-terrain.de. This will validate your
warranty, and with that, your safety.
