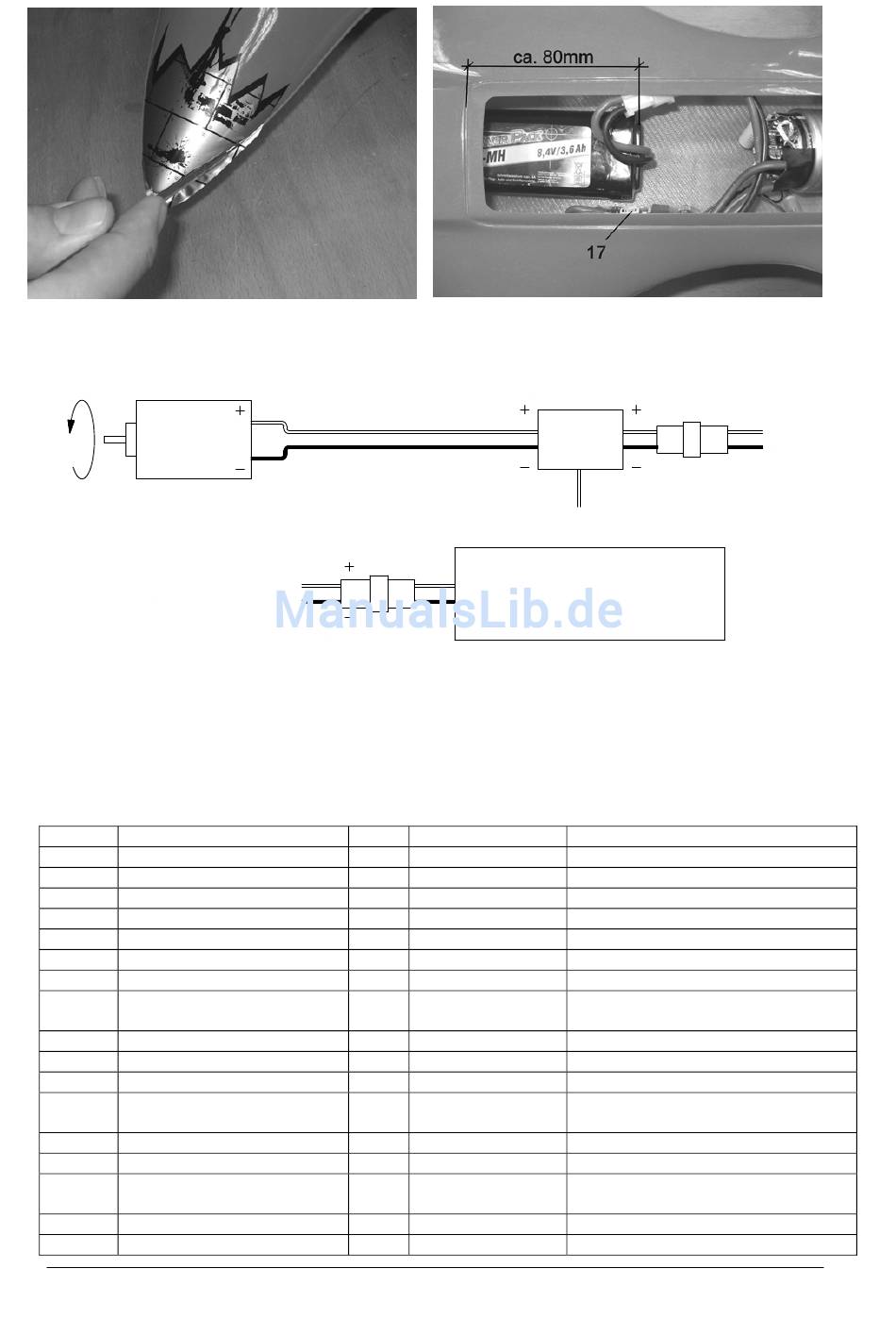

Wiring diagram
Motor
Speed controller
Maiden run
Give all the batteries a full charge, and carefully test the model's working systems in turn. IMPORTANT:
ensure that the hatch cover is watertight. You are now ready for the boat's maiden run. Take your time to
become accustomed to the model's handling characteristics. The boat is very fast, and therefore requires
a suitably large area of water. Don't let the boat get too far away from the bank.
All of us at Graupner hope you have many hours of pleasure running your SPACEBIRD.
Parts List
Part No. Description
1
Boatstand, front section
2
Boatstand, rear section
3
Boatstand, side panel
4
Servo mount, front
5
Servo mount, rear
6
Servo mount, base plate
7
Rudder servo
8
Swivel pushrod connector
9
Hull
10
Hatch cover
11
Rubber bellows
12
Tiller
13
Rudder
14
Motor
15
Suppressor capacitor
16
Speed controller
17
Water-cooling coil
GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Keine Haftung für Druckfehler. Technische Änderungen vorbehalten! Liability for printing errors excluded. We reserve the right to introduce modifications. Sous réserve de
modifications! Nous ne sommes pas responsables d'éventuelles erreurs d'impression!
G2 connector
No.
Material
1
Wood
1
Wood
2
Wood
1
Wood
1
Wood
1
Wood
1
Ready made
2
Ready made
1
GRP
1
GRP
1
Rubber
1
Various
1
Plastic
1
Ready made
1
Ready made
1
Ready made
1
Ready made
#0059017
Speed controller
G2 connector
To receiver
Drive accu
Dimensions and thickness in mm
4 mm plywood
4 mm plywood
4 mm plywood
4 mm plywood
4 mm plywood
4 mm plywood
Order No. 3899
Consisting of metal barrel, plastic
nut and M3 grubscrew
Ready made
Ready made
Ready made
Plastic tiller with metal collet and M3
socket-head screw
Ready made
See Accessories
See Accessories; not required for
brushless motor
See Accessories
Aluminium tube, 4 / 3 mm Ø, coiled
Accu
16
06/2008
