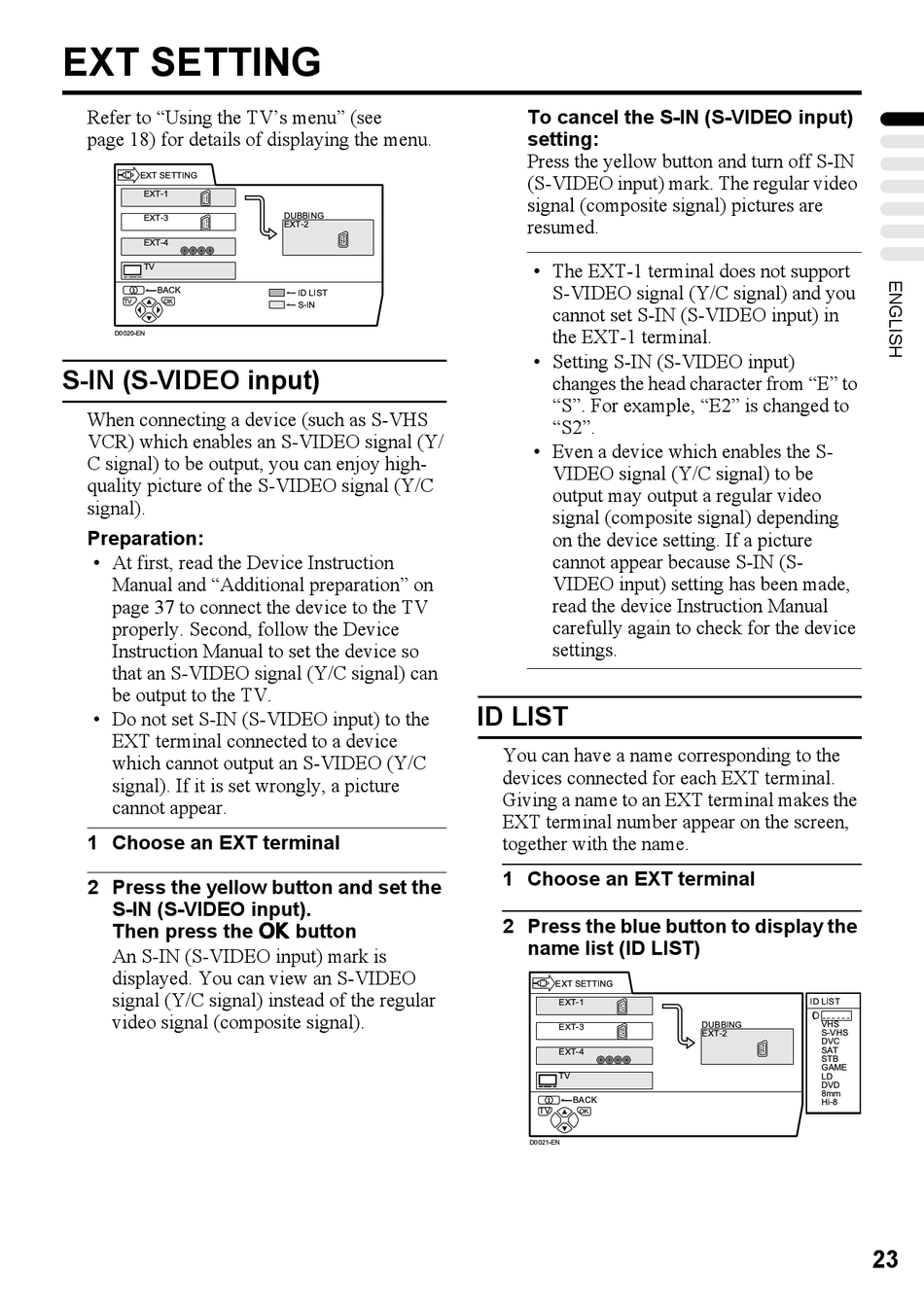

EXT SETTING

Refer to "Using the TV's menu" (see
page 18) for details of displaying the menu.
EXT SETTING
EXT-1
EXT-3
EXT-4
TV
BACK
TV OK
D0020-EN

S-IN (S-VIDEO input)

When connecting a device (such as S-VHS
VCR) which enables an S-VIDEO signal (Y/
C signal) to be output, you can enjoy high-
quality picture of the S-VIDEO signal (Y/C
signal).
Preparation:
• At first, read the Device Instruction
Manual and "Additional preparation" on
page 37 to connect the device to the TV
properly. Second, follow the Device
Instruction Manual to set the device so
that an S-VIDEO signal (Y/C signal) can
be output to the TV.
• Do not set S-IN (S-VIDEO input) to the
EXT terminal connected to a device
which cannot output an S-VIDEO (Y/C
signal). If it is set wrongly, a picture
cannot appear.
1 Choose an EXT terminal
2 Press the yellow button and set the
S-IN (S-VIDEO input).
Then press the a
An S-IN (S-VIDEO input) mark is
displayed. You can view an S-VIDEO
signal (Y/C signal) instead of the regular
video signal (composite signal).
DUBBING
EXT-2

ID LIST

S-IN
a button a a
To cancel the S-IN (S-VIDEO input)
setting:
Press the yellow button and turn off S-IN
(S-VIDEO input) mark. The regular video
signal (composite signal) pictures are
resumed.
• The EXT-1 terminal does not support
S-VIDEO signal (Y/C signal) and you
cannot set S-IN (S-VIDEO input) in
the EXT-1 terminal.
• Setting S-IN (S-VIDEO input)
changes the head character from "E" to
"S". For example, "E2" is changed to
"S2".
• Even a device which enables the S-
VIDEO signal (Y/C signal) to be
output may output a regular video
signal (composite signal) depending
on the device setting. If a picture
cannot appear because S-IN (S-
VIDEO input) setting has been made,
read the device Instruction Manual
carefully again to check for the device
settings.
ID LIST
You can have a name corresponding to the
devices connected for each EXT terminal.
Giving a name to an EXT terminal makes the
EXT terminal number appear on the screen,
together with the name.
1 Choose an EXT terminal
2 Press the blue button to display the
name list (ID LIST)
EXT SETTING
EXT-1
EXT-3
EXT-4
TV
BACK
TV
OK
D0021-EN
ID LIST
VHS
DUBBING
S-VHS
EXT-2
DVC
SAT
STB
GAME
LD
DVD
8mm
Hi-8
23
