INSTALLATION
The appliance must be installed by a
WARNING
qualified technician who is fully aware of
current safety and installation
regulations
The manufacturer declines all liability for injury to persons or animals and for
damage to property resulting from failure to observe the regulations provided in
this chapter.
ELECTRICAL CONNECTION
IMPORTANT:
•
electrical connection must be made before connecting the oven to the
electricity supply;
•
the appliance must be earthed;
•
for electrical connection, refer exclusively to the instructions given in the
following paragraph, ignoring the connections indicated on the underside
of the hob.

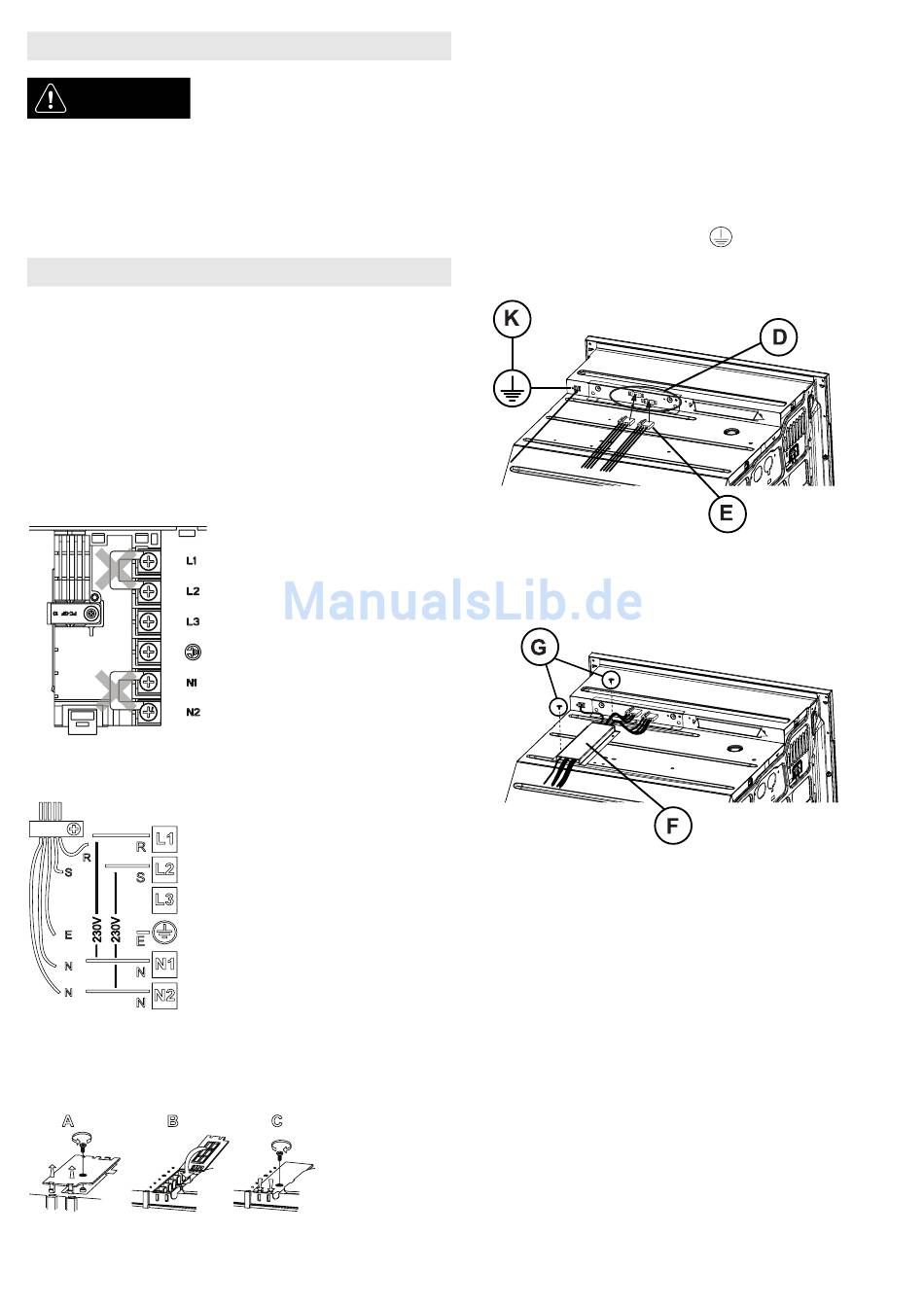

Connecting the cable to
the terminal block
1. Remove the terminal block screws and the jumpers.
2. Connect the wires to the terminal block as shown in the wiring diagram
below.
Legend:
-
-
-
-
-
3. Secure the cable with the cable clamp next to the protective black sheath.
4. Remove the terminal block cover (A), undoing the screw and inserting the
cover in the terminal block hinge (B). Close the cover (C) and screw it on the
terminal block.
R = brown
S = brown
E = yellow/green
N = blue
N = blue
Connection to the oven
•
Before connecting the oven to the power supply, make sure that the
cooktop is among the ones listed in the cooktop/oven pairing product sheet
provided.
•
Connect the hob connectors (E) to the oven connectors (D), matching the
colours and the alignment of the housing guides visible on the top of the
connectors.
•
Then make the connection by pushing the connectors all the way in, making
sure that the tongue clicks into place.
•
Unscrew the nut of the earth screw (K)
and insert the yellow/green earth wire, leaving the washer in place. Screw
the nut back onto the screw and tighten it as far as it will go.
•
Group the previously connected cables together and cover them with the
metal cover (F), taking care that the cables are not trapped under the cover.
•
Tighten the two screws (G) to secure the metal cover provided with the
oven.
GB10
on the top cover of the oven
