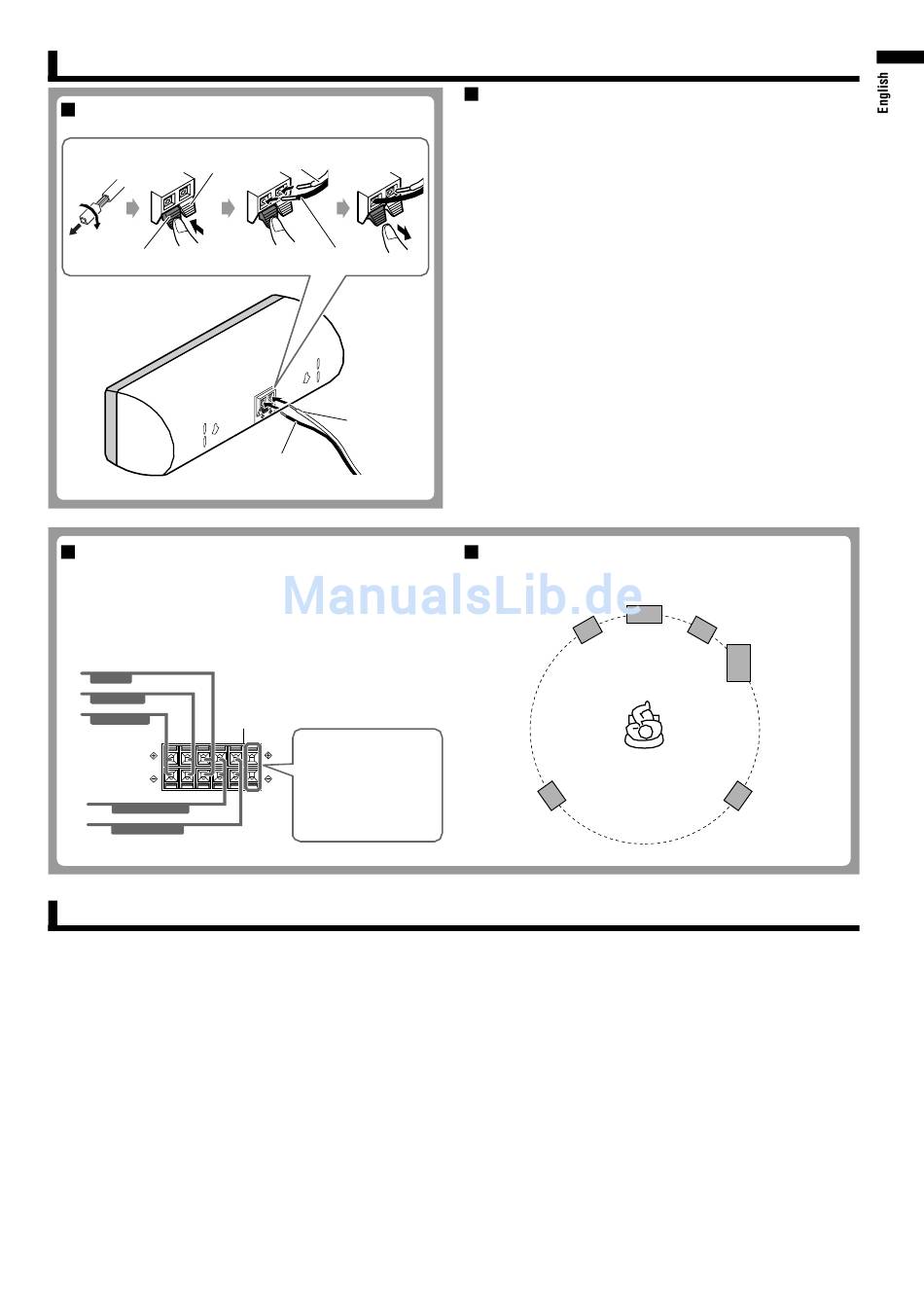

Connections

Connecting the Center speaker
Red
ª
·
Black
Typical connection method to an amplifier
Connect the speakers to the speaker terminals of the amplifier
with the speaker cords by referring to the diagram below.
• Make sure to match the polarity (ª and ·) when
connecting the speaker cords.
• The diagram below is an example of a typical connection.
CENTER
FRONT LEFT
FRONT RIGHT
FRONT CENTER SURROUND
RIGHT LEFT RIGHT
SURROUND RIGHT
SURROUND LEFT

Specifications

SP-XF51F (Front speakers)
Type:
Speaker unit:
Frequency range:
Impedance:
Power handling capacity:
Sound pressure level:
Dimensions: 250 mm (W) x 1 104 mm (H) x 250 mm (D)
Mass:
SP-XF51S (Surround speakers)
Type:
Speaker unit:
Frequency range:
Impedance:
Power handling capacity:
Sound pressure level:
Dimensions: 250 mm (W) x 1 104 mm (H) x 250 mm (D)
Mass:
White
ª
·
Black
White
Black
SURROUND
SPEAKERS
BACK
LEFT
Recommended to use
SP-SB101—optionally
purchased.
2-way 3-speaker Bass reflex type
(Magnetically-shielded type)
5.5 cm cone (x 2), 1.5 cm dome
90 Hz to 20 000 Hz
100 W
79 dB/W•m
2.6 kg each
2-way 3-speaker Bass reflex type
5.5 cm cone (x 2), 1.5 cm dome
90 Hz to 20 000 Hz
100 W
78 dB/W•m
2.5 kg each
Connecting the speaker system to the amplifier
Before connecting:
• Turn off the power to the amplifier before connecting the
speaker system; otherwise, the speakers may be damaged.
• The impedance of each speaker is 6 Ω.
If this does not match with the speaker impedance range indicated
on the amplifier, you cannot connect this system to the amplifier.
• The maximum power handling capacity of the SP-XF51 is
100 W. Excessive input will result in abnormal noise and
possible damage.
• Be sure to turn down the volume level on the amplifier to prevent
unwanted noise before performing following operations:
– Turning on or off other components
– Operating the amplifier
– Tuning FM stations
– Fast-forwarding a tape
– Continuously reproducing high frequency oscillation or high
pitch electronic sounds
– Connecting or disconnecting a microphone
• When using a microphone, do not aim it at the speakers or use
it near the speakers; otherwise, the howling which occurs may
damage the speakers.
• Before replacing the cartridge, always turn off the power both
to the amplifier and to the turntable; otherwise, the clicking
noise may damage the speakers.
Speaker layout
Front left
speaker
Surround left
speaker
SP-XF51C (Center speaker)
Type:
Speaker unit:
Frequency range:
6 Ω
Impedance:
Power handling capacity:
Sound pressure level:
Dimensions:
Mass:
6 Ω
– 5 –
Center
speaker
Front right
speaker
Subwoofer
Surround right
speaker
2-way 3-speaker Bass reflex type
(Magnetically-shielded type)
5.5 cm cone (x 2), 1.5 cm dome
90 Hz to 20 000 Hz
81 dB/W•m
320 mm (W) x 75 mm (H) x 92 mm (D)
6 Ω
100 W
0.9 kg
