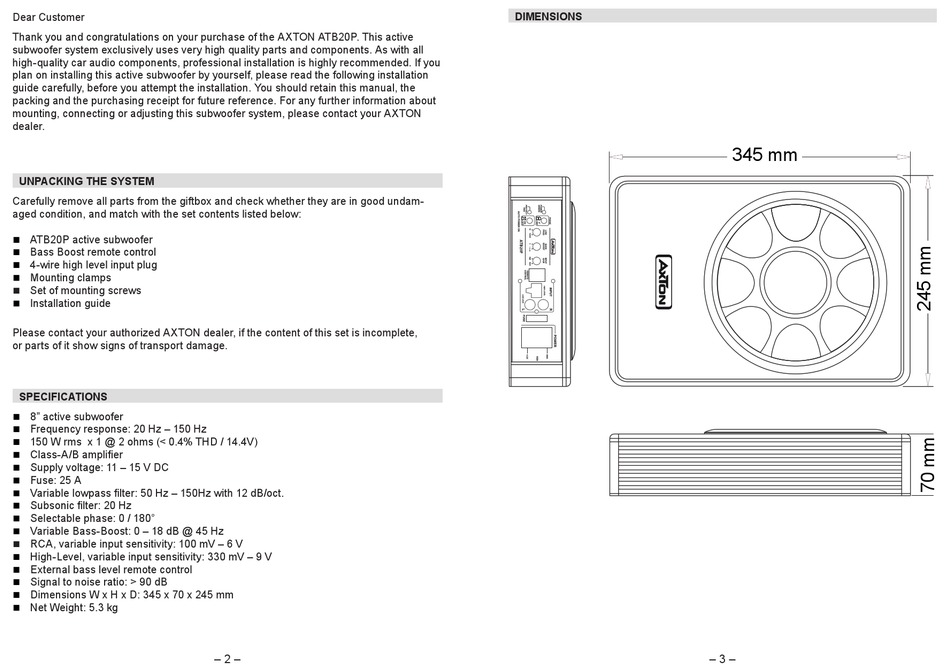

Dear Customer
Thank you and congratulations on your purchase of the AXTON ATB20P. This active
subwoofer system exclusively uses very high quality parts and components. As with all
high-quality car audio components, professional installation is highly recommended. If you
plan on installing this active subwoofer by yourself, please read the following installation
guide carefully, before you attempt the installation. You should retain this manual, the
packing and the purchasing receipt for future reference. For any further information about
mounting, connecting or adjusting this subwoofer system, please contact your AXTON
dealer.

UNPACKING THE SYSTEM

Carefully remove all parts from the giftbox and check whether they are in good undam-
aged condition, and match with the set contents listed below:
ATB20P active subwoofer
n
Bass Boost remote control
n
4-wire high level input plug
n
Mounting clamps
n
Set of mounting screws
n
Installation guide
n
Please contact your authorized AXTON dealer, if the content of this set is incomplete,
or parts of it show signs of transport damage.

SPECIFICATIONS

8" active subwoofer
n
Frequency response: 20 Hz – 150 Hz
n
150 W rms x 1 @ 2 ohms (< 0.4% THD / 14.4V)
n
Class-A/B amplifier
n
Supply voltage: 11 – 15 V DC
n
Fuse: 25 A
n
Variable lowpass filter: 50 Hz – 150Hz with 12 dB/oct.
n
Subsonic filter: 20 Hz
n
Selectable phase: 0 / 180°
n
Variable Bass-Boost: 0 – 18 dB @ 45 Hz
n
RCA, variable input sensitivity: 100 mV – 6 V
n
High-Level, variable input sensitivity: 330 mV – 9 V
n
External bass level remote control
n
Signal to noise ratio: > 90 dB
n
Dimensions W x H x D: 345 x 70 x 245 mm
n
Net Weight: 5.3 kg
n
– 2 –
DIMENSIONS
345 mm
– 3 –
