O P E R A T I N G I N S T R U C T I O N S
Wireless inbuilt switch set "RSL3"
Item no. 640387
Intended use
The set contains a wireless wall mounted switch (inbuilt switch) and a wall-mounted radio transmitter. A
consumer connected to the inbuilt switch can be turned on and off remotely via the wall-mounted radio
transmitter (or via another radio remote switch in the RSL system).
The wireless inbuilt switch may only be used on the mains voltage (230 V/AC, 50 Hz). A maximum consumer
load of 2000 W (Ohm resistive load) or 600 W (inductive load) can be connected and switched.
The wireless inbuilt switch is powered by a 12 V battery type "23 A".
Any other use than that described above may damage the product. Moreover, this may give rise to hazards
such as short-circuiting, fire, electric shock, etc. No part of the product may be modified or converted!
Always observe the safety instructions included in these operating instructions. Please read the operating
instructions carefully and keep them.
This product complies with the applicable National and European requirements. All names of companies and
products are the trademarks of the respective owner. All rights reserved.
Package contents
• Wireless inbuilt switch
• wall-mounted radio transmitter
• 12 V battery (Type "23 A")
• Operating Instructions
Explanation of the symbols
This symbol indicates a health hazard, e.g. electric shock.
The exclamation mark indicates specific risks associated with handling, function and use.
The "Hand" symbol indicates special tips and operating information.
Safety instructions
Read the complete operating manual carefully before using the product as it contains
important information about the correct installation and operation.
The warranty will be void in the event of damage caused by failure to observe these safety
instructions! We do not assume any liability for any consequential damage!
Nor do we assume any liability for material and personal damage caused by improper use
or non-compliance with the safety instructions! The warranty will be void in such cases!
Caution!
The product may only be installed by a qualified technician (e.g. electrician) who is familiar
with the relevant regulations (e.g. VDE, German electrical wiring regulations)!
Improper work, carried out on the mains voltage, endangers not only your own life but
also the life of others! If you do not have the expertise required for the installation, do not
install it yourself but entrust a qualified electrician.
• The unauthorised conversion and/or modification of the product is not allowed for safety and
approval reasons (CE). Never dismantle the product!
• The product is not a toy and must be kept out of the reach of children! There is a risk of a lethal
electric shock!
• Do not use this product in hospitals or medical institutions. Although RSL System transmitters
only emit relatively weak radio signals, these may lead to the malfunctioning of life-supporting
systems. The same may possibly be the case in other areas.
• The wireless inbuilt switch may only be operated on the mains voltage (230 V/AC, 50 Hz). The
wall-mounted radio transmitter may only be operated using a 12 V battery of type "23 A".
• Only carry out the installation when all the mains cables to the inbuilt wireless switch are
disconnected from the mains voltage. Otherwise, there is a risk of a life-threatening electric
shock!
• The product may only be installed and used in dry indoor spaces, it must not get damp or wet.
Never touch the wireless inbuilt switch with wet or damp hands! There is a risk of a life-
threatening electric shock!
• An all-pole disconnection from the mains voltage (such as a surge protector) must be provided
as part of the wiring set-up.
• Only use the product when it is securely installed and steady. Install the wireless inbuilt switch,
for example, in a suitable flush or wall mounted contact box. Install the wall-mounted radio
transmitter, for example, on a wall or furniture surface.
• Do not use this product in rooms or under adverse ambient conditions where combustible
gases, vapours or dust are or may be present! There is a risk of explosion!
www.conrad.com
Version 03/15
Battery notes
• Batteries should be kept out of the reach of children.
• Do not leave batteries lying around in the open; there is a risk of them being swallowed by children or
domestic animals. If swallowed, consult a doctor immediately.
• Leaking or damaged batteries can lead to caustic burning of the skin. Therefore, use suitable protective
gloves.
• Batteries/rechargeable batteries must not be short-circuited, opened or thrown into a fire. There is a risk of
explosion!
• Do not recharge normal, non-rechargeable batteries, risk of explosion!
• If it is not to be used for a while (e.g. storage), remove the battery from the wall-mounted radio transmit-
ter. Old batteries may leak and cause damage to the product, which will lead to the loss of the warranty/
guarantee.
• Please pay attention to the correct polarity (plus/+ and minus/-) when inserting the battery.
• For the correct disposal of batteries, please read the chapter "Disposal".
Installation and connection
a) Wall-mounted radio transmitter

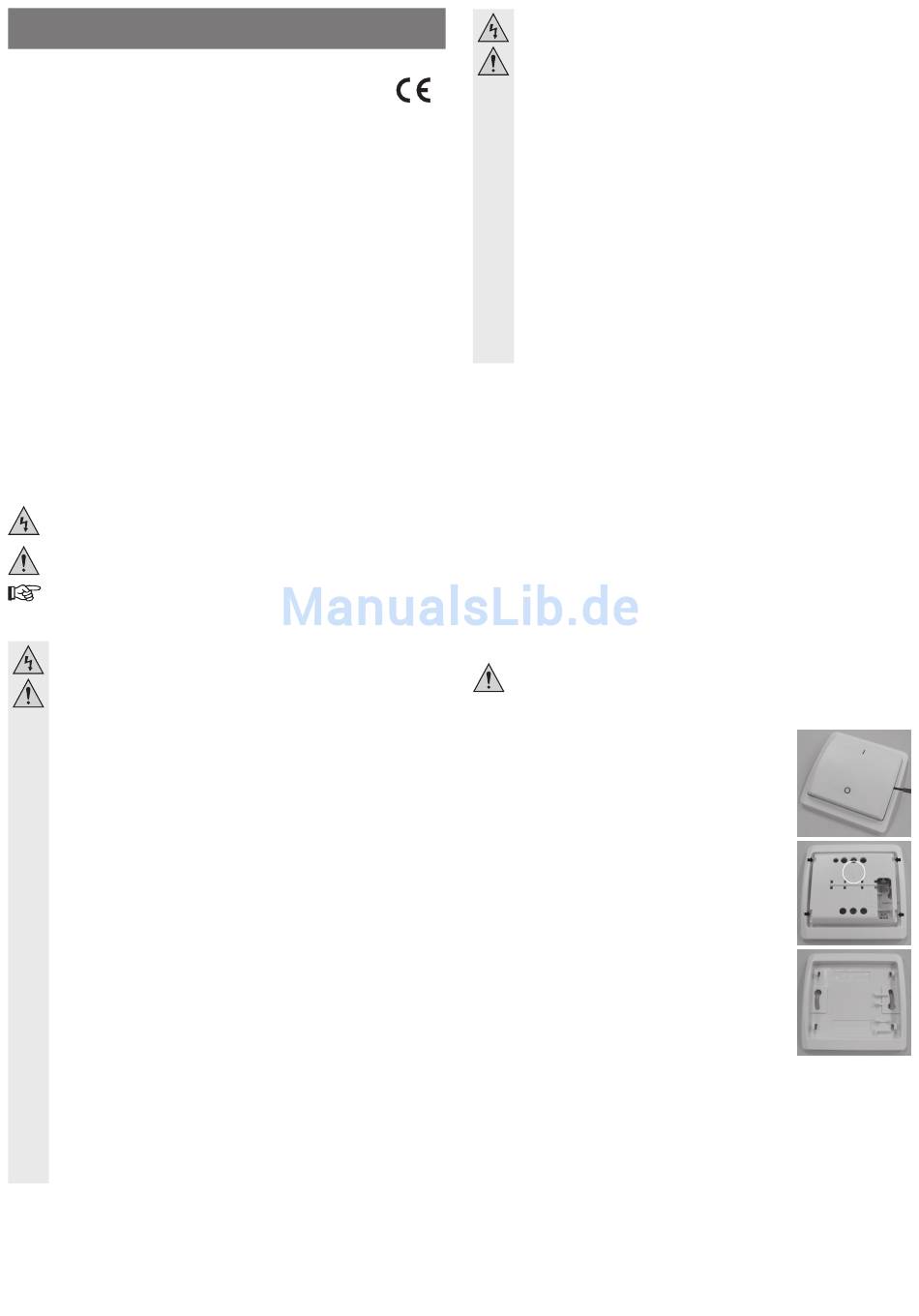

• Use a flat screwdriver to carefully lever the rocker switch on the wall-mounted
radio transmitter and remove it.
• Remove the mounting plate, it is fastened by 4 clips to the electronic sec-
tions of the wall-mounted radio transmitter (see 4 arrows in the middle pic-
ture to the right).
• The mounting plate contains several different mounting holes for installation
using screws, for example, in the wall or even on the surface or in a flush-
mounted socket box. You can also secure the wall-mounted radio transmit-
ter using double-sided duct tape.
Use suitable screws and wall plugs, depending on the surface. Pay atten-
tion when drilling and tightening the screws that no cable or pipes are dam-
aged.
• Insert the electronic section, correctly orientated, into the mounting
plate, until it locks in place. The arrow on the electronic section (see circle
in the middle picture to the right) indicates the position "up" (rocker switch
inscription "I").
• Insert a 12 V battery (Type "23 A"), with the correct polarity, into the battery
compartment of the wall-mounted radio transmitter. An identical figure is
located next to the battery compartment.
• Fit the rocker switch correctly. The inscription "I" on the rocker switch faces
upwards, on the same side as the arrow on the electronic section, as indi-
cated by a circle in the middle picture.
b) Wireless inbuilt switch
• Install the wireless switch in a suitable flush or wall mounted housing, contact box or similar.
• The wireless inbuilt switch must be disconnected from the mains supply during installation. Turn off the
mains supply, before switching off the appropriate circuit breaker or pulling out the fuse. Secure it against
an unauthorised re-start, e.g. with a danger sign.
Furthermore, turn off the earth leakage circuit breaker to disconnect all the poles from the mains voltage.
• Check that the mains connection is current free with a suitable tester.
• The product may not be exposed to extreme temperatures, strong vibrations or heavy mecha-
nical loads.
• If you have reason to assume that safe operation is no longer possible, disconnect the product
immediately and secure it against inadvertent operation. Do not touch the inbuilt wireless
switch or any connected device.
Disconnect the inbuilt wireless switch from the mains by switching off the appropriate circuit
breaker or pulling out the fuse. Furthermore, turn off the earth leakage circuit breaker to dis-
connect all the poles of the mains supply.
Let an expert check the product.
• A safe operation can no longer be assumed, if:
- the product shows visible signs of damage,
- the product does not work at all or well (flickering light, leaking smoke or a smell of burn-
ing, the light flickers, audible cracking noises, discolouration to the product or the adjacent
surfaces.)
- the device has been stored under adverse conditions
- it was exposed to heavy loads during transport
• Do not leave packing materials unattended. They may become dangerous playthings for chil-
dren.
• In commercial institutions, the accident prevention regulations of the employer's liability insur-
ance association for electrical systems and operating facilities are to be observed!
• If you have any questions, which are not answered in this manual, please contact our techni-
cal service or another specialist.
Please refer to the section "Safety instructions"!
