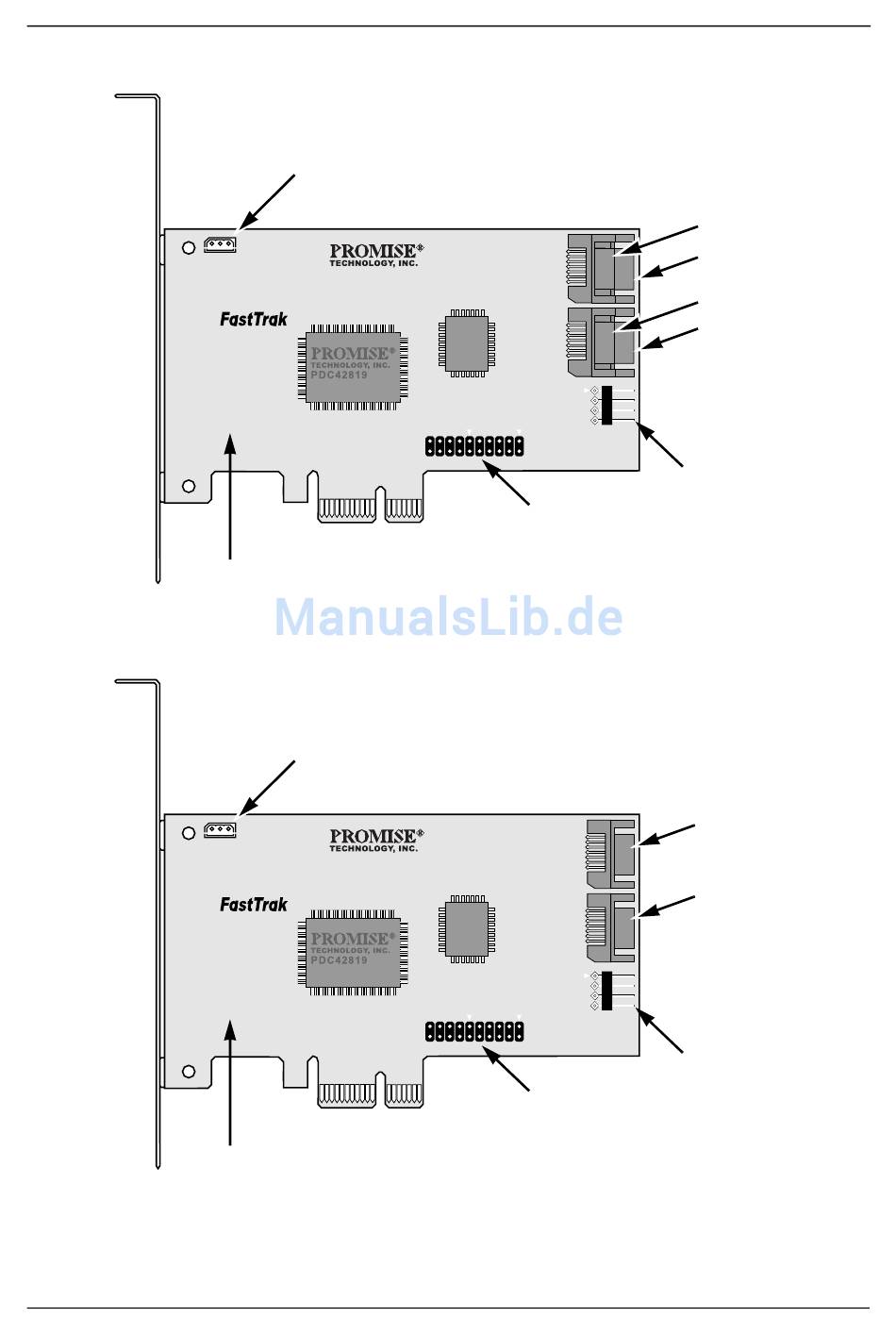

Figure 1. Connectors on the FastTrak TX4650 card
FastTrak TX4650 card
Figure 2. Connectors on the FastTrak TX2650 card
FastTrak TX2650 card
I2C/SMBus Connector
for SuperSwap
TX4650
I2C/SMBus Connector
for SuperSwap
TX2650
Step 2: Installing the FastTrak Card
Individual LED
Connectors
Individual LED
Connectors
5
Port 3
Port 1
Port 4
Port 2
Global LED
Connectors
Port 1
Port 2
Global LED
Connectors
