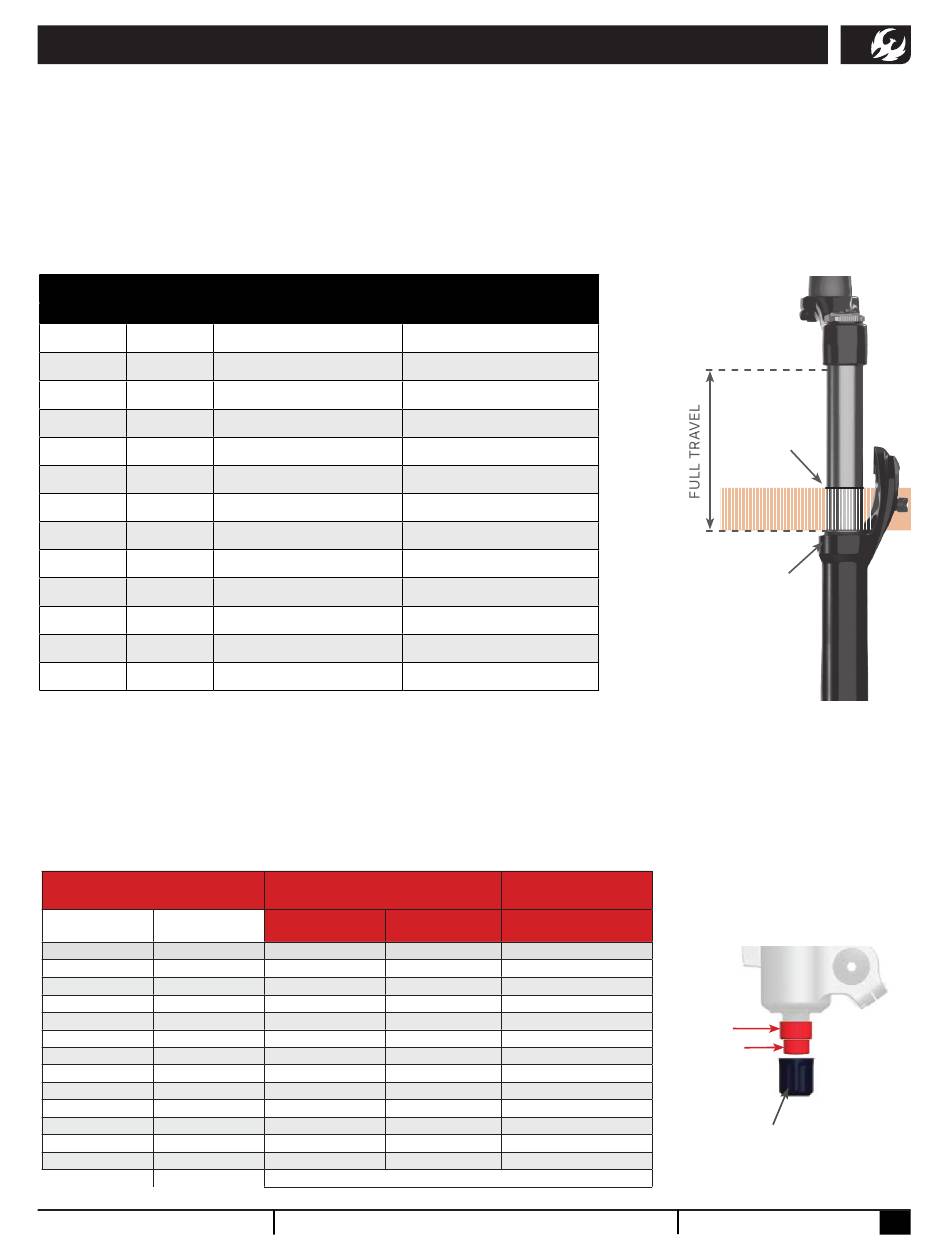

SETTING FORK SAG

• We recommend setting sag between 15% and 20% of the total fork travel. The Shuttle
AMP'd comes with a 160 mm fork, so the proper sag measurement is 24.0 - 32.0 mm.
• To achieve proper sag, reference the chart to below for a starting point.
• Just like with the shock sag the fork needs to be equalized when the pressure is changed.
Press down on the fork a few times after making a pressure change to get an accurate
measurement.
*Do not exceed the maximum air pressure indicated on your fork.
RIDER WEIGHT
[kg] [lbs]
55 - 59 120 - 130
59 - 64 130 - 140
64 - 68 140 - 150
68 - 73 150 - 160
73 - 77 160 - 170
77 - 82 170 - 180
82 - 86 180 - 190
86 - 91 190 - 200
91 - 95 200 - 210
95 - 100 210 - 220
100 - 105 220 - 230
105 - 109 230 - 240
109 - 114 240 - 250
Setting Rebound Damping on the FOX 38 Forks
• Remove the protective cover over the rebound knobs on the lower fork leg.
• To set rebound, start from the open (or fastest) position by turning the red rebound dial(s)
on the bottom of the right fork leg counterclockwise until it stops clicking. On the FOX 38
Grip X2 there are two dials. One for high speed and one for low speed.
• Refer to the chart below for recommended settings. Clicks from closed are in parentheses.
Air Pressure
PSI BAR
<58 <3.9
58-62 3.9-4.3
62-67 4.3-4.6
67-72 4.6-4.9
72-76 4.9-5.2
76-80 5.2-5.5
80-84 5.5-5.8
84-89 5.8-6.1
89-93 6.1-6.4
93-97 6.4-6.7
97-100 6.7-6.9
100-104 6.9-7.2
104-107 7.2-7.4
pivotcycles.com
FOX 38
57 [psi] / 3.9 [bar]
62 [psi] / 4.3 [bar]
68 [psi] / 4.7 [bar]
72 [psi] / 5.0 [bar]
76 [psi] / 5.2 [bar]
80 [psi] / 5.5 [bar]
84 [psi] / 5.8 [bar]
89 [psi] / 6.1 [bar]
93 [psi] / 6.4 [bar]
97 [psi] / 6.7 [bar]
102 [psi] / 7.0 [bar]
106 [psi] / 7.3 [bar]
110 [psi] / 7.6 [bar]
GRIP X2 Rebound
LSR
3 (3)
4 (12)
5 (11)
5 (11)
6 (10)
6 (10)
7 (9)
7 (9)
8 (8)
9 (7)
10 (6)
11 (5)
12 (4)
Clicks from OPEN (Clicks from CLOSED)
info@pivotcycles.com
ROCKSHOX ZEB
98 [psi] / 6.8 [bar]
108 [psi] / 7.4 [bar]
118 [psi] / 8.1 [bar]
128 [psi] / 8.8 [bar]
138 [psi] / 9.5 [bar]
146 [psi] / 10.0 [bar]
154 [psi] / 10.6 [bar]
161 [psi] / 11.1 [bar]
170 [psi] / 11.7 [bar]
174 [psi] / 11.9 [bar]
179 [psi] / 12.3 [bar]
184 [psi] / 12.7 [bar]
190 [psi] / 13.1 [bar]
Grip Rebound
HSR
0 (8) 1 (13)
0 (8) 2 (12)
1 (7) 3 (11)
2 (6) 4 (10)
2 (6) 5 (9)
3 (5) 6 (8)
3 (5) 7 (7)
4 (4) 8 (6)
5 (3) 9 (5)
5 (3) 10 (4)
6 (2) 11 (3
7 (1) 12 (2)
8 (0) 13 (1)
1.877.857.4868
O-RING
SAG AREA
DUST WIPER
HSR
LSR
Protective Cover
