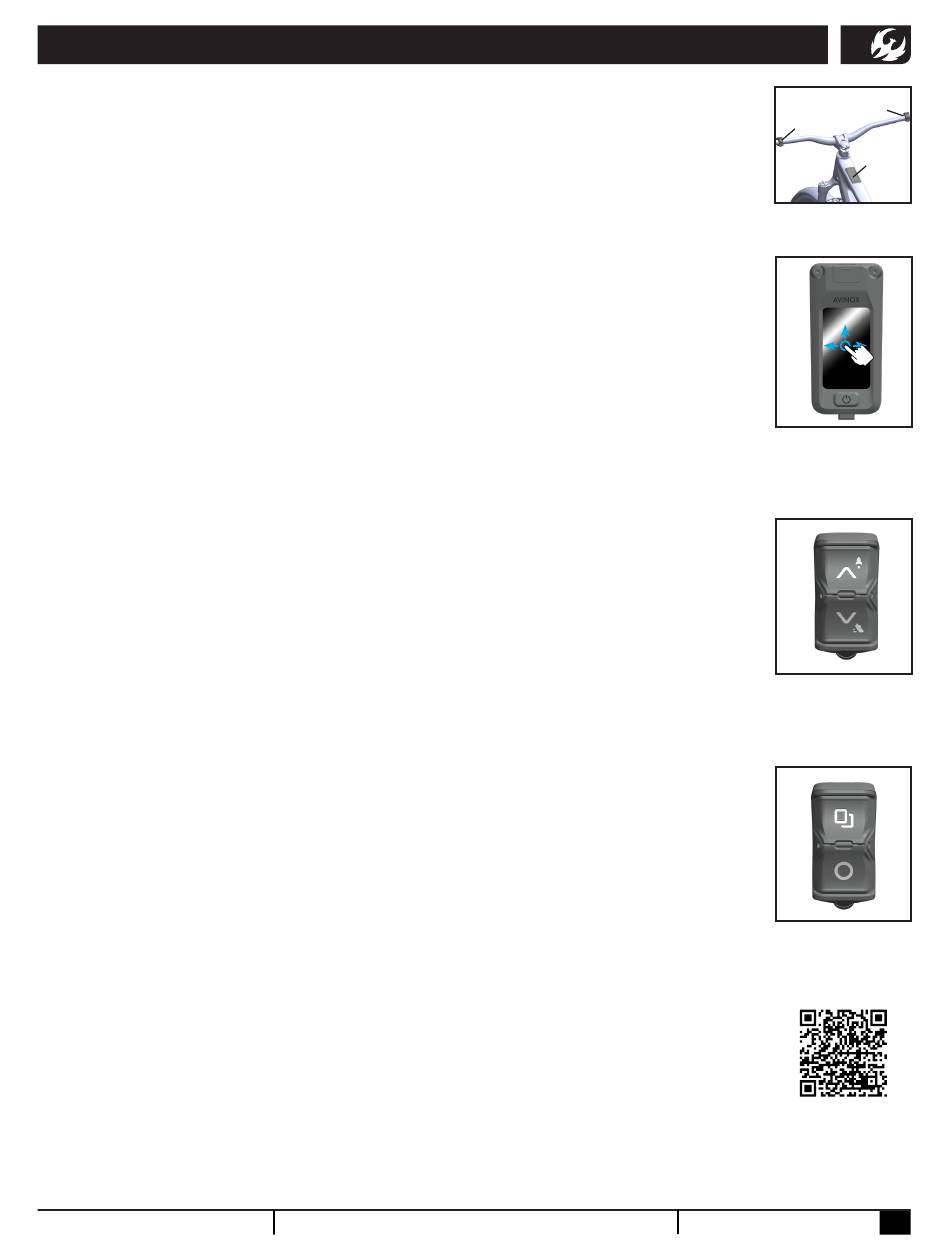

QUICK START GUIDE

Avinox System Controls

• The system assist and functions can be controlled with Control Display (1),
Left Wireless Controller (2) and Right Wireless Controller (3).
• Become familiar with the operation of the controls before riding the e-bike.
1. Control Display
• The power button is located in the bottom center of the Control Display.
Press and hold the power button to turn the system on/off. If the e-bike has
not moved for 10 minutes, the power will shut off automatically.
• Tap or swipe on the screen of the Control Display to view ride data screens
and access settings.
• There is a USB-C charging port at the top of the Control Display that can be
used to charge connected devices.
• The power button can also be used to change assist modes with a quick press.
2. Left Wireless Controller
• Press the assistance level increase button (upper button) to increase
assist modes in order of Off> Auto> Eco> Trail> Turbo.
• Press and hold the up button to activate Boost mode and the e-bike
screen will display a countdown. Press the power button or assistance
level increase/decrease buttons to exit Boost mode.
• Press the assistance level decrease button (lower button) to decrease
assist in order from Turbo> Trail> Eco> Auto> Off.
• Press and hold, the down button to activate Walk mode. Once activated,
press and hold the button for walk assist functions. Press any other
button to exit Walk mode.
3. Right Wireless Controller
• Customizable Screen Switch Button (upper button). Press to slide the e-bike
screen display to the right.
• Customizable Function Button (lower button). Press to slide the e-bike screen
display to the left.
• Swipe up on the e-bike screen to enter Settings, and then you can customize
functions for the buttons in Customize Controls.

Smartphone Connection and App Pairing

• Scan the QR code to the right to download the Avinox App for your smartphone.
• When powering the e-bike on for the first time, follow the prompt on the
e-bike screen to complete pairing and activation. Tap Skip and you can ride
without activation for a trial period. After the trial distance runs out, follow
the steps below to pair and activate.
1. Press and hold the power button. Swipe up on the screen to enter Settings
and tap Pair to App to view the pairing QR Code on the screen.
2. Make sure Bluetooth and network are enabled on your mobile device.
3. Open Avinox App, then tap Pair and scan the QR code on the screen to pair.
