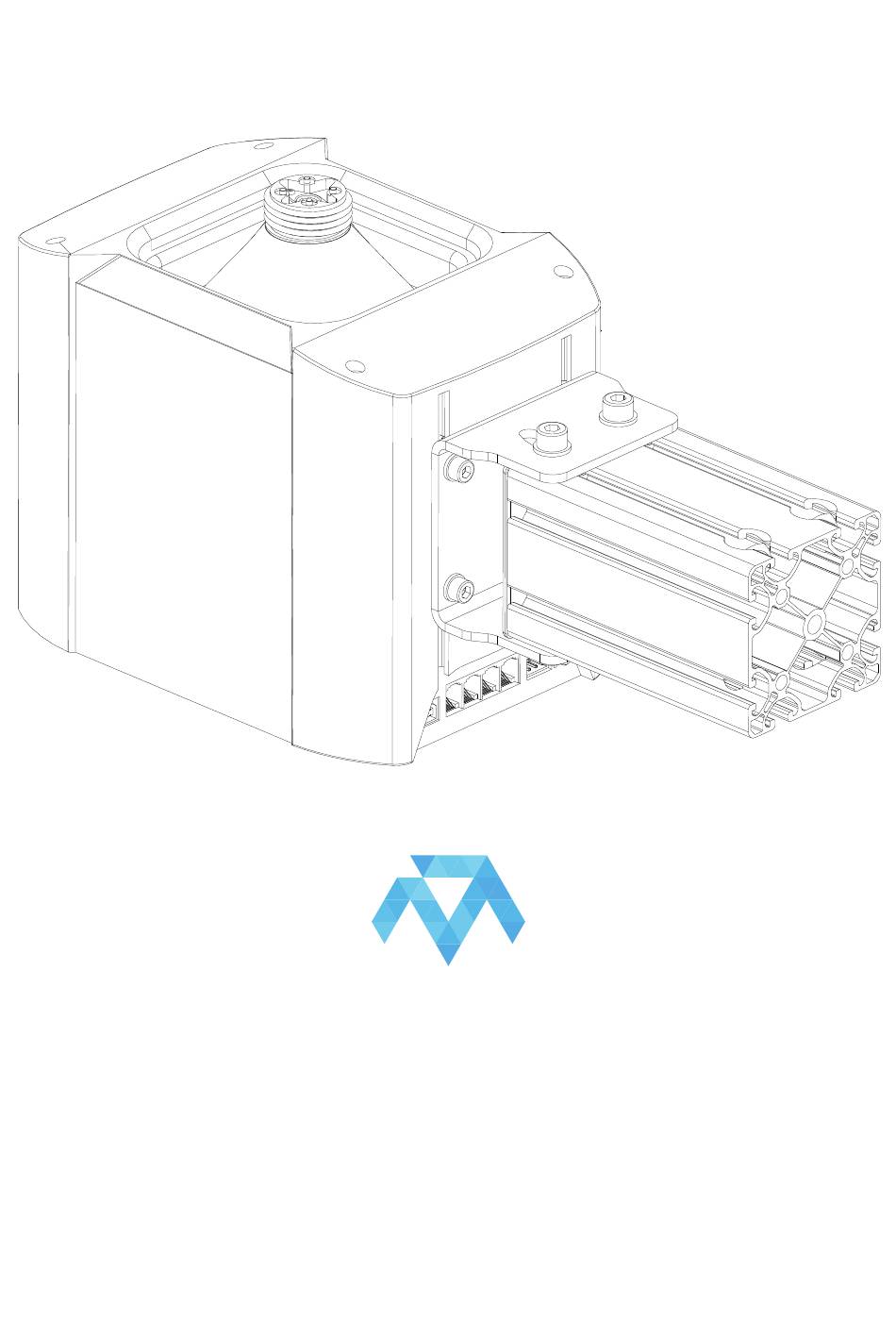

- Seite 1 MOZA AB9 Base Mounting Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Seite 2 GENERAL ASSEMBLY INFO AND HOW TO PROFILE NUT HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 3 UNIVERSAL CONNECTOR M8x30 universal connector slot nut M8 ALTERNATIVE M8x30 very loose pre-assembled universal connector slide in MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 4 extension for better tightening force BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm] M8x35 M8x35 M8x25 M8x25 PROFILE CAP ATTACHMENT MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 5 MOZA AB9 BASE ASSEMBLY Slide the original MOZA M6 T-nuts into the grooves of the AB9 base. M6x16 black Screws and washers delivered from MOZA. washer black MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 6 slot nut If the cap is not yet mounted, you can simply slide in the slot nuts. MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 7 M8x14 or M8x16 washer Ø16 black washer Ø16 black M8x14 or M8x16 Before you tighten the screws, you can angle the base sideways if desired. MTSIM JOYSTICK/THROTTLE MOUNTING INSTRUCTION MANUAL...
- Seite 8 If the base has to be angled in the other direction, you need to assemble the mounting bracket 180° turned. 23-10-2025...
- Seite 9 WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the mount. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments. DANGER: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults.
