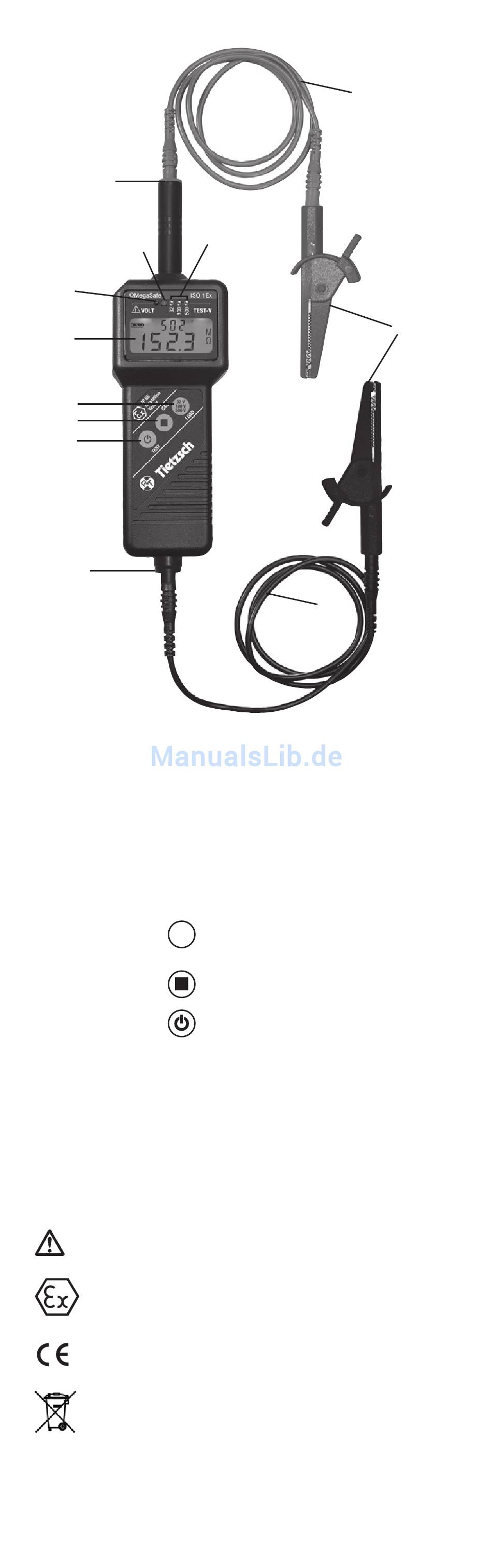

LEDs for the preselection of test
1
voltage 32 V, 100 V, 500 V
2 Test-LED for resistance measurements
3 Volt-LED warns against external voltage
4 Display (double-spaced LCD)
5

Pushbutton

6
Pushbutton
7 Pushbutton
Lower socket
8
Upper socket
9
Crocodile clips
10
11
Measuring lines
Symbole on the device
Attention! Observe user instructions!
Ex marking:
Approved for Ex areas in accordance with ATEX
(DIN IEC 60079-0 und DIN IEC 60079-11)
EC conformity mark
WEEE 2002/96 EG:
This devices may not be disposed with the domestic
waste. Please contact service@tietzsch.de in regard
to the return of old devices.
14
1
2
32 V
test voltage, zero balance,
100 V
500 V
rapid discharge
measuring, zero balance
on/off, selftest
