PRODUCT DESCRIPTION

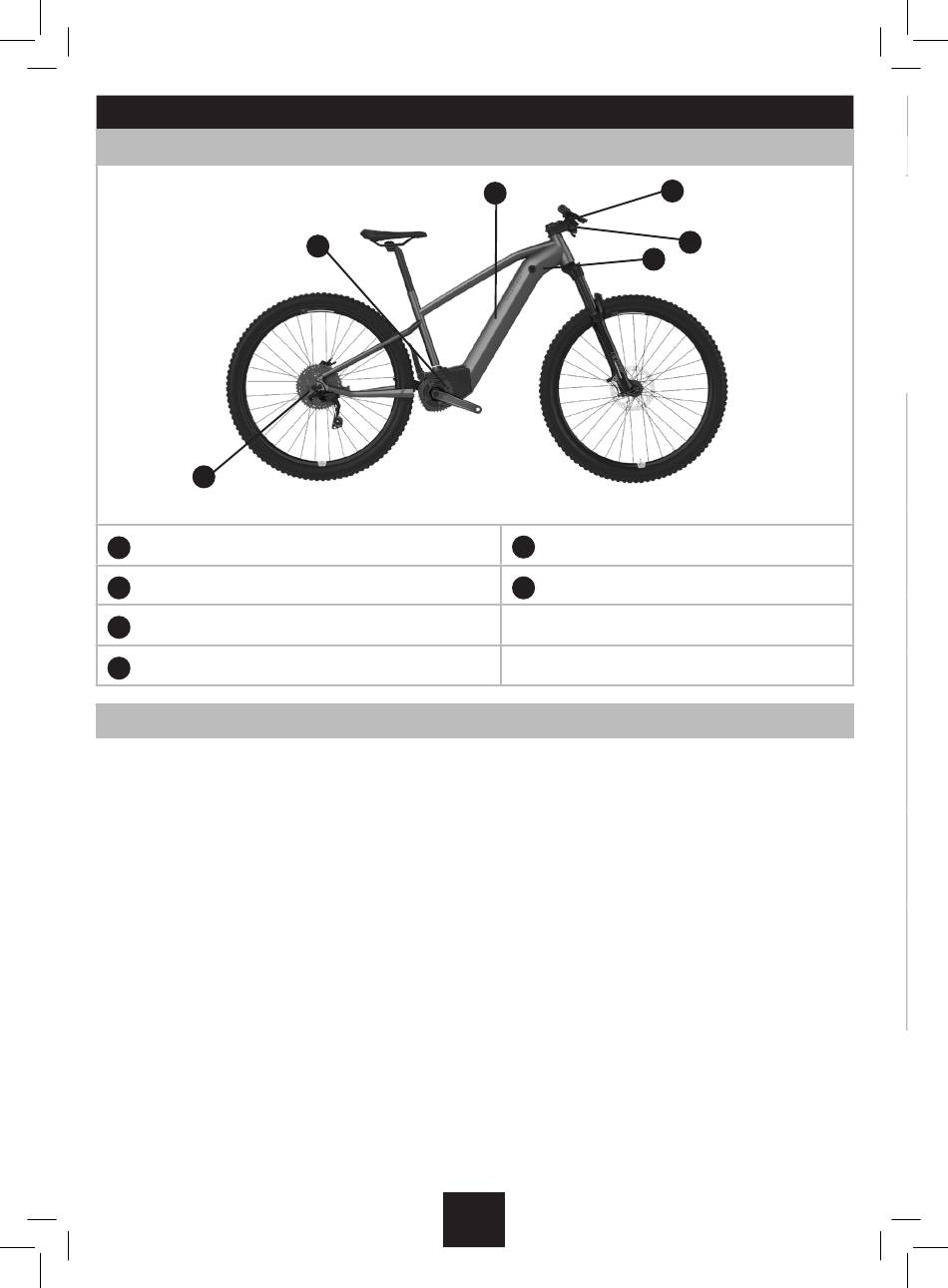

Electrically-assisted bike technical features
F
Battery
A
Battery unlocking cylinder
B
Controller and motor
C
Control screen
D
General operation of the electrical assistance
The electrically assisted bicycle can be used with or without assistance by pressing the ON/OFF button and playing
around with the 1/2/3/4 modes. Assistance modes modes 1 / 2 / 3 / 4, which you can select via the «D» screen, let
you select a level of electrical assistance in addition to the effort you put in. The electrical assistance will only work if
you pedal with the screen switched on and if one of the 4 modes has been selected.
Assistance cuts off when the speed is above 25km/h. During intensive use and in exceptional weather conditions,
the pedal-assist mode may cut out to safeguard the system. The power supplied is calculated by the "C" controller
according to the selected mode. According to the mode selected, the controller «C» sends more or less current to the
motor «C» to provide you with the desired level of assistance.
The electrical assistance does not work or shuts down in the following situations:
- Your speed is above 25km/h (+/-10%)
- You're not pedalling
- The remaining charge in the battery is not sufficient
- When the control screen is switched off or disconnected
The electrical assistance may also cut out to protect the system in the event of intensive use and in
exceptional weather conditions
A
C
6
D
E
B
Assistance mode control
E
Speed Sensor
F
SCRE
Desc
1
Mod
% of
tion
Exam
final
2
3
4
5
6
Techn
Board
Blueto
- Freq
- Tran
