User Manual
s
afety inforMation
This manual contains the information for proper
and safe operation of the device. If you do
not follow the instructions, the device may be
damaged.
Warning!
Before using the device make sure you read
•
and understand the manual completely.
keep the manual near so you can use it in
•
case of need.
follow the security and safety instructions
•
to ensure maximum personal safety during
the usage of the device.
Never use the maximum allowed inward
•
values when measuring!
Do not attempt to measure in fire hazard areas
•
, near smoke, vapor or dust. Use of the device
in such areas may induce sparks which can
cause explosions.
Do not use the device if its surface or your
•
hands are wet.
Never open the battery container during
•
measuring!
Always verify the device and the measuring
•
wires before usage. If you encounter any
structural damage on the device or the
accessories (e.g. cracks or the display showing
incorrect values) do not use the device.
Do not turn the function selector if any kind of
•
circuit is connected to the device.
Do not use spare parts and do not modify the
•
device's circuits. For repairs and verification
take it to a service station.
Before opening the battery container or
•
replacing the battery always turn the device
off.
Never replace the battery with wet hands.
•
Verify that you have set the correct function
•
with the switch before measuring.
Make sure to turn the device off when you are
•
not using it.
Do not put the device into direct sunlight,
•
extremely hot or damp conditions.
Do not use detergents to clean the device.
•
s
etUp
1
2
3
4
5

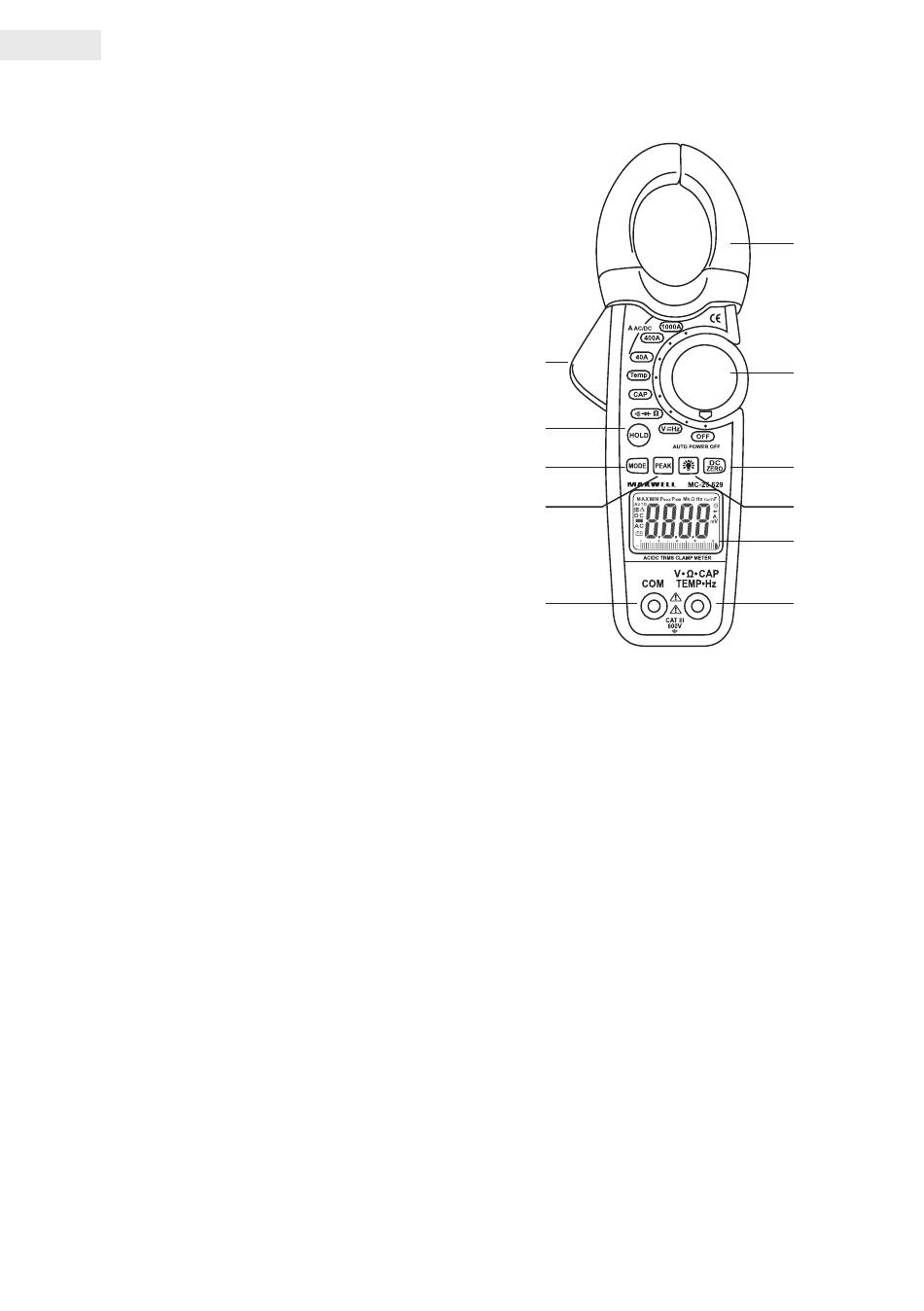

1. Trigger
2. HOLD button
3. MODE button
4. PEAK button
5. COM connector
6. V, Ω, CAP, TEMP, Hz connector
7. LCD display
8. Backlight button
9. DC A nullifier
10. Function switch
11. Clamps
cHaracteriSticS
True RMS measuremenet for AC power and
•
voltage
Big 4 digit LCD display with a white LED
•
backlight
Wide measuring range: 0.01A AC/DC- 1000A
•
AC/DC
AC and DC voltage measurement up to 600 V
•
Resistance measurement 0.01Ω - 40Ω
•
Calacity measurement up to 40mF
•
Temperature measurement from -40°C to
•
1000°C
11
10
9
8
7
6
