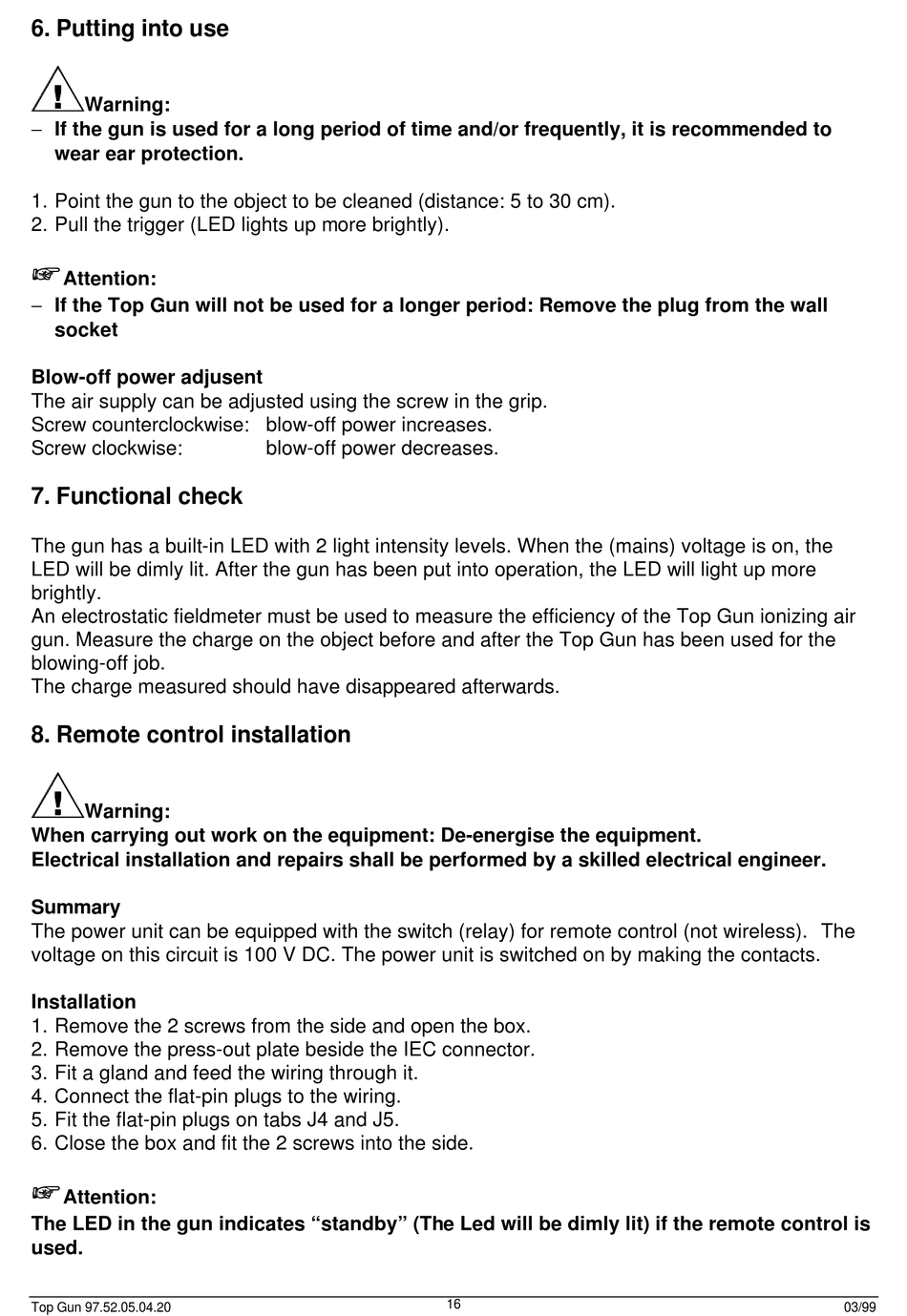

6. Putting into use

Warning:
− If the gun is used for a long period of time and/or frequently, it is recommended to
wear ear protection.
1. Point the gun to the object to be cleaned (distance: 5 to 30 cm).
2. Pull the trigger (LED lights up more brightly).
+ +
Attention:
− If the Top Gun will not be used for a longer period: Remove the plug from the wall
socket
Blow-off power adjusent
The air supply can be adjusted using the screw in the grip.
Screw counterclockwise: blow-off power increases.
Screw clockwise:

7. Functional check

The gun has a built-in LED with 2 light intensity levels. When the (mains) voltage is on, the
LED will be dimly lit. After the gun has been put into operation, the LED will light up more
brightly.
An electrostatic fieldmeter must be used to measure the efficiency of the Top Gun ionizing air
gun. Measure the charge on the object before and after the Top Gun has been used for the
blowing-off job.
The charge measured should have disappeared afterwards.

8. Remote control installation

Warning:
When carrying out work on the equipment: De-energise the equipment.
Electrical installation and repairs shall be performed by a skilled electrical engineer.
Summary
The power unit can be equipped with the switch (relay) for remote control (not wireless). The
voltage on this circuit is 100 V DC. The power unit is switched on by making the contacts.
Installation
1. Remove the 2 screws from the side and open the box.
2. Remove the press-out plate beside the IEC connector.
3. Fit a gland and feed the wiring through it.
4. Connect the flat-pin plugs to the wiring.
5. Fit the flat-pin plugs on tabs J4 and J5.
6. Close the box and fit the 2 screws into the side.
+ +
Attention:
The LED in the gun indicates "standby" (The Led will be dimly lit) if the remote control is
used.
Top Gun 97.52.05.04.20
blow-off power decreases.
