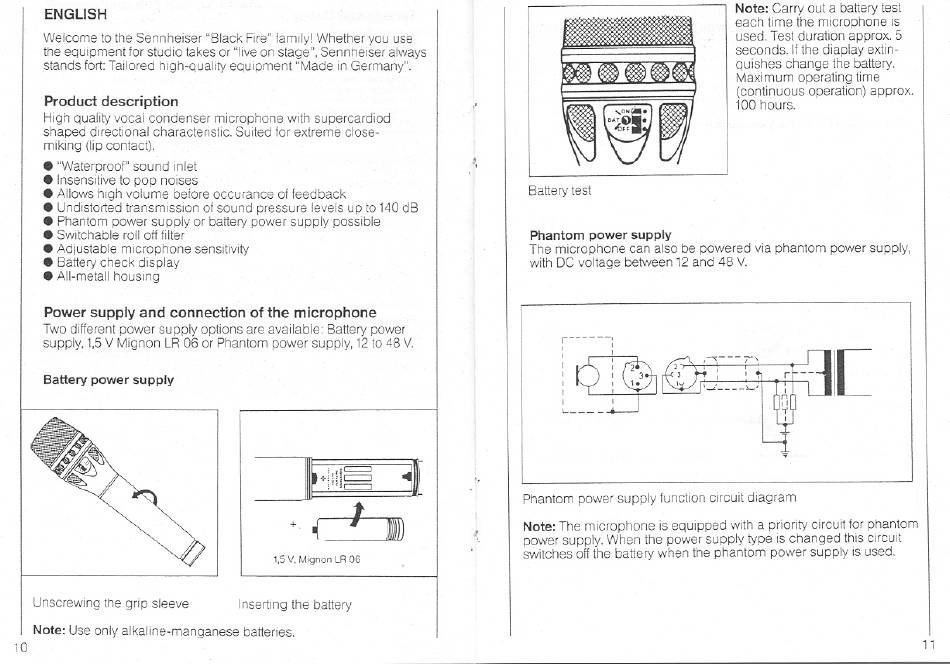

ENGLISH
Welcome to the Sennheiser 'Black Fire" family! Whether you use
the equipment for studio takes or "live on stage", Sennheiser always
stands fort: Tailored high-quality equipment "Made in Germany".
Product description
High quality vocal condenser microphone with supercardiod
shaped directional characteristic.
miking (lip contact).
"Waterproof" sound inlet
O Insensitive to pop noises
O Allows high volume before occurance of feedback
Undistorted transmission of sound pressure levels up to 140 dB
Phantom power supply or battery power supply possible
Switchable roll off filter
O Adjustable microphone sensitivity
e Batten/ check display
All-metall housing
Power supply and connection
Two different power supply options are available: Battery power
supply, 1,5 V Mignon LR 06 or Phantom power supply, 12 to 48 V.
Battery power supply
Unscrewing the grip sleeve
Note: Use only alkaline-manganese batteries.
10
Suited for extreme close-
of the microphone
1.5 V. Mignon LA 06
Inserting the battery
Battery test
Phantom power supply
The microphone can also be powered via phantom power supply,
with DC voltage between 12 and 48 V.
3
Phantom power supply function circuit diagram
Note: The microphone is equipped with a priority circuit for phantom
powersupply.Whenthe powersupplytype is changedthiscircuit
switches off the battery when the phantom power supply is used.
Note: Carry out a battery test
each time the microphone is
used. Test duration approx. 5
seconds. If the diaplay extin-
quishes change the battery.
Maximum operating time
(continuous operation) approx.
100 hours.
11
