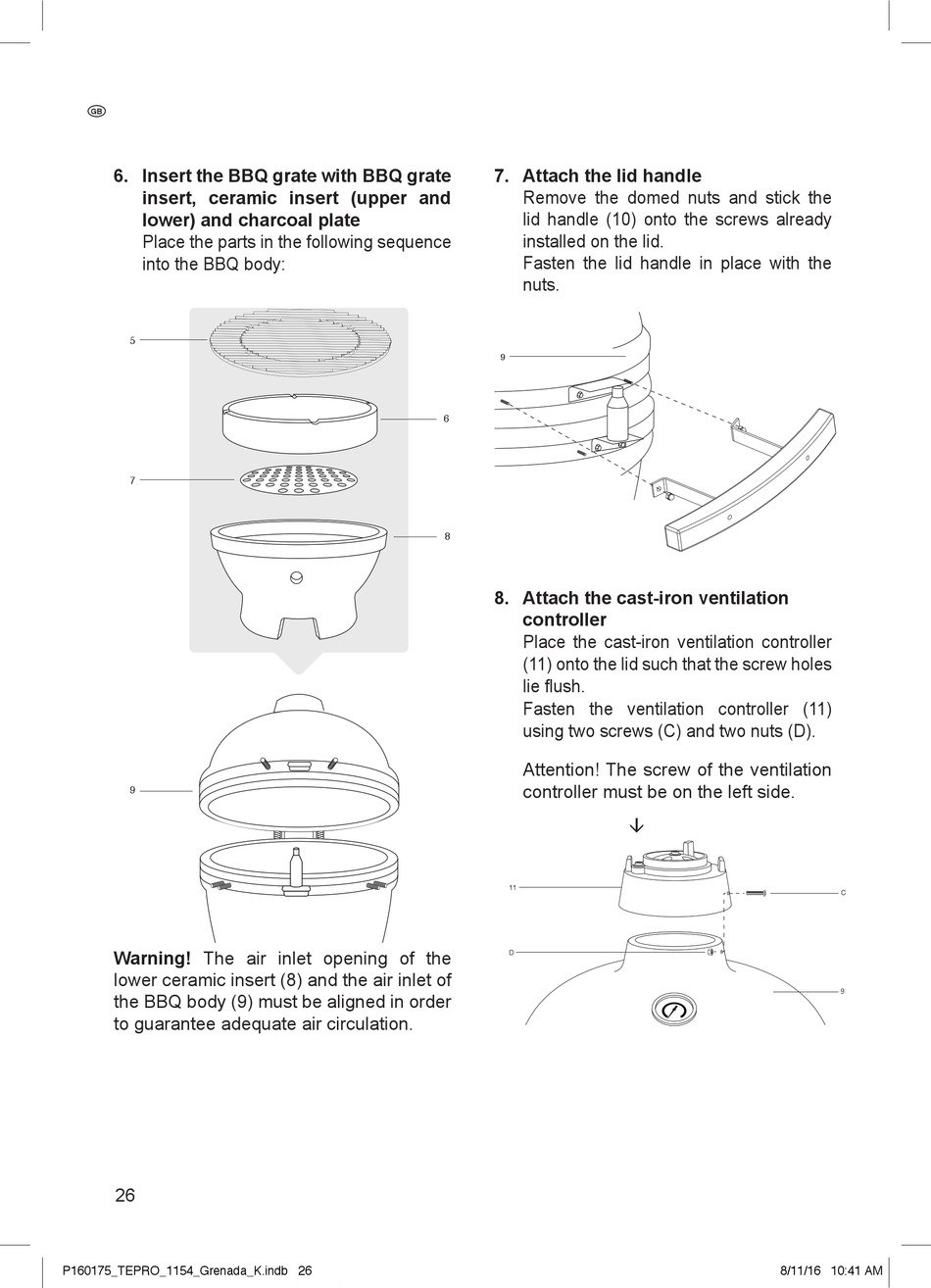

6. Insert the BBQ grate with BBQ grate
insert, ceramic insert (upper and
lower) and charcoal plate
Place the parts in the following sequence
into the BBQ body:
5
7
9
Warning! The air inlet opening of the
lower ceramic insert (8) and the air inlet of
the BBQ body (9) must be aligned in order
to guarantee adequate air circulation.
26
P160175_TEPRO_1154_Grenada_K.indb 26
7. Attach the lid handle
Remove the domed nuts and stick the
lid handle (10) onto the screws already
installed on the lid.
Fasten the lid handle in place with the
nuts.
9
6
8
8. Attach the cast-iron ventilation
controller
Place the cast-iron ventilation controller
(11) onto the lid such that the screw holes
lie flush.
Fasten the ventilation controller (11)
using two screws (C) and two nuts (D).
Attention! The screw of the ventilation
controller must be on the left side.
11
D

