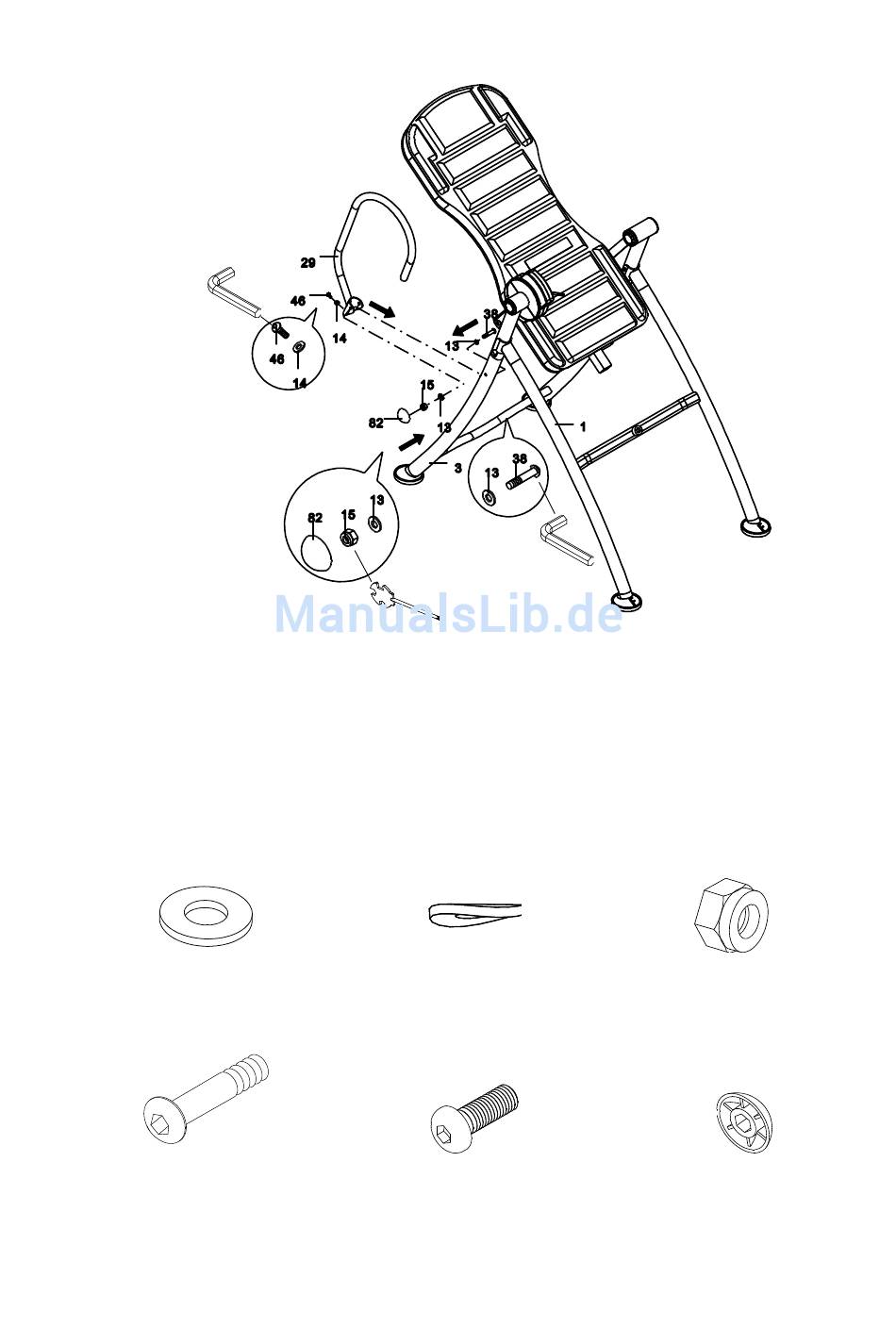

Step 5
Attach one of the Handlebars (29) onto Rear Frame (3) with two Washers (13), one Curve Washer
(14), one Lock Nut (15), one Bolt (38) and one Bolt (46). Tighten Bolt (46) with #6 Allen Wrench
provided. Tighten Bolt (38) and Lock Nut (15) with #6 Allen Wrench and Multi Hex Tool with Phillips
Screwdriver provided.
Attach the Cap (82) to the Lock Nut (15).
Hardware:
(13) Washer
(14) Curve Washer
(15) Lock Nut
2 PCS
1 PC
(Galvanize)
1 PC
(82) Cap
(38) Bolt
(46) Bolt
1 PC
1 PC
1 PC
AF 07 V3
33 / 108
