Installation and Operating Instructions
RMT 2 Programming module
1. Description
Suited to Dimplex heaters with electronic room thermostats
from the FPE, KLE, KSE, EPX and GFP series.
The programming module has one heating programme set
in the factory for Monday to Friday and one heating
programme set in the factory for Saturday and Sunday.
Each day can however also be programmed separately and
adapted to the user's needs.
The programming module can be used in an individual
manner, i.e. for one heater, or in a serial manner, i.e. for a
group of heaters (e.g. an apartment).
For serial use, the programming module is fitted to one
heater which is known as the "master heater". If the electric
wring is set up accordingly, the values set on the master
heater are transferred to up to 20 downstream heaters
(slave heaters), i.e. the heating programme set on the
master heater is also run on all the slave heaters too.
The operating switch on the FPE, GPE, KLE and KSE
heaters must be set to
corresponding instructions in the instruction manual for the
corresponding heater for more details.
2 Operating Modes Available
Heating programmes in Comfort and Setback mode are
preset in the factory.
Comfort: the temperature set on the respective thermostat
is used.
Setback: the temperature set on the respective thermostat
is reduced by 3.5° – for example if 21° C is set, i t is reduced
to 17.5 ° C.
A frost protection function can also be set for longer periods
of absence. However this is not set by the hour but for at
least one day. Frost protection is specified for a maximum of
99 days.
3. Start-Up
The programming module can be set in the heater after 10
minutes of charging.

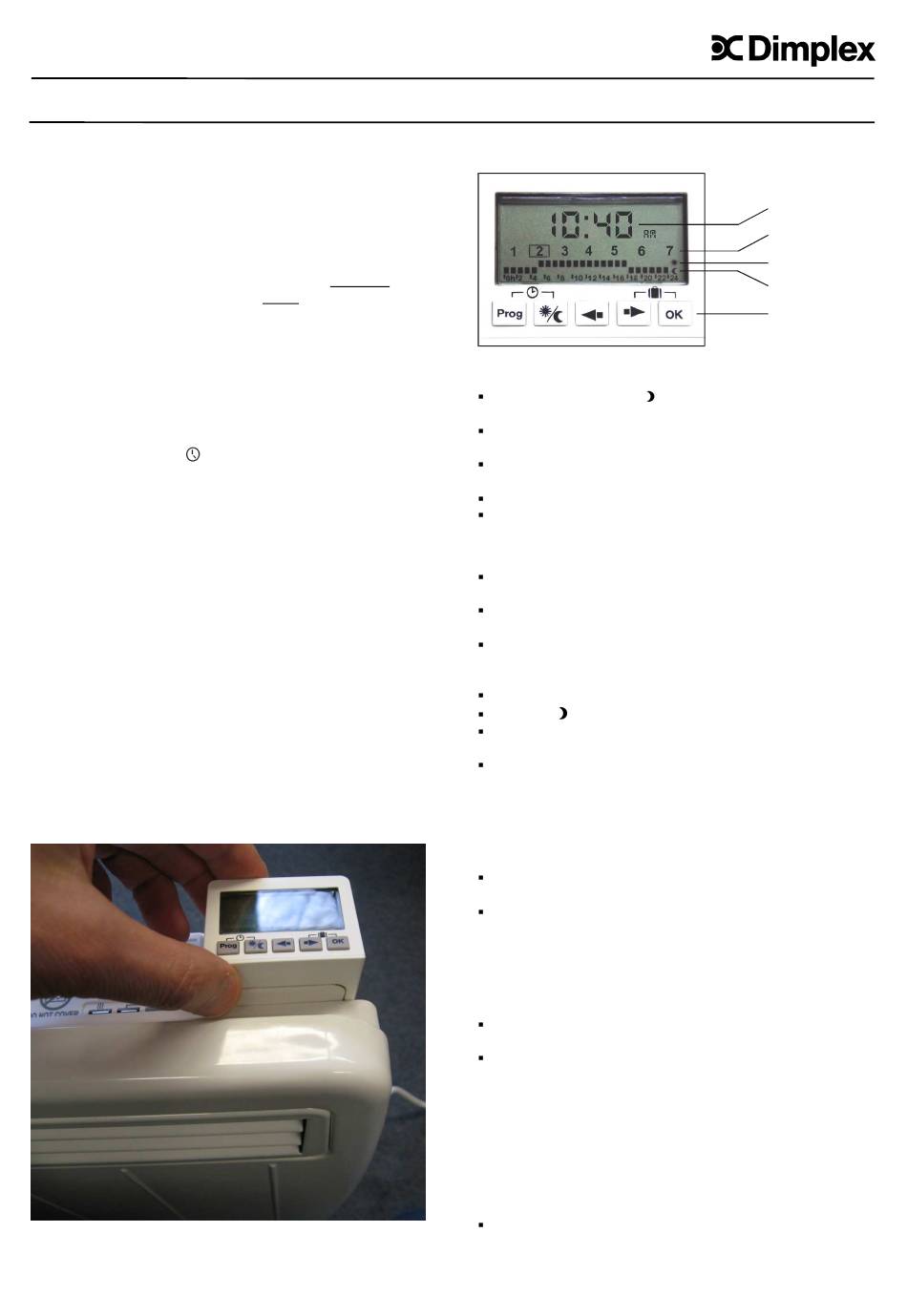

Carefully remove the cover from the heater's room
thermostats and insert the programming module.
for this to work. Refer to the
4. Setting Programming Module
4.a. Setting day of the week and time
Press "Prog" and ☼ /
seconds until the day indicator flashes.
Use the ← → buttons to set the day of the week and
confirm with OK.
Select hour display – "24 H" or "12 H" (UK 12-hour time)
and confirm with OK.
Set the hour and confirm with OK.
Set the minute and confirm with OK.
4.b Setting heating programme
Press Prog button for around 1 second.
The day of the week is displayed.
Use the ← → buttons to select the present day and
confirm with OK.
The heating programming already set is displayed.
Each bar represents one hour.
A setback hour is indicated by a bar at the lower level.
Use the ← → buttons to select the hour (bar flashes).
Use ☼ /
to set Comfort or Setback mode.
Once all 24 hours have been set, press OK. The next
day of the week is displayed.
Continue with programming or exit by pressing the Prog
button for about 1 second.
4.c Adopting heating programme for the following day
A set programme can be adopted for the next day.
Perform all settings as described under 4.b. Press OK.
The next day of the week is displayed.
Press OK for 3 seconds.
The settings of the previous day are adopted.
4.d Adopting heating programme for several days
A set programme can be adopted for the specified days.
Perform all settings as described under 4.b. Press OK.
The next day of the week is displayed.
Press → for 3 seconds.
All days of the week flash.
Adopt setting for all days: press OK.
Adopt setting for Monday to Friday:
press → Confirm with OK.
Adopt setting for Saturday and Sunday:
press → twice. Confirm with OK.
Adopt setting for Monday, Tuesday, Thursday and Friday:
press → three times. Confirm with OK.
Continue with programming or exit by pressing the Prog
button.
3
rmt2-en_ba 06/10/B
Time
Day of the week
Comfort mode
Setback mode
Setting buttons
buttons simultaneously for 3
