Connection and Start-up
• Plug the radio-controlled switch socket into a regular grounded mains socket (wall socket) of the
public supply grid.
For outdoor use, the power outlet which is utilized must at least comply with protection class IP44.
• The wireless switch socket must only be used in an outdoor area
in such a way that the protective covering can open upwards.

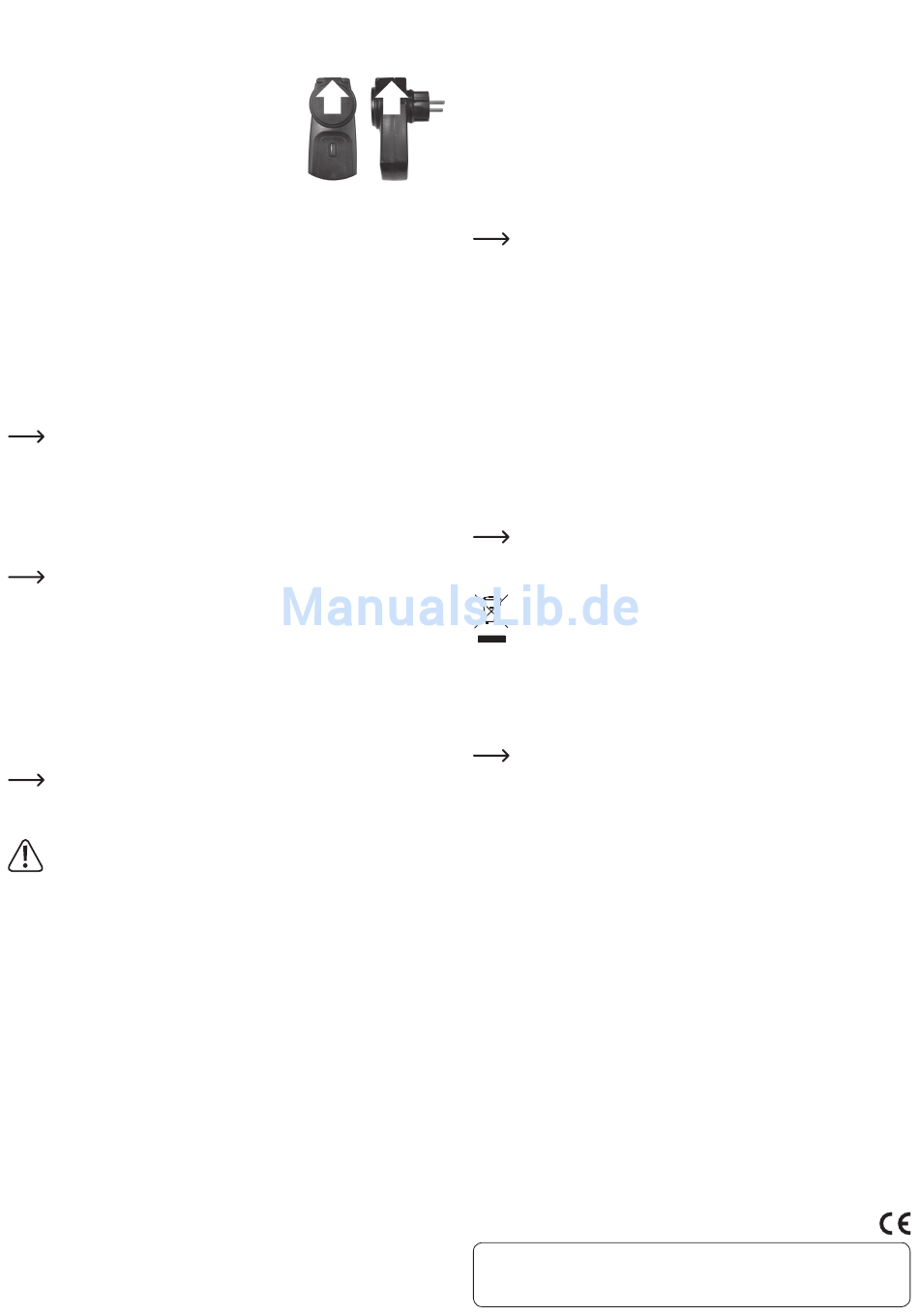

The arrow in the picture to the right indicates "up".
• Lift up the protective flap up and plug the power plug of the load into the socket of the wireless switch
socket.
Only an IP44 power plug may be used as a power adaptor for the use outdoors.
• Move the protective flap back down so that it lies on the power plug. Do not block the protective flap.
Switching the load on/off using the button
Briefly press the button at the front of the radio-controlled switch socket to switch the connected load
on or off.
An LED in the button indicates the current switch state:
• LED on: Mains socket/load is switched on
• LED off: Mains socket/load is switched off
Programming the radio-controlled switch socket to recognise a radio
transmitter
The wireless switch socket can be programmed to recognise a radio transmitter of the
RS2W radio system.
Before programming, observe the operating instructions of the radio transmitter you intend
to use.
Maintain a minimum distance of 20 - 30 cm between the wireless switch socket and the
transmitter. Otherwise, programming process may fail.
• If the radio-controlled switch socket is switched on (LED in the button is on, the connected
consumer is activated), switch the radio-controlled switch socket off.
To do this, briefly press the button, the LED in the button should go out.
The radio-controlled switch socket must be switched off (LED in the button is off); oth-
erwise, programming cannot be done.
• Start the programming procedure at the transmitter.
Example: Both buttons "ON" and "OFF" of the desired switch channel (e.g. channel 1) of the
12-channel hand-held transmitter of the RS2W system must be pressed simultaneously until the
red LED of the hand-held transmitter starts flashing. Release both buttons, the red LED contin-
ues to flash, the programming mode is activated.
• Press the button at the radio-controlled switch socket until the programming process on the
transmitter is complete.
Example: The LED at the 12-channel hand-held transmitter of the RS2W system lights up blue
and then goes dark. Release the button of the radio-controlled switch socket now.
• The radio-controlled switch socket switches on to indicate the end of the programming process.
The blue LED in the button lights up.
Up to 5 receivers can be added to a switch channel of a transmitter of the RS2W
system. This means, for example, that you can switch up to 5 radio-controlled switch
socket on or off simultaneously by pressing one button.
It is also possible to register the radio-controlled switch socket on several transmitters.
The dimmer for the RS2W radio control system may not be registered together with a
radio switch in a single switch channel! Always programme it to a separate channel of
the radio transmitter.
Deleting a programmed radio-controlled switch socket from a
transmitter
The procedure is exactly the same as for programming the radio-controlled switch socket to the
transmitter. You can find further information in the operating instructions of the used transmitter
of the RS2W system.
Switching on/off wirelessly
The radio-controlled switch socket can only be switched on or off wirelessly when it is pro-
grammed to a transmitter of the RS2W system.
To do this, observe the operating instructions of the used radio sender.
Maintenance and cleaning
The product does not require any maintenance. You should not open/dissemble it. Repair or main-
tenance work must be carried out by a specialist.
Before cleaning, disconnect the wireless switch socket from the power supply. To do this, pull it
completely out of the mains socket. Disconnect a connected load from the radio-controlled switch
socket.
You can use a clean, dry, soft cloth for cleaning. Dust can be very easily removed with a soft, clean
brush and a vacuum cleaner.
Do not use aggressive, chemical or scouring cleaning agents, as this may lead to discolouration or
changes in the material on the surface.
Range
The transmission range of the radio signals between the radio transmitter of the RS2W radio sys-
tem and the wireless socket is up to 150 m under optimum conditions.
This value, however, is the so-called "open space range" (the range when transmitter
and receiver are visible to each other, without interfering influences).
In practice, however, there may be walls, room ceilings, etc. between the transmitter and the
receiver which will reduce the range accordingly.
Due to the different influences on the radio transmission, no specific range can be guaranteed.
However, trouble-free operation is usually possible in a single family house.
Sometimes the range can be considerably reduced due to:
• Walls, reinforced concrete ceilings, light-weight walls with metal post and beam construction
• Coated/metallised insulated glass
• Proximity to metallic & conductive objects (e.g., heating elements)
• Proximity to human bodies
• Other devices using the same frequency (e.g. wireless headphones, wireless loudspeakers)
• Proximity to electric motors/devices, transformers, power adapters, computers
Declaration of conformity (DOC)
We, Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau, herewith declare that this
product conforms to the fundamental requirements and the other relevant regulations of the direc-
tive 1999/5/EC.
The Declaration of conformity for this product is available at
www.conrad.com
Disposal
The product must not be disposed of in the household waste.
Dispose of the product at the end of its serviceable life in accordance with the current
statutory requirements; e.g., return it to any suitable collection point.
Technical information
Operating voltage.............................................230 V/AC, 50 Hz
Power consumption.........................................approx. 0.4 W (off) or 1 W (on)
Max. power rating............................................resistive load: max. 3500 W (max. 15,2 A)
.............................................................................inductive load: max. 600 W (max. 2,6 A)
Devices with mainly resistive load are e.g., light bulbs, heaters, etc.
Devices with inductive load are, e.g., engines, control gears, conventional transform-
ers, energy saving bulbs, etc.
Transmission/reception frequency ................868.3 MHz
Range ..................................................................up to 150 m (see chapter "Range")
Protection class ................................................I
Protection grade ...............................................IP44
Child safety lock ................................................yes
Ambient conditions ........................................... Temperature -20 °C to +45 °C, air humidity 0% to 90%
Dimensions (H x W x D)....................................120 x 58 x 42 mm (without plug)
Weight .................................................................approx. 149 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent
the technical status at the time of printing.
© Copyright 2015 by Conrad Electronic SE.
relative, not condensing
