Promac PBD-3069 Bedienungsanleitung Seite 41

Index Part
No. No.
601........PBD1830V-601....................... SUPPORT ....................................................................................................... 1
602........ GB7085-5-12.......................... SOCKET HD SCREW.................................................. M5 × 12 mm ................. 2
603........PBD1830V-603....................... SHAFT ............................................................................................................ 1
604........ GB81985-5-6.......................... CROSS RECESSED FLAT HD SCREW.......................... M5 × 6 mm .................... 2
605........PBD1830V-605....................... HEX SLEEVE ................................................................................................... 1
606........ GB7085-3-8............................ SOCKET HD SCREW.................................................. M3 × 8 mm ................... 1
607........PBD1830V-607....................... CHIP SHIELD .................................................................................................. 1
608........ GB7085-3-6............................ SOCKET HD SCREW.................................................. M3 × 6 mm ................... 2
.............. PBD1830V-609....................... TOOL POST GUARD KIT (#601-608) ...............................................................1

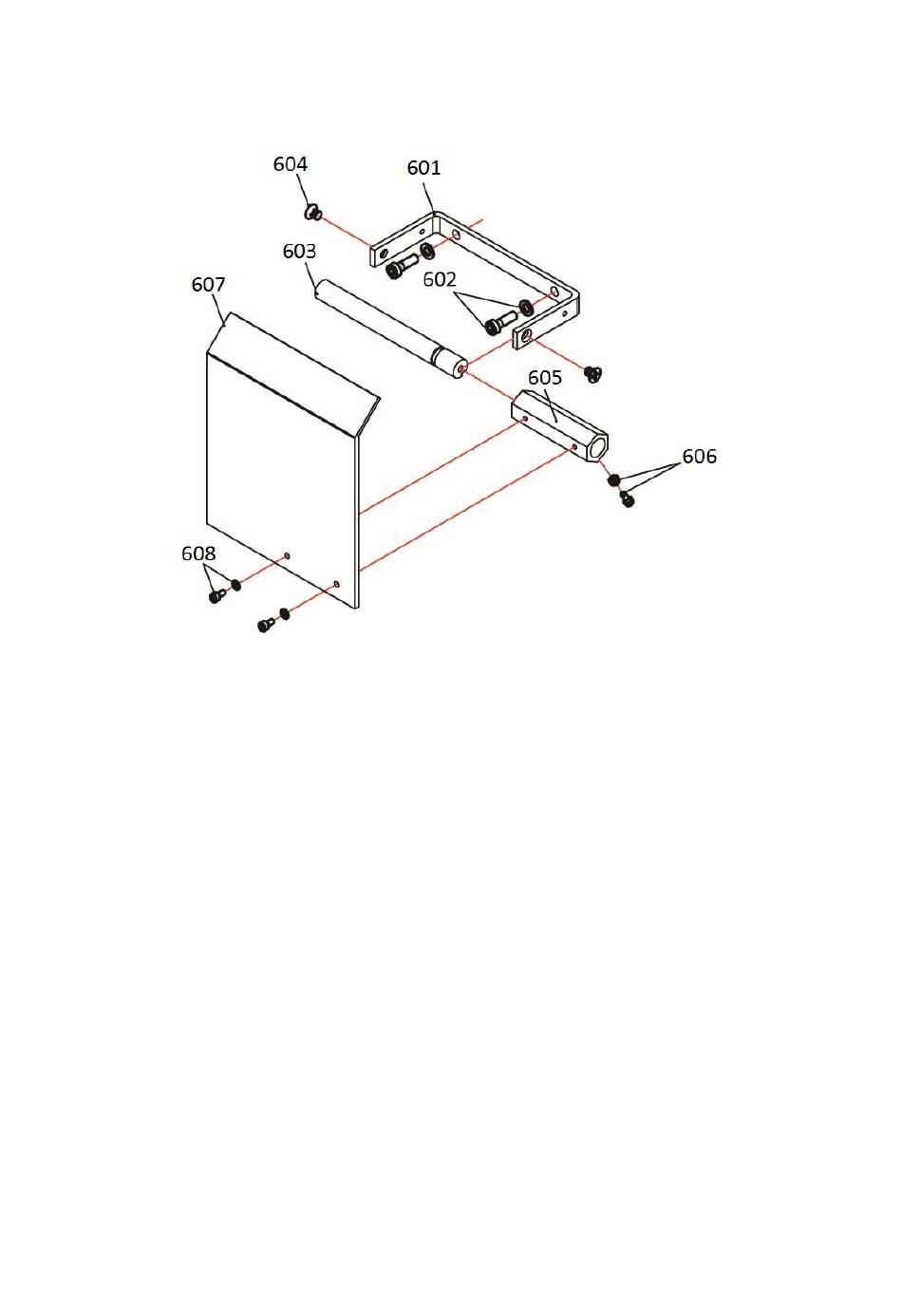

PBD-3069 Assembly Breakdown -10
PBD-3069 Parts List for Breakdown -10
Description
40
Size Qty.
