Promac PBD-3069 Bedienungsanleitung Seite 40

Index Part
No. No.
901........PBD1830V-901....................... NOZZLE .......................................................................................................... 1
902........PBD1830V-902....................... OUTLET PIPE .................................................................................................. 1
903........PBD1830V-903....................... RETURNING PIPE ........................................................................................... 1
904........PBD1830V-904....................... WATER TANK ................................................................................................. 1
905........ PBD1830V-905....................... ELECTRICAL BOX ............................................................................................ 1
906........PBD1830V-906....................... ELECTRICAL BOX COVER .................................................................................1
907........ GB7085-5-30.......................... SOCKET HD SCREW.................................................. M5 x 30 mm ................. 4
908........ PBD1830V-908....................... COOLANT PUMP (M2) ................................................................................... 1
909........ GB7085-5-12.......................... SOCKET HD SCREW.................................................. M5 x 12 mm ................. 4
910........PBD1830V-910....................... SWITCH.................................................................... KJD17B ......................... 1
911........GB97185-5............................. WASHER................................................................... 5 ................................... 4
912........PBD1830V-912....................... HOSE CLIP ...................................................................................................... 1
.............. 59500112............................... COOLANT PUMP KIT (#901-912) ................................................................... 1

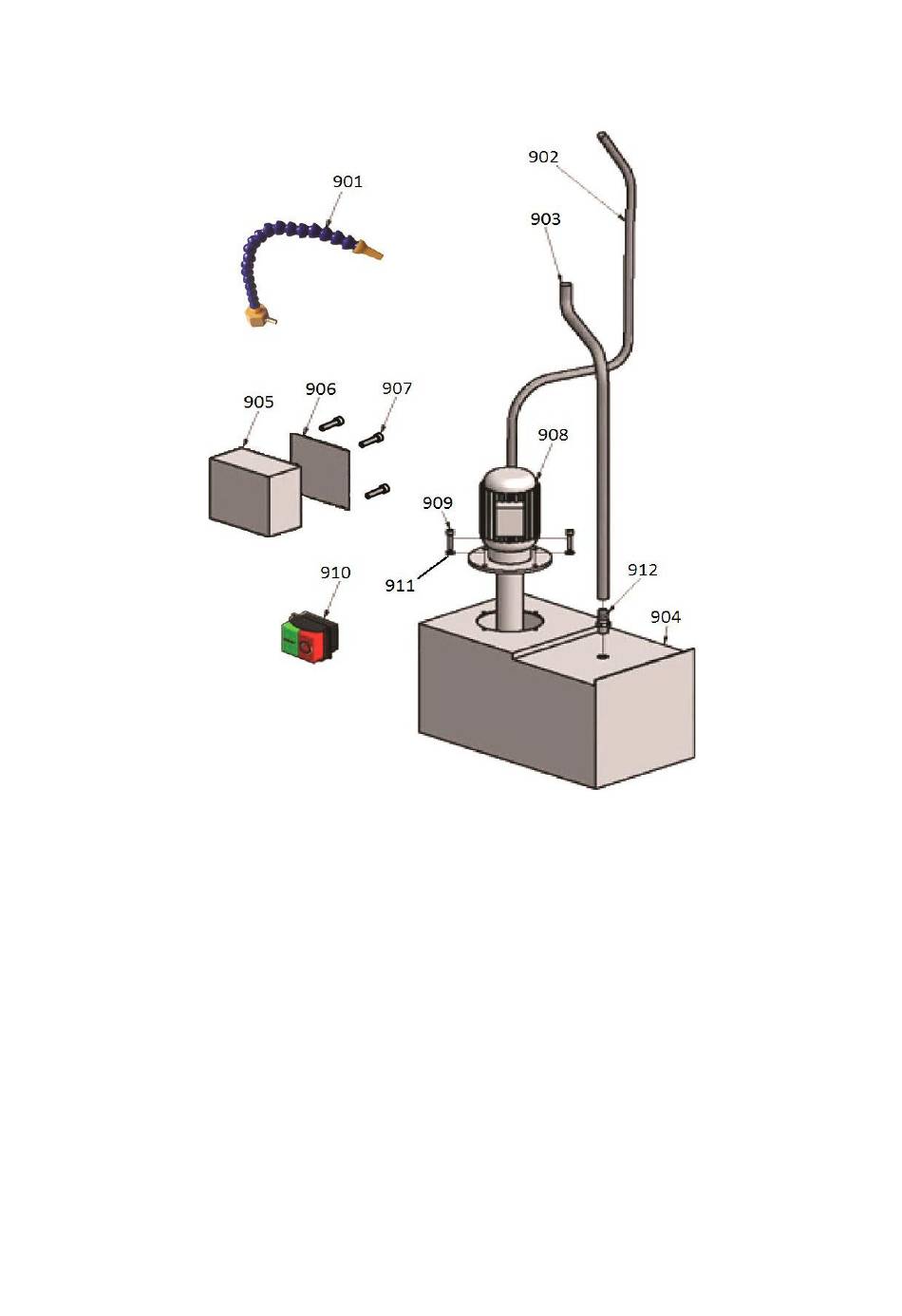

PBD-3069 Assembly Breakdown -9
PBD-3069 Parts List for Breakdown -9
Description
39
Size Qty.
