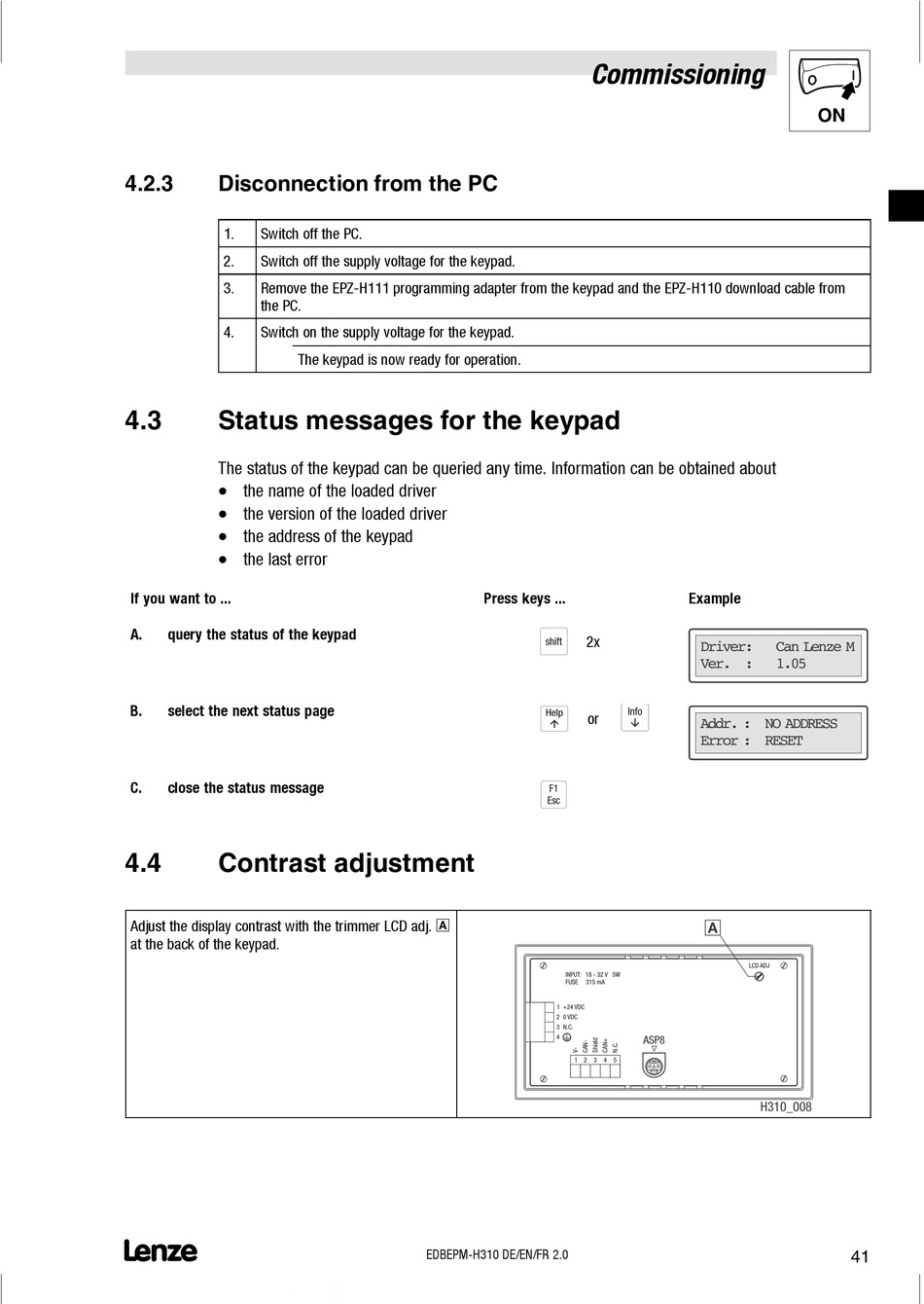

Disconnection From The Pc; Status Messages For The Keypad; Contrast Adjustment - Lenze EPM-H310 Betriebsanleitung

Show/Hide Bookmarks
4.2.3
4.3
If you want to ...
A. query the status of the keypad
B. select the next status page
C. close the status message
4.4
Adjust the display contrast with the trimmer LCD adj.
at the back of the keypad.
L

Disconnection from the PC

1. Switch off the PC.
2. Switch off the supply voltage for the keypad.
3. Remove the EPZ-H111 programming adapter from the keypad and the EPZ-H110 download cable from
the PC.
4. Switch on the supply voltage for the keypad.
The keypad is now ready for operation.

Status messages for the keypad

The status of the keypad can be queried any time. Information can be obtained about
•
the name of the loaded driver
•
the version of the loaded driver
•
the address of the keypad
•
the last error

Contrast adjustment

Commissioning
Press keys ...
2x
shift
Help
or
á
F1
Esc
0
INPUT: 18 - 32 V 5W
FUSE 315 mA
1 +24 VDC
2 0 VDC
3 N.C.
4
1 2 3
EDBEPM-H310 DE/EN/FR 2.0
Example
Driver: Driver: Can Lenze M Can Lenze M
Ver. : Ver. : 1.05 1.05
Info
Addr. : NO ADDRESS Addr. : NO ADDRESS
â
Error : RESET Error : RESET
0
LCD ADJ
ASP8
4 5
H310_008
