OPERATING INSTRUCTIONS
INSTRUCTIONS D'UTILISATION
r P n i e t d n i J a p a n
<For U.S.A. and Canada>
A lithium ion battery that is recyclable powers the product you
have purchased. Please call 1-800-8-BATTERY for informa-
tion on how to recycle this battery.
L'appareil que vous vous êtes procuré est alimenté par une
batterie au lithium-ion. Pour des renseignements sur le recyclage
de la batterie, veuillez composer le 1-800-8-BATTERY.
This battey pack is an approved replacement for the CF-
battery
VZSU30 or CF-VZSU30A.
Cette batterie peut être utilisée au lieu de la CF-VZSU30 ou
CF-VZSU30A.
Panasonic Corporation
Panasonic System Communications
Company of North America
3 Panasonic Way, Panazip 2F-5,
Secaucus, NJ 07094
Panasonic Canada Inc.
5770 Ambler Drive Mississauga,
Ontario L4W 2T3
Importer's name & address pursuant to the EU GPSD (General
Product Safety Directive) 2001/95/EC Art.5
Panasonic System Communications
Company Europe, Panasonic Marketing
Europe GmbH
Hagenauer Straße 43
65203 Wiesbaden
Germany
Web Site : http://panasonic.net/
BEDIENUNGSANLEITUNG

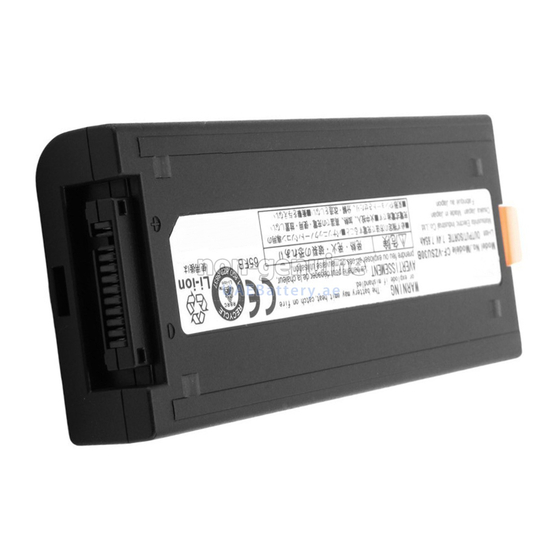

Battery Pack
CF-VZSU30BU
DFQX5566XA FJ0705-2012
DFQX5566YA FJ0705-1098
ENGLISH
The battery pack is designed for supplying power to the Panasonic
computer series. Before using the battery pack, read this Operat-
ing Instructions and the relevant portions of the computer's Op-
erating Instructions and Reference Manual carefully.
The battery pack is not charged when it is first purchased. Be sure
to charge it before using it for the first time.
Warning
Care should be exercised with regard to the following in order to
avoid the possibility of overheating, fire, or damage.
• Do not throw the battery pack into a fire or expose it to exces-
sive heat.
• Do not place the battery pack together with articles such as
necklaces or hairpins when carrying or storing.
• Do not insert sharp objects into the battery pack, expose it to
bumps or shocks, deform, disassemble, or modify it.
• If this product is subjected to a strong impact, stop using
it immediately.
• Do not short the positive (+) and negative (-) contacts.
• Do not charge, use, or leave the battery pack in a very hot
place, such as near a fire, in direct sunlight, in an automobile
on a sunny day, or in a cold place.
• This battery pack is to be used only in the computer(s)*
which it was designed. If it is used in other computers (for
which it was not designed), this may cause the generation of
heat, fire or explosion.
* For information about the computer(s) for which the battery pack can be
1
used, refer to the Operating Instructions of your computer, catalogs, etc.
When the Battery Pack Has Become Degraded, Replace It
•
With a New One
Continued use of a degraded battery pack may generate high levels
of heat, cause a fire to start and cause the pack to burst or explode.
Specifications
Type Li-ion
Voltage 7.4 V
Capacity 7.65 Ah (typical)/7.26 Ah (minimum)
Dimensions Approx. 143.5 mm x 21 mm x 59 mm
(W x H x D) {Approx. 5.69" x 0.83" x 2.32"}
Weight Approx. 335 g {Approx. 0.7 lb.}
Environment Temperature: 5 °C to 35°C {41 °F to 95 °F}
(In use) Humidity: 30% to 80% RH (No condensation)
Charging time
Model No.
Power on
CF-18B Series Approx. 7.5 h Approx. 4 h
CF-18D Series
CF-18F Series
CF-18G Series
CF-18H Series
* Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum
2
- Minimum)
* Measured using MobileMark™ 2002 (LCD brightness: 60 cd/m2)
3
When using the model except the above models:
Refer to the Operating Instructions about the charging time/
operating time.
Operating time
Power off
Approx. 5 h - 9 h
(Approx. 7 h)
