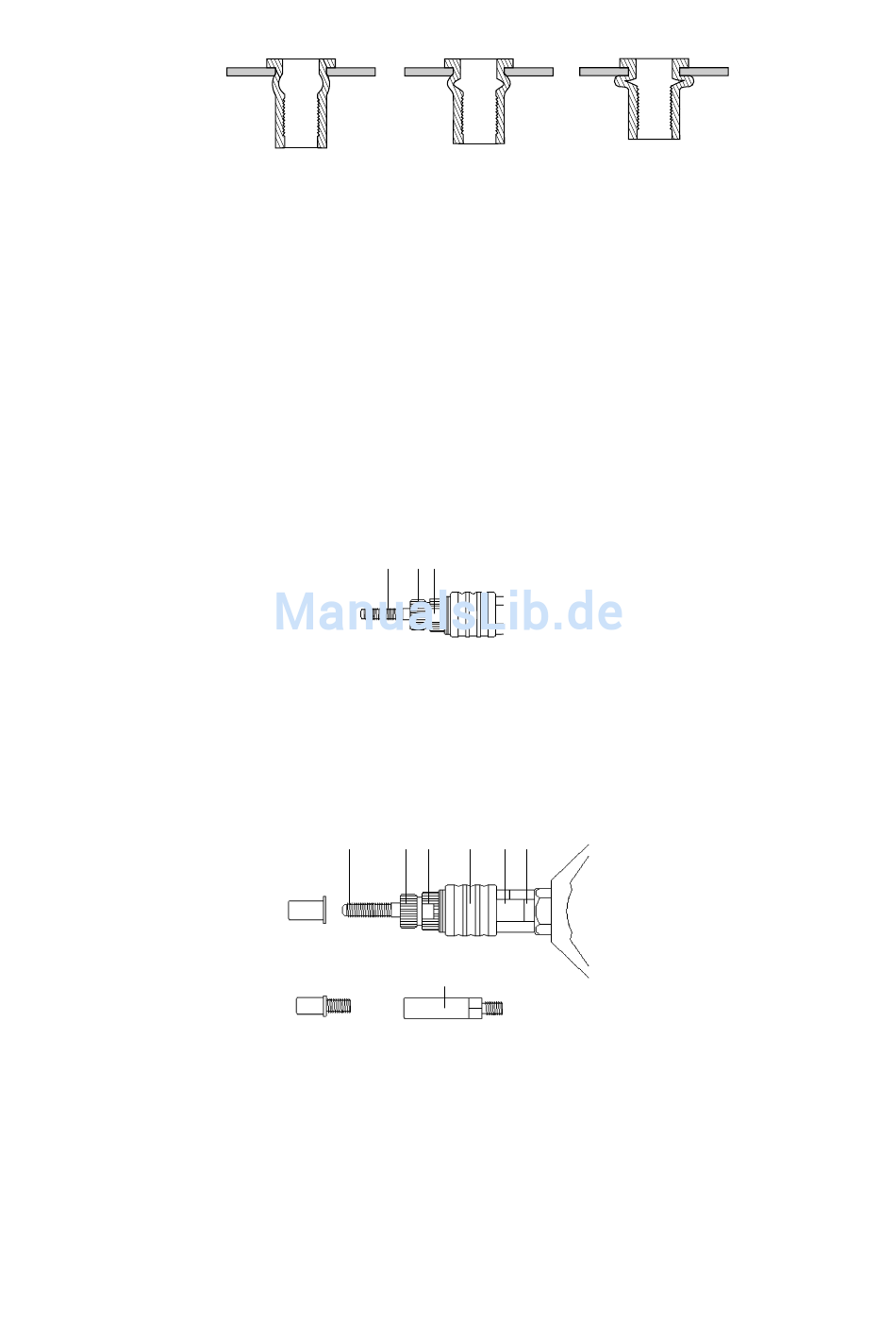

By setting a few nuts in a test plate of the material, the stroke can be checked.
Important:
The stroke setting should be done as described above. Only then a right functioning of this
tool can be guaranteed!
3. Set the right length of the mandrel for blind rivet nuts.
After setting the right stroke, open handles to stop;
Run nut with the spinner nut (F) onto the mandrel (E). Ensure that the nut has all
threads engaged. The mandrel should protrude slightly from base of the nut;
After setting the mandrel length, lock the anvil with the locknut (A).
4.2 To change mandrels/adapters
1 Release the contra nut (A) from the anvil;
2 Unscrew the anvil (B) from the tool;
3 Push the protective sleeve (C) forwards;
4 Push the security part (F) backwards and hold it in that position;
5 Unscrew the mandrel (E) or adapter (D) by turning it anti-clockwise;
6 Screw in the selected mandrel (E) or adapter (D) as far as the stop (turning clockwise);
11
not enough
E B A
E
B A
enough
C
F G
D
too much
