Connection Diagram - Caliber Rdd 575Bt Schnellstartanleitung

RDD S7SBT
Steeringwheel
control
(3.5mmjack)
Camera IN
(yellow RCA)
Video OUT
(yellow RCA)
Sub OUT
(green RCA)
Video IN
(yellow RCA)
Audio IN
Left (white RCA)
Audio IN
Right (red RCA)
Audio OUT
F-left (white RCA)
Audio OUT
Bright (red RCA)
Audio OUT
R-left (white RCA)
Audio OUT
R-right (red RCA)
RCA CONNECTIONS:
Yellow row:
Video input
AV in:
Camera back: Camera input
Video out: Video output
White row:
AUX in (L): Audio input - left channel
RCA out (R L): Audio output - rear/left
RCA out (F L): Audio output - front/left
Red row:
AUX in (R):
Audio input - right channel
RCA out (R R): Audio output - rear/right
RCA out (F R): Audio output - front/right

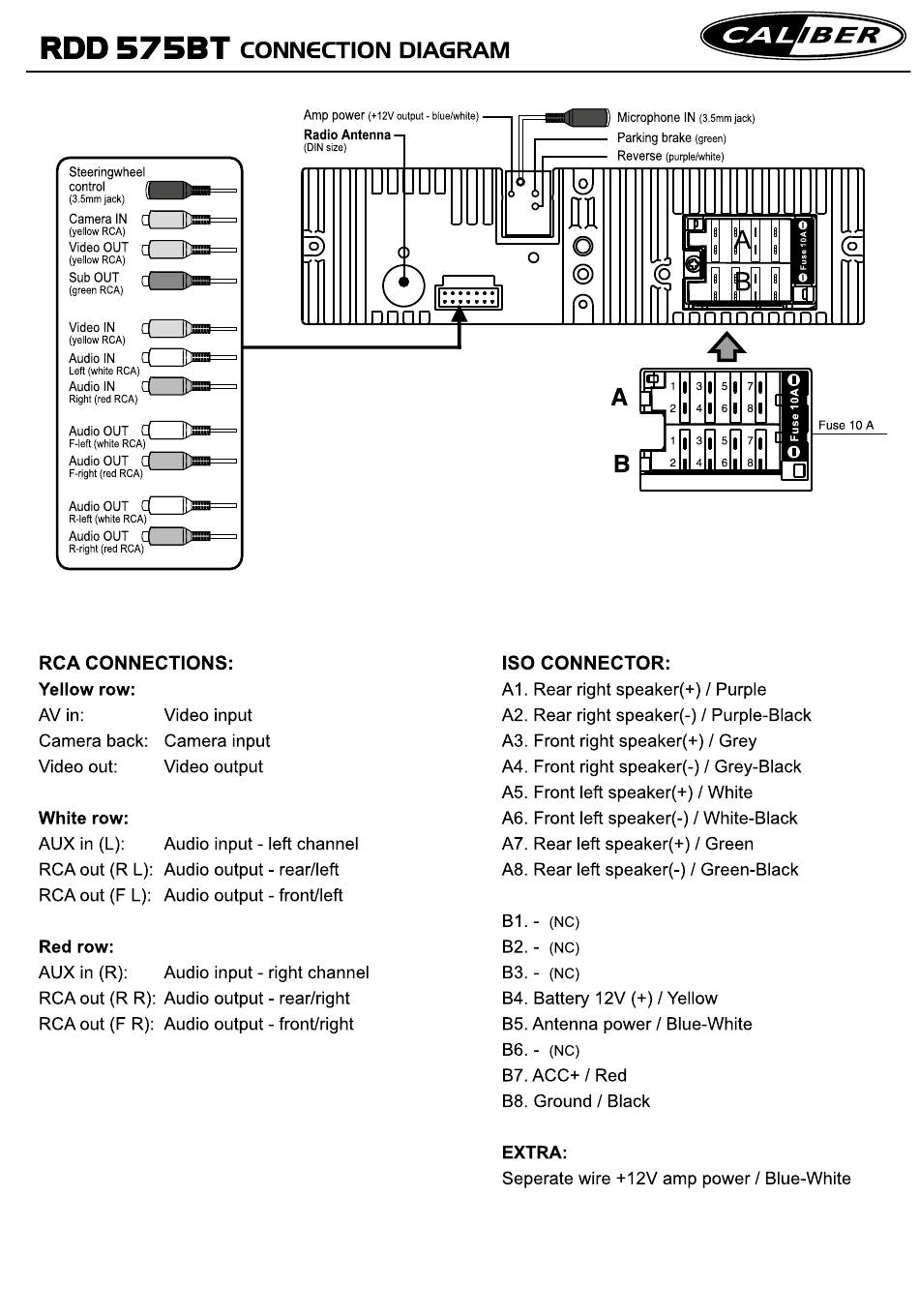

CONNECTION DIAGRAM

Amp power (+12V output blue/white)
Radio Antenna
(DIN size)
o
Microphone IN (35mm jack)
Parking brake (green)
Reverse (purple/white)
O
o
O
O
•SO CONNECTOR:
A1. Rear right speaker(+)
A2. Rear right speaker(-)
A3. Front right speaker(+) / Grey
A4. Front right speaker(-) / Grey-Black
A5. Front left speaker(+)
A6. Front left speaker(-) / White-Black
A7. Rear left speaker(+)
A8. Rear left speaker(-)
Bl.- (NC)
B2. - (NC)
B3. - (NC)
B4. Battery 12V (+) / Yellow
B5. Antenna power / Blue-White
B6. - (NC)
B7. ACC+ / Red
B8. Ground / Black
EXTRA:
Seperate wire +12V amp power / Blue-White
CAL 'BER -
o
Fuse 10 A
10
8
/ Purple
/ Purple-Black
/ White
/ Green
/ Green-Black
