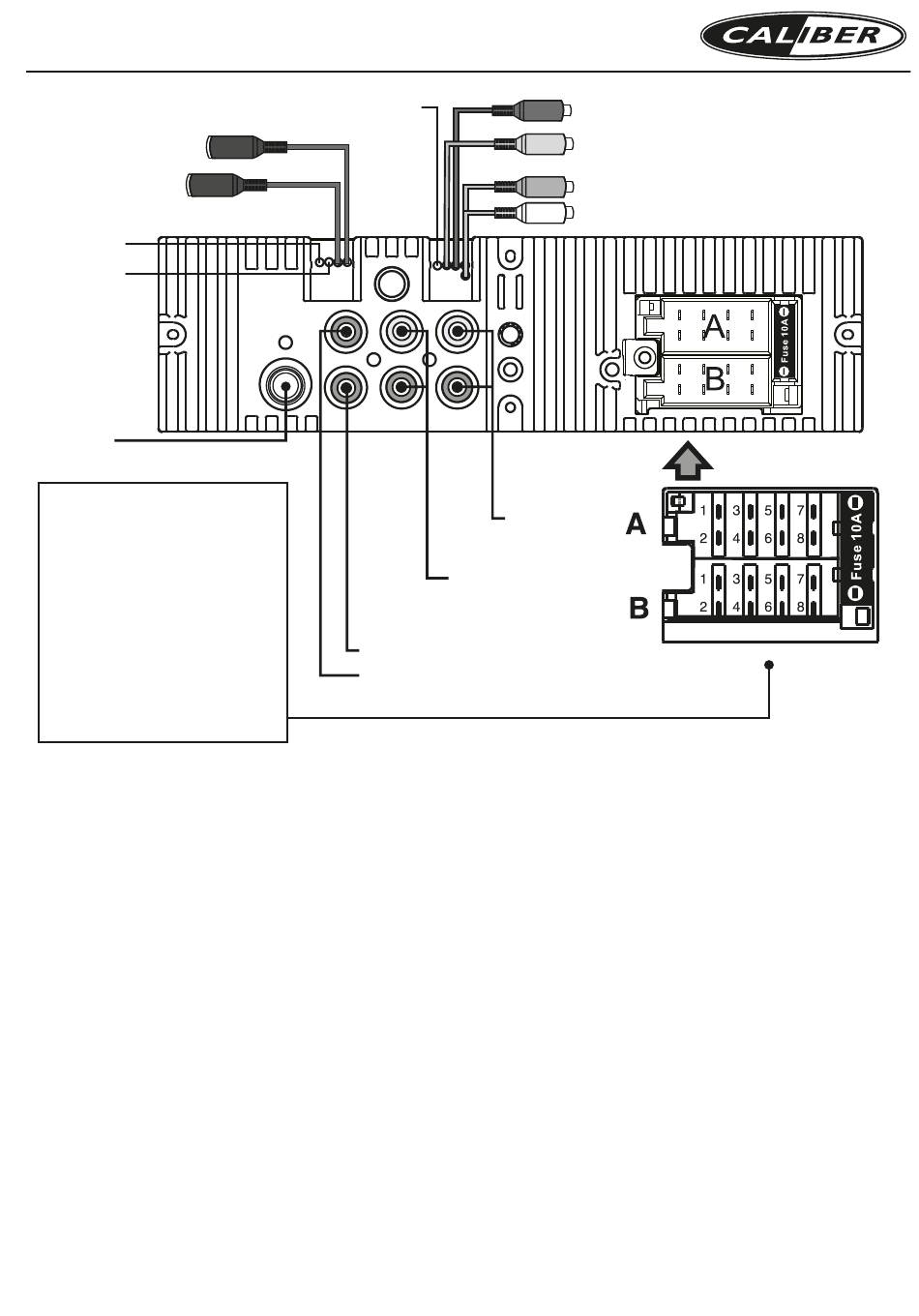

Connection Diagram - Caliber Rmd 574Bt Schnellstartanleitung

RMD 574BT
Microphone IN
(3.5mm jack)
Steering wheel control
(3.5mm jack)
Backup camera signal
(Purple-White)
Parking brake
signal (green)
Antenna IN
(DIN size)
ISO CONNECTOR:
A1. Rear right speaker(+) / Purple
A2. Rear right speaker(-) / Purple-Black
A3. Front right speaker(+) / Grey
A4. Front right speaker(-) / Grey-Black
A5. Front left speaker(+) / White
A6. Front left speaker(-) / White-Black
A7. Rear left speaker(+) / Green
A8. Rear left speaker(-) / Green-Black
B4. Battery 12V (+) / Yellow
B5. Antenna power • Remote / Blue-White
B6. Panel light / Orange-White(optional)
B7. ACC+ / Red
B8. Ground / Black

CONNECTION DIAGRAM

Antenna power / remote
(Blue-White)
Camera IN
Video OUT
Sub OUT
Video IN
Audio IN
Audio IN
Audio OUT
F-left (white RCA)
F-right (red RCA)
Audio OUT
R-left (white RCA)
R-right (red RCA)
(yellow RCA)
(yellow RCA)
(black RCA)
(yellow RCA)
Right (red RCA)
Left (white RCA)
