Part9 Outgoing line connection
diagram

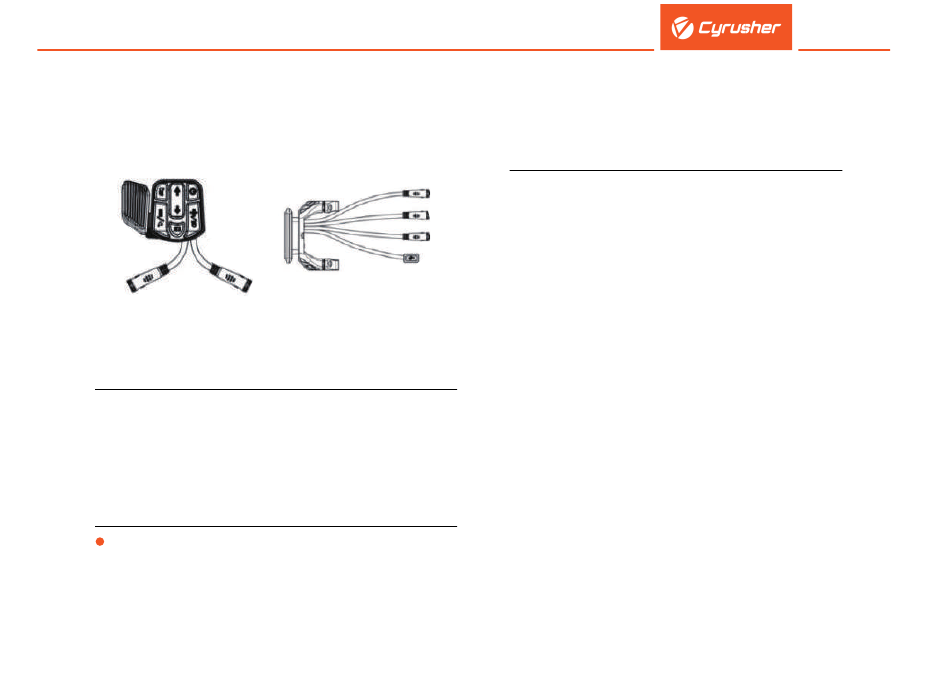

1.Wiring sequence of standard connector
Pushbutton
Outlet
Wiring Sequence of Standard Connector
Standard wiring Standard wire
sequence color
1 Red VCC
( )
2 Blue Kp
( )
3 Black GND
(
Green RX
4
( )
5 Yellow TX
( )
The outgoing lines of some products adopt waterproof
connectors, and users cannot see the outgoing line color
inside the wire harnesses.
Instrument
Outlet
Function
Power cord of display
Power control line of
controller
Ground wire of display
)
Data receiving line of
display
Data transmission line
of display
Exhibit 1:Error Code Defi nition Table
Protocol 2 Error Code:
Error
Code Status Meaning Processing mode
Error05 Brake failure Brake is in place;Replace
Brake Handle
Error06 Battery undervoltage Need battery charging
Error07 Motor Failure Check if the power cable is
loose
Error08 Handlebar Failure Turnbuckle return to
position; check turnbuckle
link, if normal then need to
replace the turnbuckle
Error09 Controller failure Check controller hall
connection
Error 10 Communication Check meter cable
Receiving Failure connection
Error 1 1 Failure of Check if the
communication instrument cable is
transmission connected
