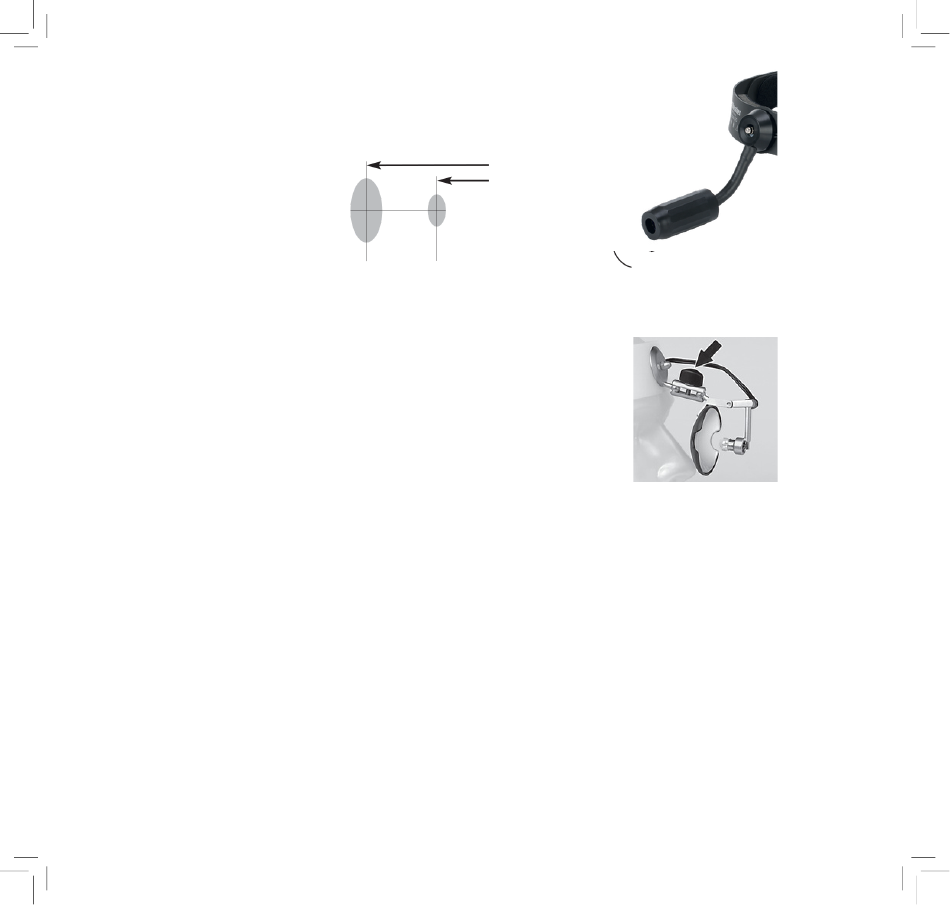

2.3.6 Focussing ri-focus® LED
Focus by turning the front lamp head.
ead.
Circle of light max. diam. 200 mm
Circle of light min. diam. 40 mm
clar N 55
Manually moving the lamp fixture towards and away from the mirror.
2.3.7 Attaching the headlight / the head mirror ri-focus® LED
The lamp head is firmly fixed to the headband and can only be exchanged together with the
headband.
clar N
By opening the plastic screw, the clamping unit located on the headband is opened up
until the ball-and-socket joint on the mirror fits. Attach the mirror by turning the plastic
screw tightly on the headband.
Attention!
Before exchanging the complete mirror, the electric plug located on the joint of the
lamp has to be pulled out. After the mirror has been exchanged, the plug can be pushed
back in again.
If the lamp does not function after plugging the cable back in again, the plug has to be rotated
180° and plugged in again.
Attention!
• Never touch the lamps during use.
They can get very hot!
• In the case of model ri-focus® LED only touch the ring at the front of the lamp head or the grip at the rear
• of the lamp head during operation. All other parts can heat up considerably.
• In the case of clar N model, you can touch the following parts during operation: the plastic shell on the mirror, the adjusting
knob and the swivel arm.
Distance
400 mm
200 mm
120 mm
30mm
