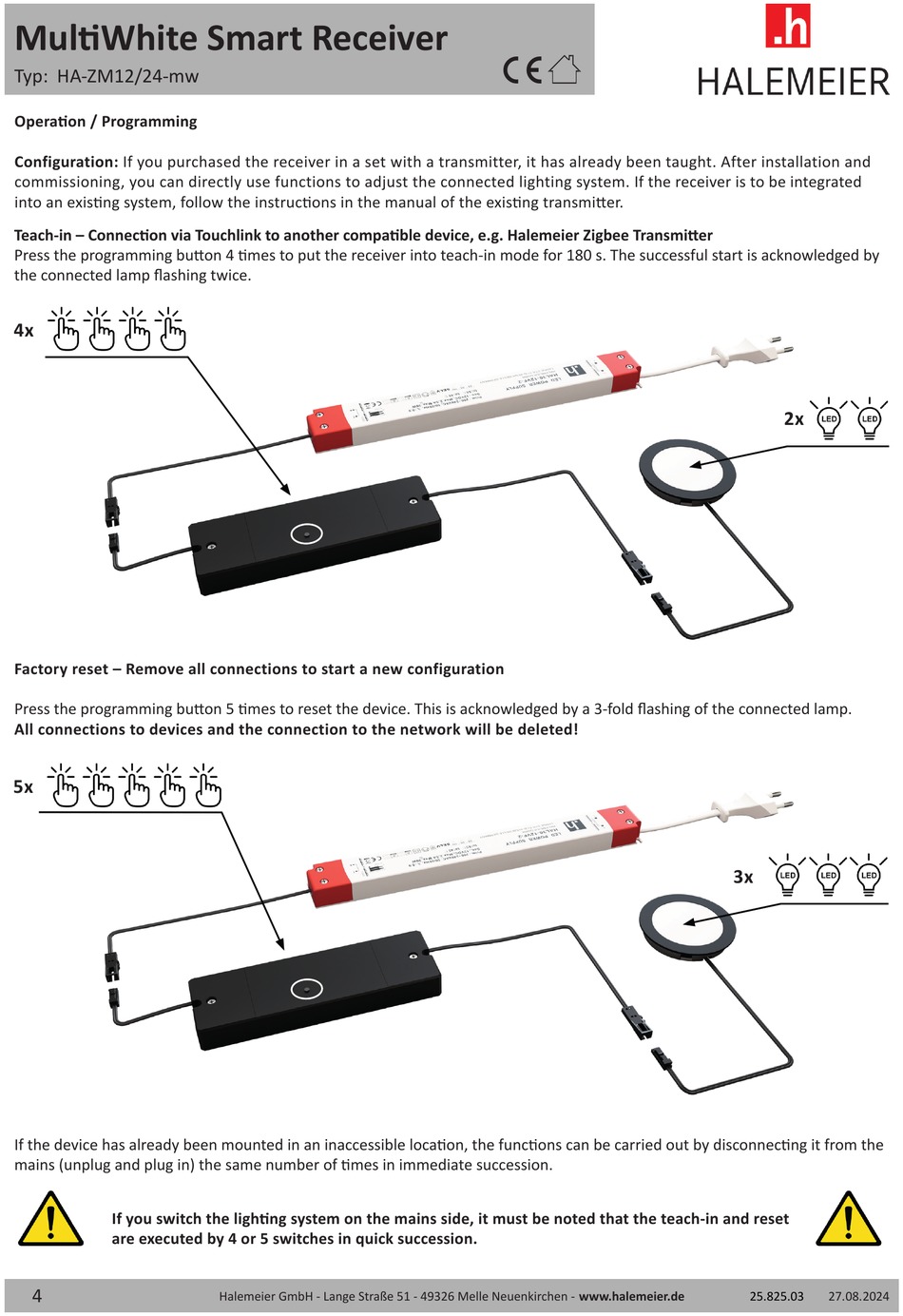

MultiWhite Smart Receiver
Typ: HA-ZM12/24-mw
Operation / Programming
Configuration: If you purchased the receiver in a set with a transmitter, it has already been taught. After installation and
commissioning, you can directly use functions to adjust the connected lighting system. If the receiver is to be integrated
into an existing system, follow the instructions in the manual of the existing transmitter.
Teach-in – Connection via Touchlink to another compatible device, e.g. Halemeier Zigbee Transmitter
Press the programming button 4 times to put the receiver into teach-in mode for 180 s. The successful start is acknowledged by
the connected lamp flashing twice.
4x
Factory reset – Remove all connections to start a new configuration
Press the programming button 5 times to reset the device. This is acknowledged by a 3-fold flashing of the connected lamp.
All connections to devices and the connection to the network will be deleted!
5x
If the device has already been mounted in an inaccessible location, the functions can be carried out by disconnecting it from the
mains (unplug and plug in) the same number of times in immediate succession.
If you switch the lighting system on the mains side, it must be noted that the teach-in and reset
are executed by 4 or 5 switches in quick succession.
4
Halemeier GmbH - Lange Straße 51 - 49326 Melle Neuenkirchen -
cq
www.halemeier.de
2x
3x
25.825.03 27. 08. 2024
