Before assembling the stand, please take
a look at the list below. Your stand comes
with the following parts and mounting
hardware.
Short Angle Brace:
•
Shorter Angle Brace:
•
• Long Angle Brace:
• Longer Angle Brace:
• Round Head Bolt M8x12:
• Hex Nut M8:
Flat Washer8:
•
Hex Bolt M6x16:
•
• Flat Washer:
• Rubber Feet:

Stand Assembly

Take the two short and the two longer
angle braces out of the box and put it on
the floor. Now take the four legs upside
down, and attach them to the four braces
using 1/4" x 1/2" nuts and bolts. (Finger
tighten) See Figure-1.

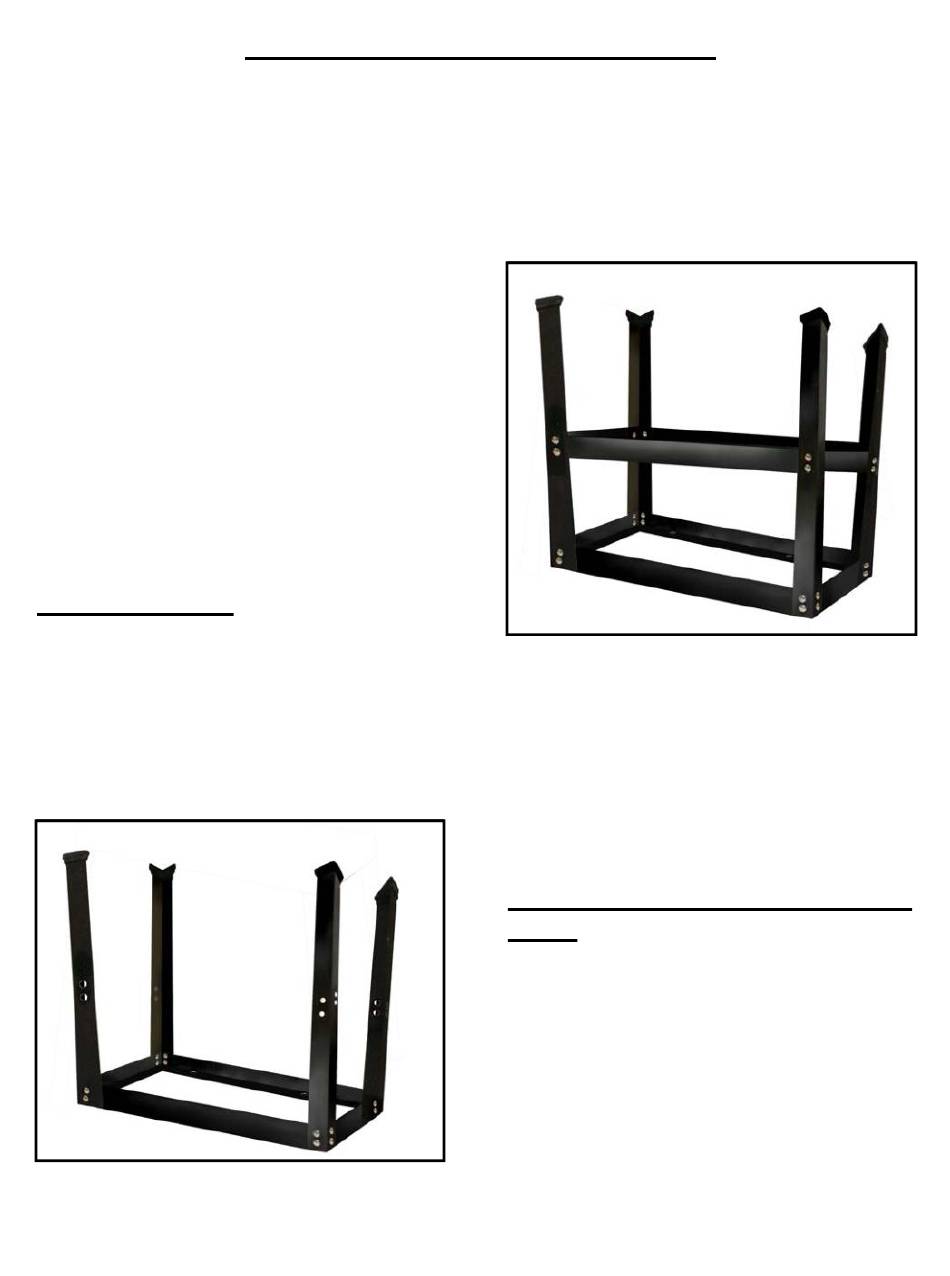

Figure-1 Attaching legs to the braces
ASSEMBLY & INSTALLATION
2-pcs
2-pcs
2-pcs
2-pcs
32-pcs
32-pcs
32-pcs
4-pcs
4-pcs
4-pcs
Now, mount the two other longer and the
two short angle braces to the legs with the
help of the nuts and bolts, (Finger
Tighten). See Figure-2
Figure-2 Attaching the middle braces to
the legs
Now, turn the stand upright and adjust the
legs so that they are evenly positioned,
tighten all the screws well.
Installing the Router Table on the
Stand
Take the router table and put it upside
down on the floor or bench. The router
table and the upper braces of the stand
feature 4 holes to mount the router table
to the stand. Position the stand inverted,
on the router table so that the holes are
aligned and then mount it with the help of
washers and bolts provided, (Finger
Tighten). See Figure-3
