Jungle Gym Bridge Module 2.1 Montageanleitung Seite 4

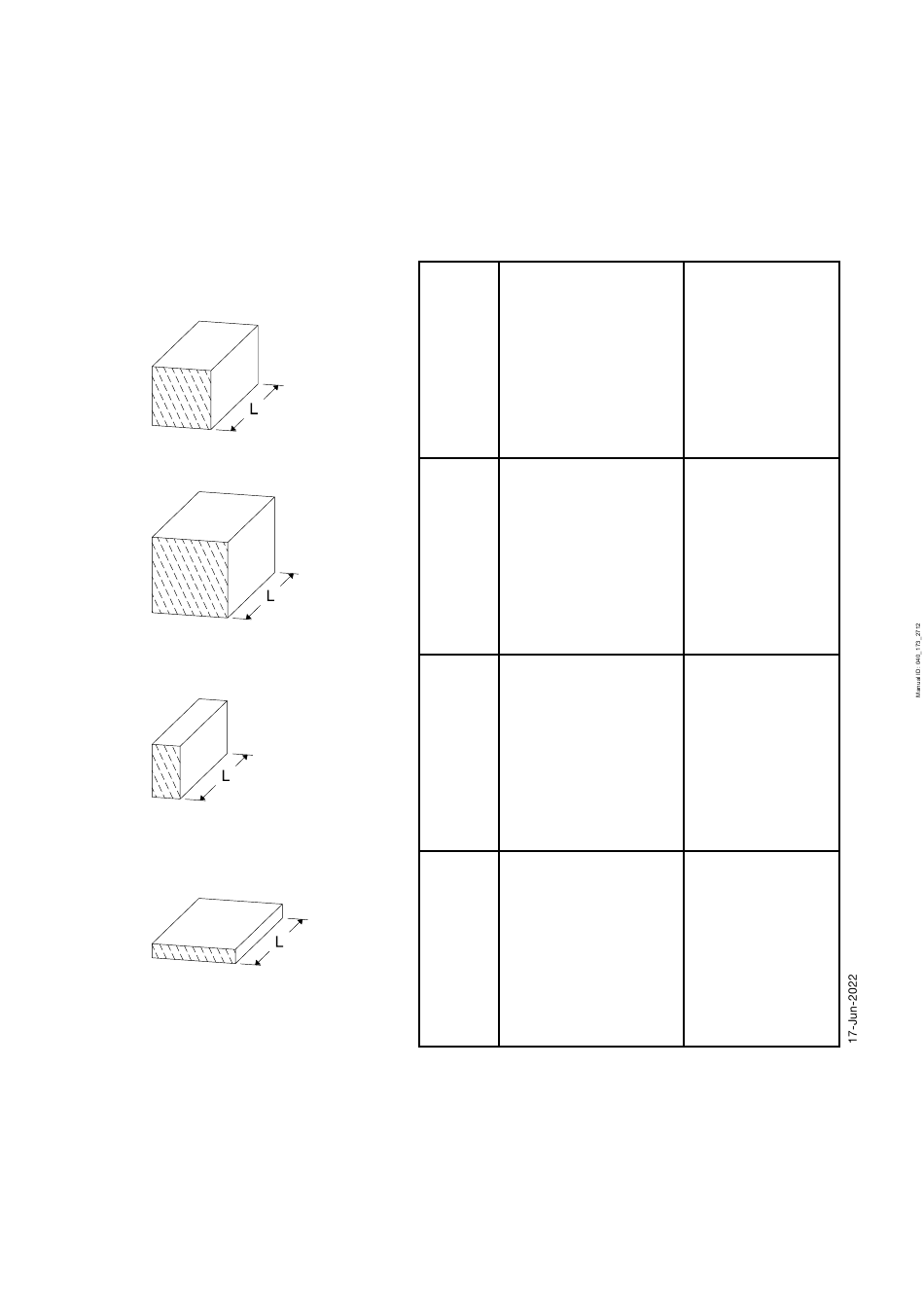

Identifying and inventorying of the individual timber parts
Identifizierung und inventarisieren der der einzelnen Holzteile
Identification et inventorier les pièces en bois individuels
A
A
A
A
B
B
B
B
C
C
C
C
D
D
D
D
4
