Jungle Gym Bridge Module 2.1 Montageanleitung Seite 20

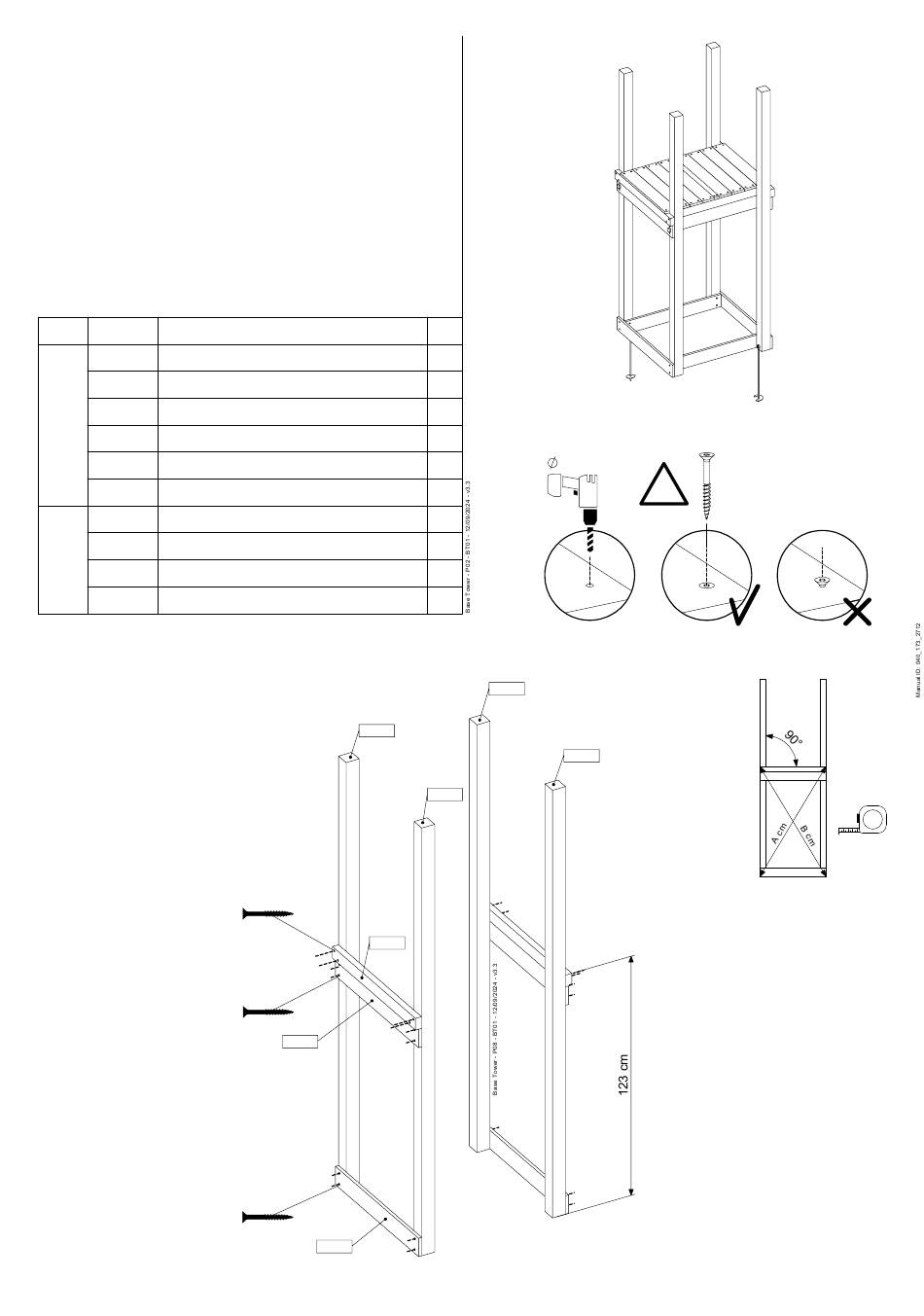

02 Base Tower
BT01
Assembly Pack: 194_100
PartNo
001_406 Stealth Screw 8x45
002_220 Gap Point Screw T25 - 5x45
002_223 Gap Point Screw T25 - 5x80
Hardware
+
Parts
007_001 Ground-anchor
022_31x bpc-base version 3
022_84x bpc cover
A200 Post ca.70x70 L2000
C74 Beam 740 mm
Timber
D60 Board 600 mm
D74 Board 740 mm
02-1
20
Design Code: mRxu0D © 2025 Jungle Gym B.V. Copyrighted material. All rights reserved. Single-owner licensed. No part of this document may be reproduced or utilized otherwise
in any form or by any means,
PartName
A200
80
C74
45
D74
45
D74
electronic or mechanical, including photocopying,
QTY.
6
72
16
2
3.5mm
4
4
4
4
10
8
A200
A200
A200
or posting on the internet
!
SAFETY
SW file: Manual Modular AL_Base Tower_v3.
SW file: Manual Modular AL_Base Tower_v3.3
or an intranet, copying and networking
cm
A = B
prohibited.
