Samson Mic Splitter Schnellstartanleitung Seite 4

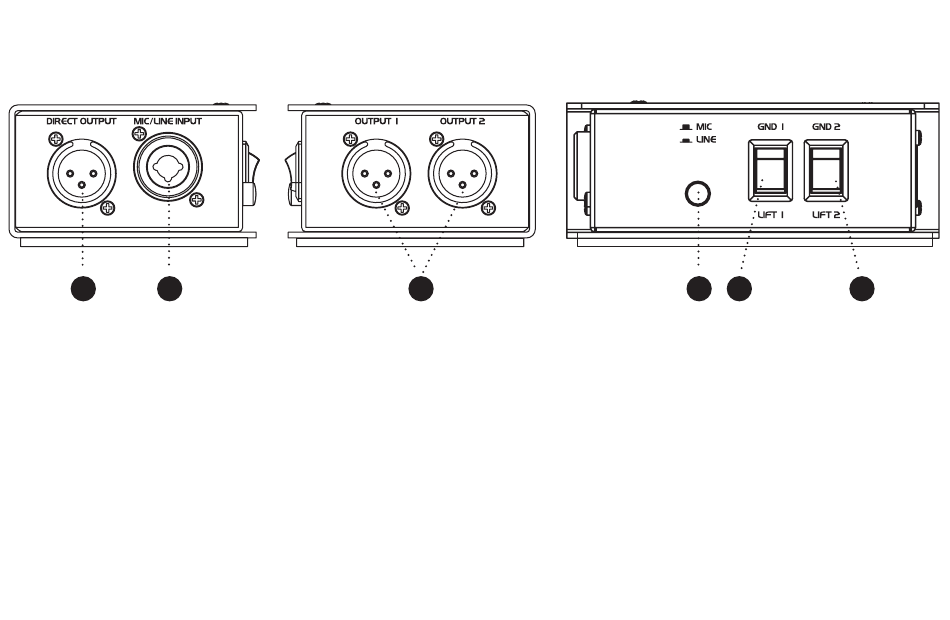

Callouts
2 1
1. COMBO INPUT – XLR / 1/4" TRS input for mic- or line-level signals.
2. DIRECT OUT – Direct XLR output for sending an unaltered signal to a primary destination and
supplying +48v phantom power to the microphone.
3. ISOLATED OUT 1 / ISOLATED OUT 2 – Transformer-isolated XLR outputs for feeding additional mixers,
monitors, or broadcast systems.
4. GROUND LIFT 1 (OUTPUT 1) – Lifts the ground on isolated output (1) to further reduce noise in
complex setups.
5. GROUND LIFT 2 (OUTPUT 2) – Lifts the ground on isolated output (2) to further reduce noise in
complex setups.
6. MIC/LINE PUSH BUTTON SWITCH – Switches the input between mic and line level.
3 6 4 5
