Commend GE 50 Kurzanleitung

Compact Intercom Server GE 50

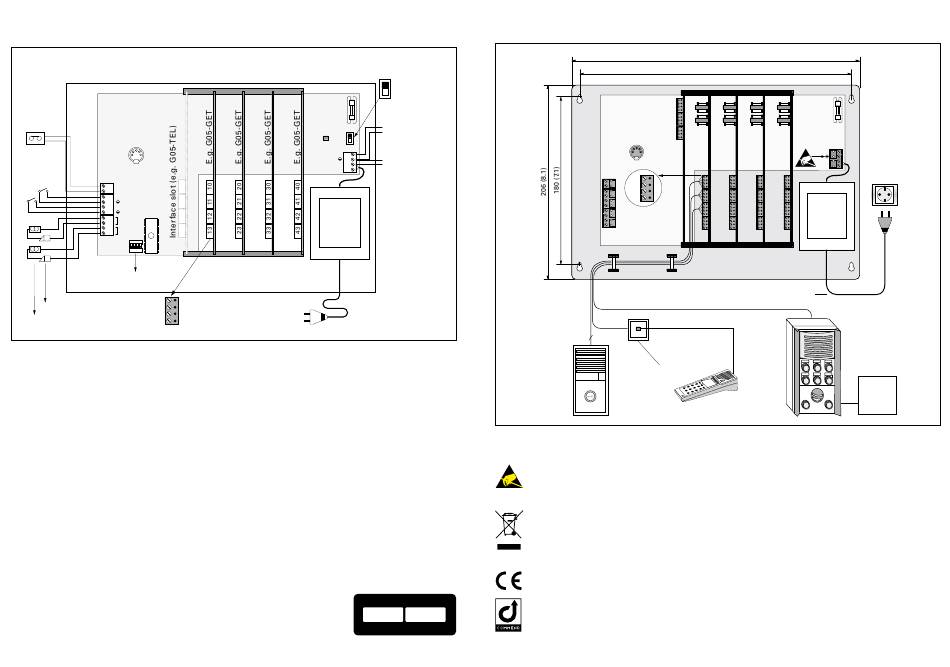

Overview
Slot number
GE 50
A
Music /
Alarm
input
Programming
Floating
plug
contacts
MUSIC
IN1
IN2
S1
S2
ON
OFF
DIP switches
e.g.:
A
Door opener B
C
Power supply
D
Pre-configuration
• Slot 1 – subscriber 1: call number "10" (master station); at this Intercom station, all conversations
arrive fixed as privacy calls
• Direct dialling for the entire central: "0" = "10"
• Slot 1 – subscriber 3: door opener with relay "S1"
• Slot 1 – subscriber 4: door opener with relay "S2"
• Slot 1 – subscriber 2 to 4: for the substations, "disable after dialling" is configured
Configuration note
For the configuration, the programming kit G-KIT is required.
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Only use recommended tools when installing the device.
• Do not place the device in areas where it may become wet or damp, and avoid dusty, humid and
high temperature environments.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Only accessories that comply with the device's technical specifications shall be used.
• Before using the device, ensure all cables are connected correctly and not damaged.
• Disconnect the power cable from the device for any maintenance.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Latest software and documentation
To download the latest software and documenation, enter the PIN code to the
right at pin.commend.com.
Power
1 2 3 4
Status-
LED
+30V
24 VAC
24 VAC
Subscriber numbers
with standard programing
PIN CODE
7AWSB
pin.commend.com
Dimensions
Measuring units in mm (in), not to scale!
ON
OFF
optionally:
30 VDC
+
output
-
max. 100mA
-
30 VDC
+
supply
optionally
instead of
24 VAC
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
MUX7CZ
equipment (directive 2011/65/EU)
For technical specifications, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-GE50, Version: 1.4/0514
306 (12.1)
290 (11.4)
GE 50
A
B
C
D
Cable bearer
4
/
4
/
4
Modular socket 8/8
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Grounding
point for
wrist strap
grounding
+30V
110 cm
(4.3 inch)
24VAC
supply
