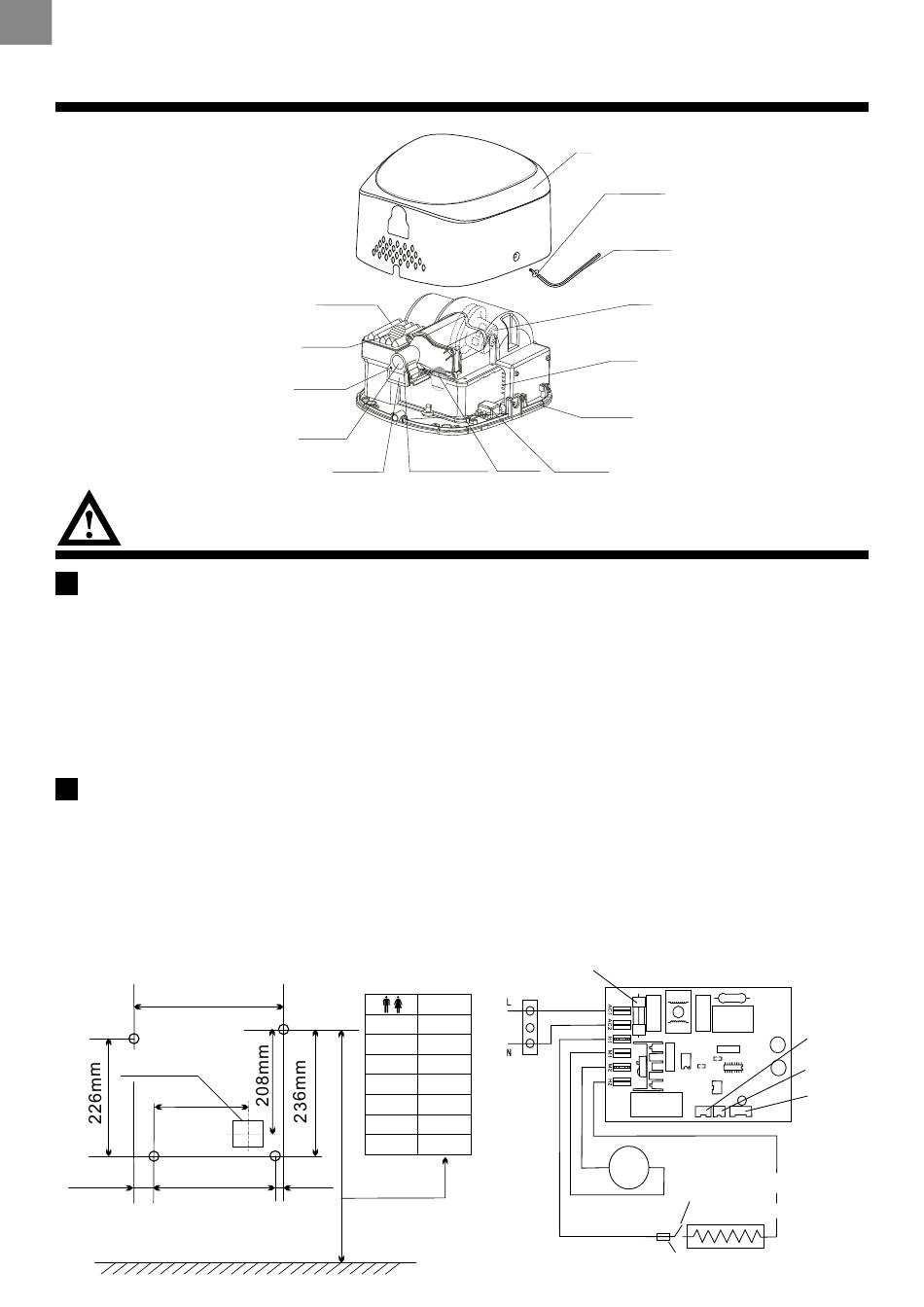

Parts description

Safety precautions before installation
Places where the hand dryer should NOT be installed to avoid damage
Do not install where the temperature may exceed -10°C or + 40°C.
•
Do not install where the hand dryer could come into contact with water.
•
Do not install where the hand dryer is exposed to strong sunlight.
•
Do not install where there is high air humidity and condensation.
•
Do not install where there is a corrosive, oxidising and compressed gas.
•
Do not install where altitude is – 20 m below sea level or in places with altitude is 2000 m
•
above sea level.
Recommended height installation / Electrical wiring diagram
The below diagram is showing the recommended height installation.
•
The bottom part of the hand dryer must be at least 150 mm above the floor or above any
objects that are below the hand dryer.
Leave a smaller clearance from the walls especially mirrors of no less than 100 mm,
•
surrounding objects can be splattered with water droplets.
Do not install the hand dryer in places where it could be hit by doors or passing people.
•
• Always choose a completely flat surface for mounting of the hand dryer.
217mm
terminal
connection
box
145mm
18mm 196mm
Air intake
HEPA filter
Stand by LED
Air nozzle
Motion sensor
3mm
floor
LED indication
Heating
ON/OFF
155cm
180cm
148cm
170cm
141cm
160cm
power
150cm 134cm
127cm
140cm
130cm 120cm
main
113cm
120cm
control
board
3
Case cover
Recessed screw
Allen key
Motor
Main control board
Base plate
Terminal box cover
fuse
motor
thermal protection sensor
heating element
thermal circuit perotection
indication
status
ON/OFF
temperature
sensors
receiving
sensors
