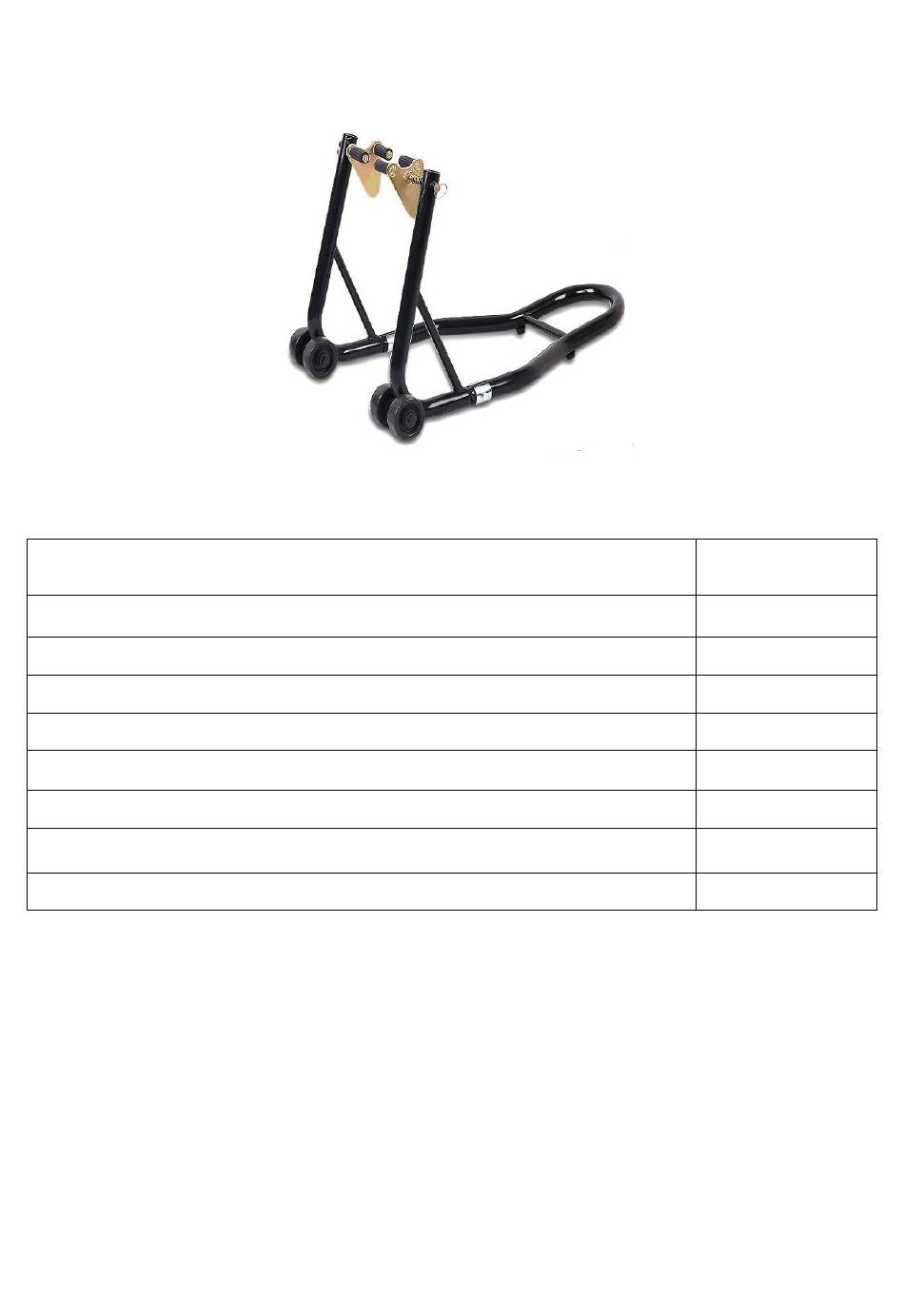

Accessories Of Front Stand
M8 Screw, washer and lock-nut set
M10 Screw, washer and lock-nut set
Assembling Instructions of the Front Stand
A. Assemble the wheels on both sides of the frame and then Insert both pieces of
frames.
B. Place M8 screws through the holes of clamping pieces and the frame, and
make sure that the connecting part are covered with clamping pieces on both
sides. Then add washers and use tools to tighten with the lock-nuts.
C. Insert adaptors on the top of the both frames with wheels, then locked with the
R pins.
Figure 1
Description
Main frame
Frame for wheels
Front adaptor with spring
Black wheel
R pin
Clamping piece
- 4 -
Qty
1
4
2
2
4
2
2
4
