Installation / connection

Installation on the control unit
Installation on the device
1. Disconnect the control panel from the power supply unit.
2. Insert the connecting terminal into the slot provided.
3. Carefully route the cable from the light sensor into the groove provided.
4. Then place the control panel in the frame and insert this into the power
supply unit.
Window mounting:
The glass must be thoroughly cleaned before affixing the light sensor.
Affix the light sensor to the window with the suction cup at the desired position.

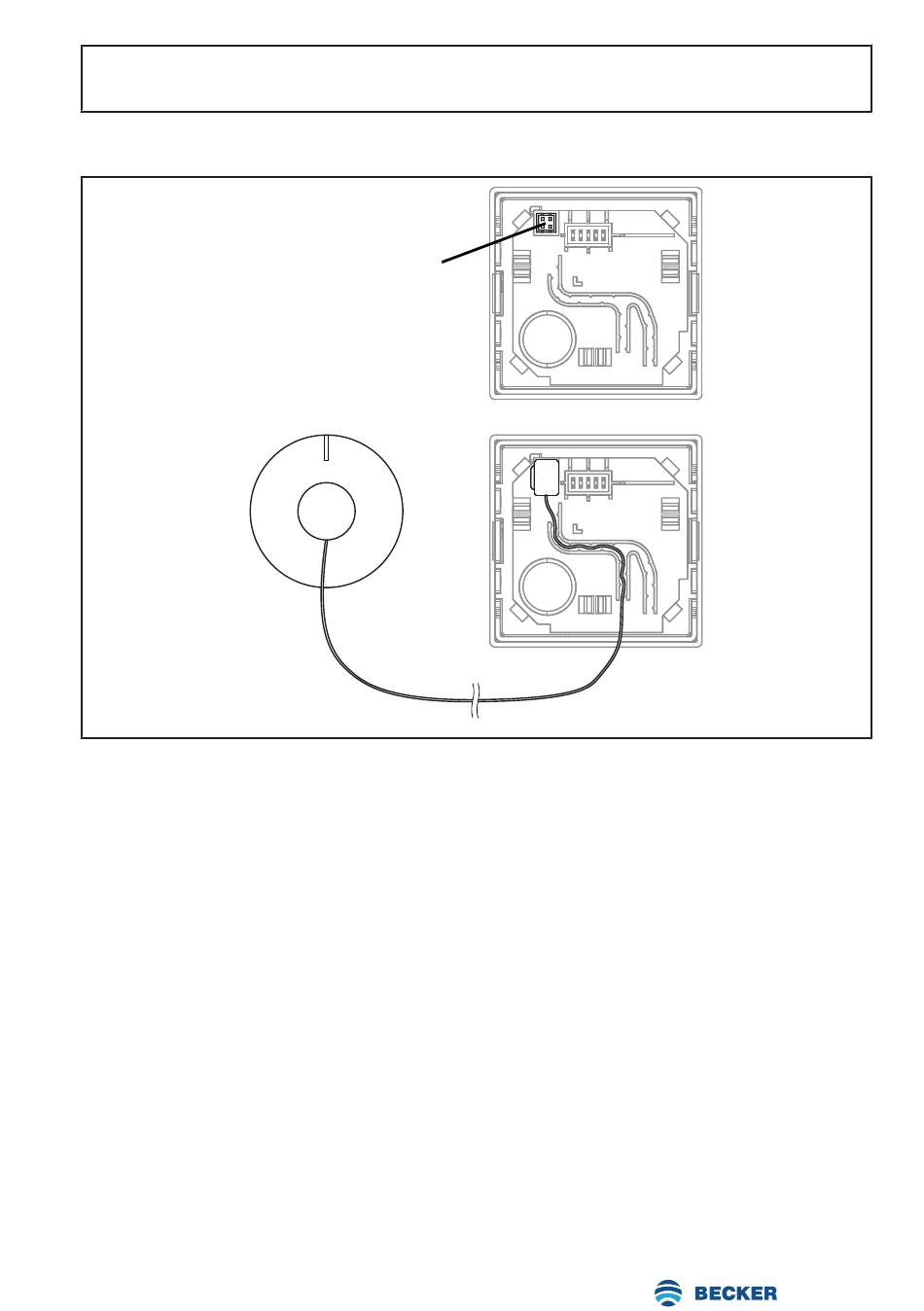

Slot for the
light sensor
