EVT1600SE/EVT1800SE/EVT2000SE

Quick Installation Guide

Please read the safety and installation instruc-

tions below. More technical documents can be

found at www.envertec.com.

1. Accessories

AC Extension Cable*

T Connector*

Trunk Cable*

M8 x 25 mm Screws* (Prepared by Installer)

Microinverter Disconnector*

BC01-BC05 Converter*

Trunk Cable Disconnector*

AC Connector

Wi-Fi Antenna

Male End Cap* (Optional)

* Accessories are not included in the package

and can be purchased separately.

Note: For 1 microinverter, use AC Extension

Cable Plug.

A B C

En v e rte ch ( Sh an g ha i ) C o r po r a ti o n L T D.

O p e r a ti n g R a ng e ( Vdc) :

1 6V ~ 60 V

N o rm a l Vol t a ge ( Va c ):

L / N /PE, 2 20 V/2 30V

O VER25:202 0,NA/ EEA-NE7 - C H:2 0 2 2 , C 1 0 / 1 1 :20 1 9 , U TE C1 5 -7 1 2 - 1 : 2 013

IEC/EN 6 210 9 - 1 / - 2 ,IEC / EN 6 100 0-3 -2/-3 , I EC/EN 6 1 0 0 0 - 6 - 1 /- 2 /- 3 / - 4

IEC/EN 5 501 4 - 1 / - 2 , E N 5 0 5 4 9 - 1 :2 01 9 , VDE-AR -N 4 1 0 5 : 2 0 18,T OR 2 019

ww w. en ve rte c. co m

M a x . I n pu t C o nt i n uo u s C u r r e n t ( A):

M PP T Vol ta ge R a n ge ( Vdc ):

M a x . DC I n p ut ( Vdc) :

2 2V~ 5 0V

2 0Ax 4

6 0V

Cu r r e n t ( M a x . C o n ti n uo u s) ( A):

N o rm a l F r eq ue ncy (Hz ):

Po w e r F a c tor R a ng e:

+ /- 0.90

5 0H z/ 60 Hz

Addre ss:Building C , No. 8 Shi y uan Road,Songjiang Dis t r ic t , Sh an g ha i

VF R 2 0 19 ,CEI 0 -21 : 2 0 19,201 6/6 3 1 EU - (NC R fG),IEC /EN 6 29 2 0: 2 01

In gr ess Pr o te cti o n (IP) :

M a x . I n pu t Sho r t -C i r cu it C u r r e n t ( A):

2 5Ax 4

I P67

O v e rvo lta ge C a te go ry:

Pr o te c tive C l a s s :

O VC I I I ( AC M a i n ) ,O VC I I ( PV)

Cla ss I

Us e r I d en t ific at i o n N u m b e r

Po w e r ( M ax . C o n ti n uo u s) (W ):

T em p er atu r e(℃ ) :

- 40℃ t o + 65 ℃

2. Create an Installation Map

a. Download the installation map with this QR

code and print out the map.

Installation Map

b. Stick the serial number label from each mi-

croinverter to the installation map on the re-

spective locations of the array.

Envertech(Shanghai)Corporation LTD.

Operating Range (Vdc):

16V~60V

www.envertec.com

MPPT Voltage Range (Vdc):

22V~50V

IEC/EN 62109-1/-2,IEC/EN 61000-3-2/-3,IEC/EN 61000-6-1/-2/-3/-4

Max. DC Input (Vdc):

60V

IEC/EN 55014-1/-2,EN 50549-1:2019,VDE-AR-N 4105:2018,TOR 2019

Max. Input Continuous Current (A):

OVE R25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTE C15-712-1:2013

20Ax4

VFR 2019,CEI 0-21:2019,2016/631 EU - (NC RfG)

Max. Input Short-Circuit Current (A):

25Ax4

Address:Building C, No. 8 Shiyuan Road,Songjiang District,Shanghai

Ingress Protection (IP):

IP67

Power (Max. Continuous) (W):

2000W

User Identification Number

c. Keep a copy of the map for future reference.

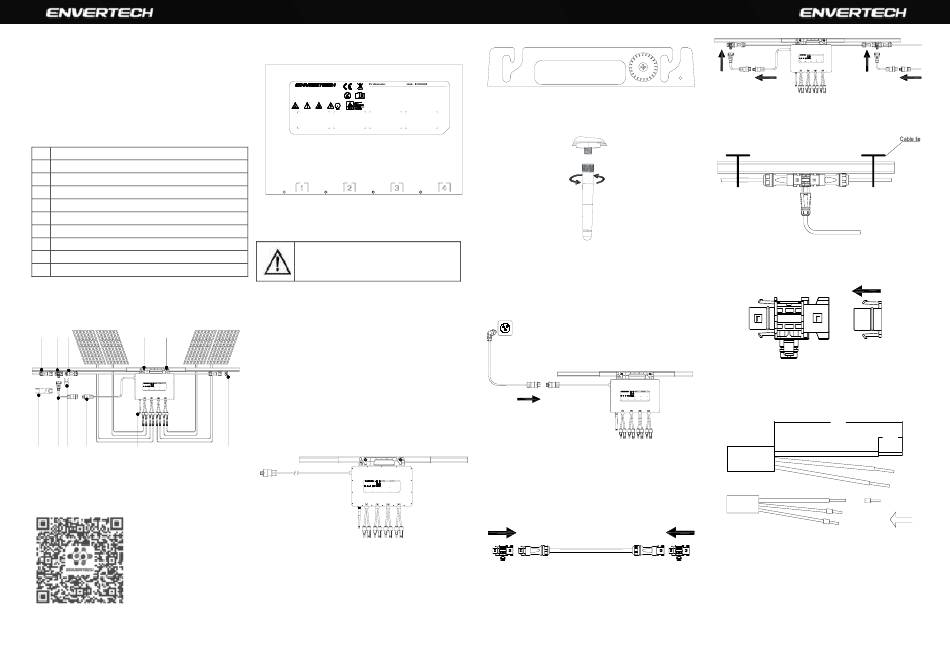

3. Installation Steps

Installation could only be implemented when the

system is disconnected from the grid, and the

solar panel has been covered or disconnected.

Step 1. Verify the voltage range

Verify the grid and PV panel voltages are within

the microinverter voltage range.

Step 2. Mount microinverters

Mark out the estimated center of 4 PV modules

on the rack to mount the microinverter.

Mount all microinverters under modules to avoid

rain and sun. Make sure you can see the LED

light.

Note: Please make sure that there are less than

2 units of EVT1800SE/EVT2000SE or less than 3

units of EVT1600SE in each branch (12AWG).

The maximum number per 10 AWG branch is 3

for EVT1800SE/EVT2000SE or 4 for EVT1600SE.

Envertech(Shanghai)Corporation LTD.

Operating Range (Vdc):

16V~60V

Normal Voltage (Vac):

L/N/PE,220V/230V

IEC/EN 62109-1/-2,IEC/EN 61000-3-2/-3,IEC/EN 61000-6-1/-2/-3/-4

www.envertec.com

Max. DC Input (Vdc):

MPPT Voltage Range (Vdc):

22V~50V

Current (Max. Continuous) (A):

Normal Frequency (Hz):

7.27A

OVE R25:2020,NA/EEA-NE7-CH:2022,C10/11:2019,UTE C15-712-1:2013

IEC/EN 55014-1/-2,EN 50549-1:2019,VDE-AR-N 4105:2018,TOR 2019

Max. Input Continuous Current (A):

20Ax4

60V

Power Factor Range:

50Hz/60Hz

+/-0.90

VFR 2019,CEI 0-21:2019,2016/631 EU - (NC RfG),IEC/EN 62920:2017

Address:Building C, No. 8 Shiyuan Road,Songjiang District,Shanghai

Max. Input Short-Circuit Current (A):

Ingress Protection (IP):

25Ax4

Overvoltage Category:

Protective Class:

OVC III(AC Main),OVC II(PV)

Class I

Power (Max. Continuous) (W):

1600W

IP67

Temperature( ℃ ):

-40 ℃ to +65 ℃

User Identification Number

Step 3. Ground the system

Microinverters and modules must be connected

to the ground. Fix the screws to the microinvert-

er installation hole. Make sure that the ground-

ing screw thread is firmly connected the bracket.

Normal Voltage (Vac):

L/N/PE,220V/230V

Current (Max. Continuous) (A):

9.09A

Normal Frequency (Hz):

50Hz/60Hz

Power Factor Range:

+/-0.90

Step 4. Install the Wi-Fi antenna

Protective Class:

Class I

Overvoltage Category:

OVC III(AC Main),OVC II(PV)

Temperature( ℃ ):

-40 ℃ to +65 ℃

Rotate the antenna clockwise until it is firmly

secured to the microinverter.

Step 5. Connect to the grid

a. Connect one microinverter in the system.

1) Connect the AC connector of the micro-

inverter to the female connector of the AC

extension cable plug, then insert the plug

into the socket.

b. Connect multiple microinverters in the sys-

tem.

1) Connect the trunk cable with T-connector

Plan each cable segment to allow T-

connectors on the trunk cable to align with

each PV module. Allow extra length for slack,

cable turns, and any obstructions.

2) Connect to the trunk cable

Connect the male AC connector to the BC01-

BC05 converter. Connect the BC01-BC05 con-

verter to the T-connector of the trunk cable.

3) Fasten cables

Fasten AC cables and trunk cables to the rack

with cable ties.

℃

4) Cover any unused connector with end caps

Insert the end cap into the connector on the

unused end, and check if it is inserted in place.

5) Remove the skin of the two ends of the ex-

tension cable by y=40mm and remove the

skin of internal wires by x=14mm. Set the
