D) Using the V-Mount 4Slot XLR Charger
- 1 -
AC POW
ER
CHA RGIN
G
L1
L2
R1
R2
ONL INE
L1
L2
R1
R2
DISC
HAR GING
L1
L2
R1
R2
DC OU
TPU T
MAX
(16.5
75W
V
4.5A )
- 4 -

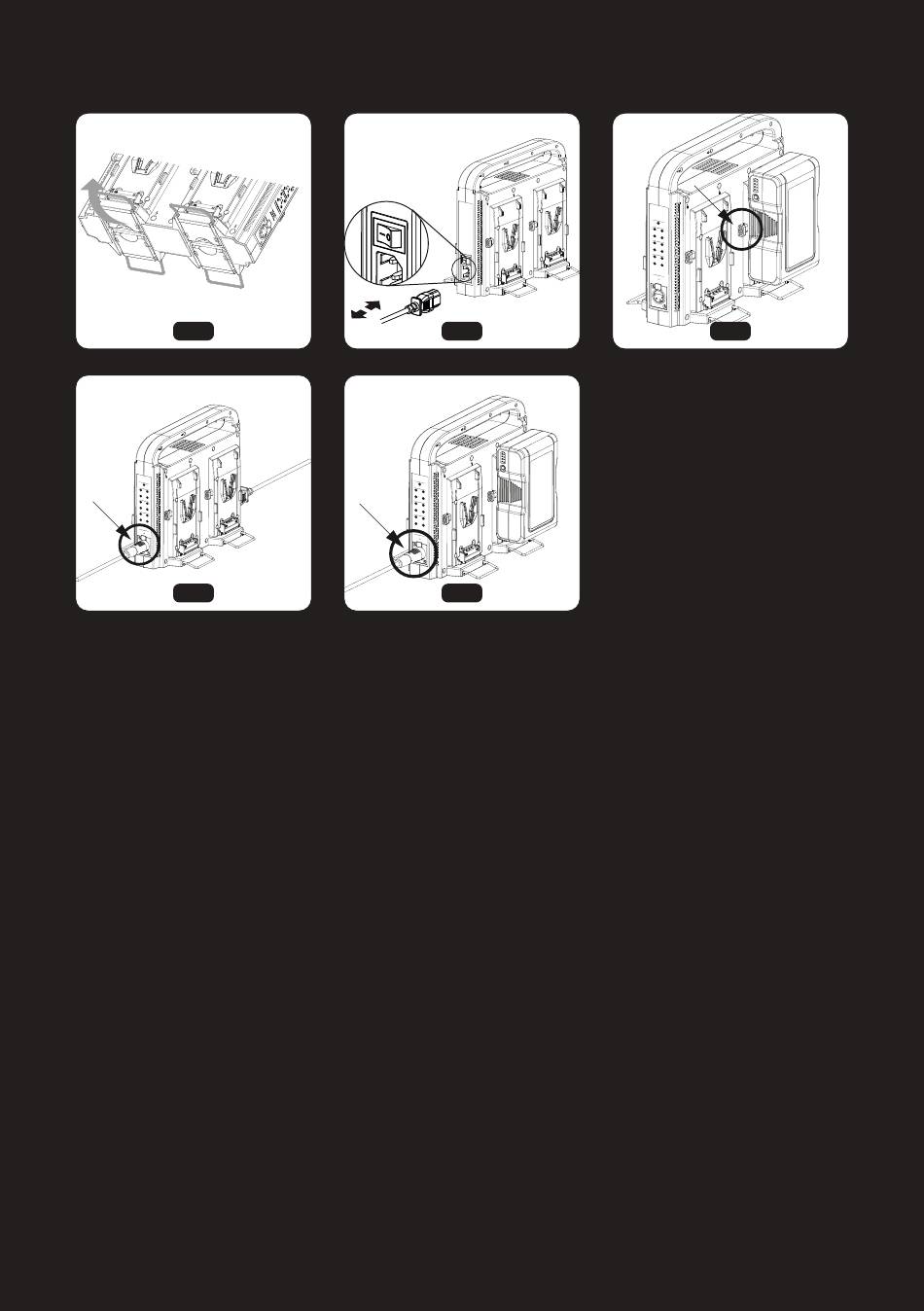

1. Fold out the stand feet until they click into place (- 1 -). Place the V-Mount 4Slot XLR Charger
securely in a well-ventilated, dry place.
2. Make sure that the V-Mount 4Slot XLR Charger is switched off, connect it to a suitable power
source and now switch it on with the power switch (- 2 -).
3. Attach the V-Mount batteries to be charged to the V-Mount 4Slot XLR Charger. The fastening
latch (- 3 -) engages. The charging process starts automatically. To remove the V-Mount batte-
ries, press the release lever and remove the battery (- 3 -).
4. ENG equipment can be powered via the XLR4P output (- 4 -).
5. If no suitable power source is available, you can still use the XLR4P output as a power source
with the V-Mount battery inserted (- 5 -).
Notes:
► The LEDs indicate the status for each individual channel (see chapter E).
► If possible, do not move the V-Mount 4Slot XLR Charger during use.
► The batteries can become very warm during the charging process. Only use the V-Mount 4Slot
XLR Charger in places where heat dissipation is guaranteed. Do not cover the V-Mount 4Slot
XLR Charger under any circumstances.
► Please be sure to observe the voltage values of the third-party devices when supplying power
via the XLR4P connection.
► Use the supplied power cable, otherwise the power supply for third-party devices via XLR4P
cannot be guaranteed.
► If external devices are supplied with power via XLR4P, the charging process of the V-mount
batteries is stopped at the V-Mount 4Slot XLR Charger.
► If the V-Mount 4Slot XLR Charger is connected to a suitable power source with the power cable
and supplies third-party devices via XLR4P, you can remove/attach V-Mount batteries. The
power supply is not stopped in the process.
- 2 -
AC POW
ER
CHA RGI
NG
L1
L2
R1
R2
ONL INE
L1
L2
R1
R2
DISC
HAR GIN
G
L1
L2
R1
R2
DC OU
TP UT
MAX
75W
(16. 5V
4.5A )
- 5 -
8
AC POW
ER
CHA RGI
NG
L1
L2
R1
R2
ONL INE
L1
L2
R1
R2
DISC
HAR GIN
G
L1
L2
R1
R2
DC OU
TP UT
MAX
75W
(16. 5V
4.5A )
- 3 -
