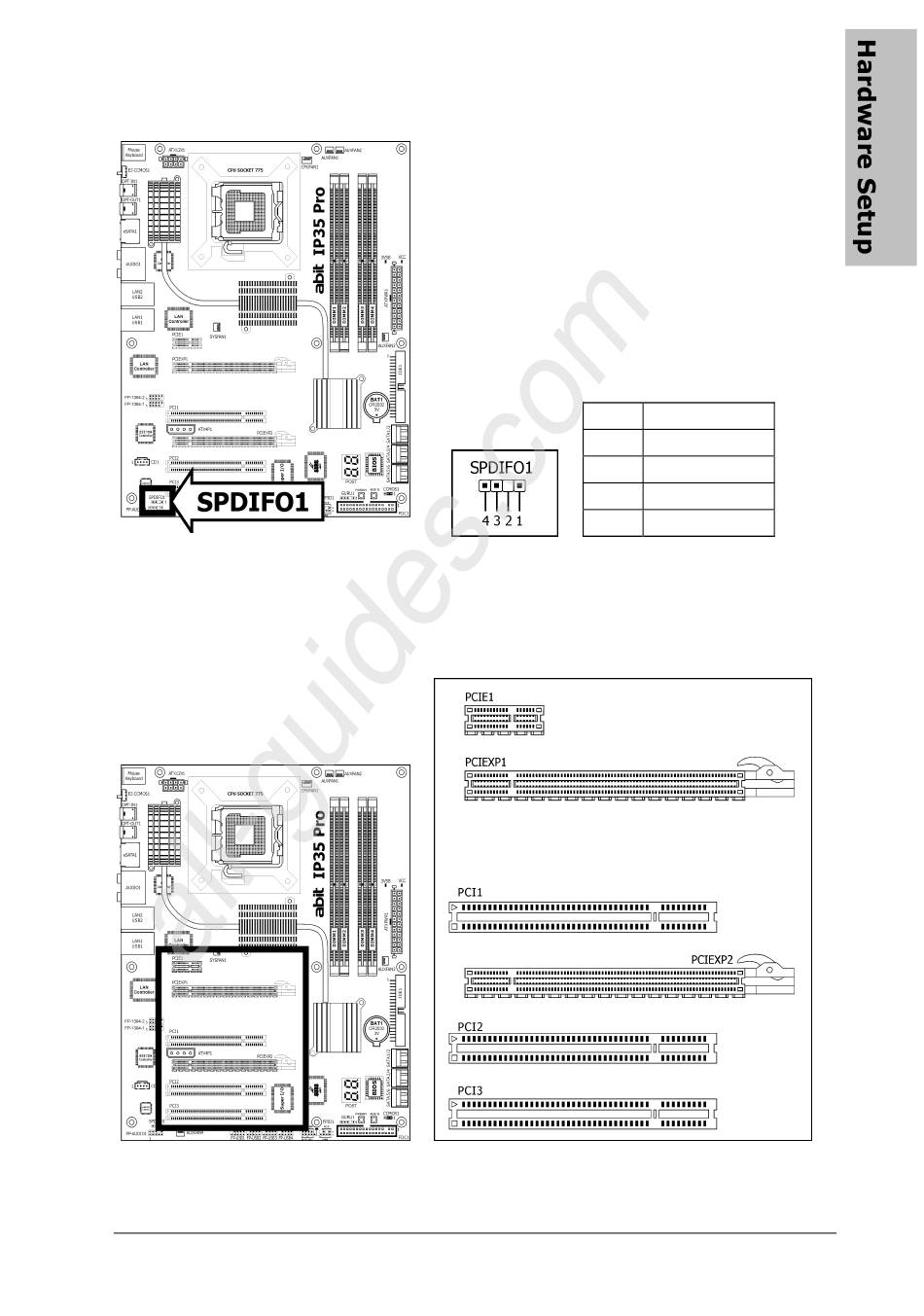

1.8.7 S/PDIF Output Connection Header
This header provides the S/PDIF output connection to your add-on HDMI VGA card.
1.8.8 PCI and PCI Express X1 Slots
Install PCI Express X1 cards into slot "PCIE1".
Install PCI cards into slots "PCI1", "PCI2", and/or "PCI3".
IP35 Pro
All manuals and user guides at all-guides.com
Pin
Pin Assignment
1
VCC (5V)
2
x
3
S/PDIF Out
4
Ground
