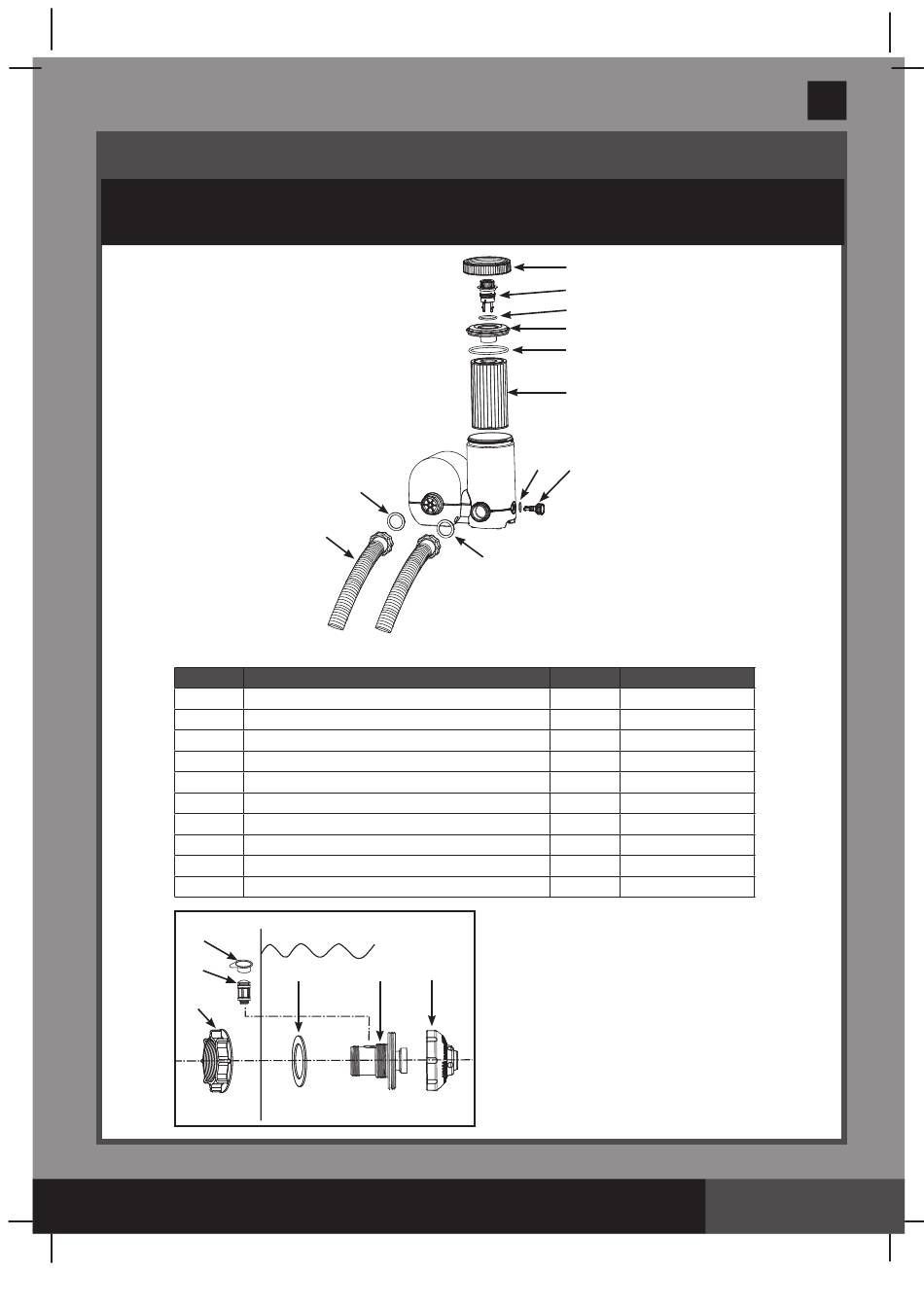

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
Type of filter medium:
Synthetic cartridge #29000
10
9
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO.
1 THREADED FILTER HOUSING COLLAR
2 FILTER GAUGE+AIR RELEASE VALVE
3 VALVE O-RING
4 FILTER HOUSING COVER
5 FILTER HOUSING O-RING
6 FILTER CARTRIDGE
7 SEDIMENT RELEASE VALVE
8 VALVE O-RING
9 PUMP HOSE WITH NUTS
10 FLAT HOSE O-RING
17
15
12
11
SAVE THESE INSTRUCTIONS
(108) MODEL FP636 FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 05/29/2024
10
DESCRIPTION
INLET
16 14
If the pump was purchased individually,
only these inlet fitting parts are included.
No tools are required for the assembly.
1
2
3
4
5
6
8
7
QTY. SPARE PART NO.
1 13412
1 13420
1 13229
1 13416
1 13417
1 29000
1 13419
1 10264
2 11010
2 13161
108
English
A
