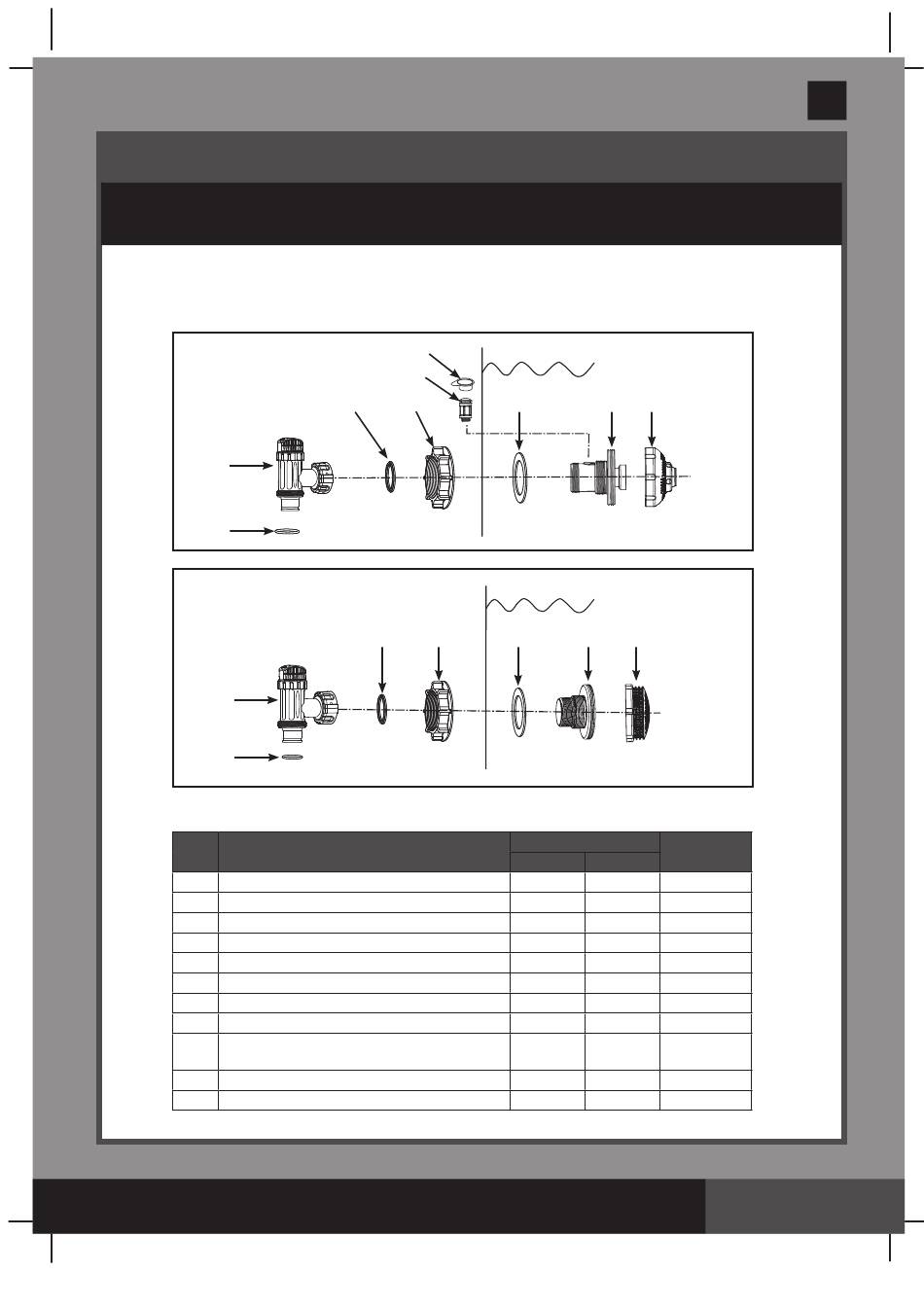

PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
If the pump was purchased as part of a pool set, below fitting parts are included.
Contact our Authorized Service Centers to order these parts if needed.
When ordering parts, be sure to quote the model number and part numbers.
INLET
19
20
OUTLET
19
20
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
DESCRIPTION
NO.
11 STRAINER NUT
12 FLAT STRAINER RUBBER WASHER
13 THREADED STRAINER CONNECTOR
14 ADJUSTABLE POOL INLET JET NOZZLE
15 AIR JET VALVE
16 INLET THREADED AIR CONNECTOR
17 AIR JET VALVE CAP
18 STRAINER GRID
PLUNGER VALVE (HOSE O-RING &
19
STEP WASHER INCLUDED)
20 HOSE O-RING
21 STEP WASHER
SAVE THESE INSTRUCTIONS
(108) MODEL FP636 FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 05/29/2024
17
15
21 11 12
21 11 12
Individually Pool Set
English
16 14
13 18
QTY.
SPARE
PART NO.
10256
1 2
10255
1 2
0 1 10744
12369
1 1
12363
1 1
12371
1 1
12373
1 1
12198
0 1
0 2 10747
0 2 10262
0 2 10745
108
